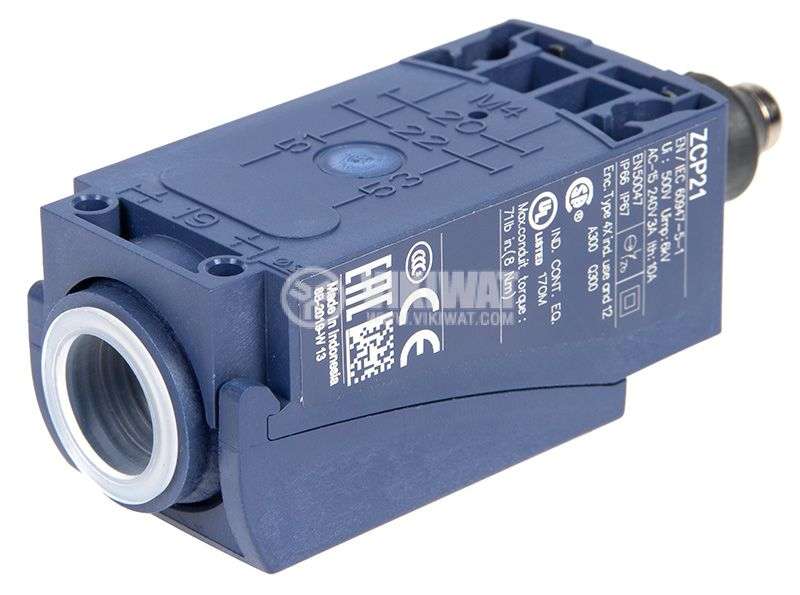

Telemecanique XCKP2111P16 Limit Switch: Industrial Mechanical Position Control
The Telemecanique XCKP2111P16 limit switch is a robust mechanical position detection device designed for industrial automation systems that require reliable contact-based switching. Built with a durable metal housing and equipped with a spring plunger actuator, this model is suitable for repetitive mechanical operations in demanding environments.
Technical Specifications of Telemecanique XCKP2111P16 Limit Switch
- Product type: Limit switch
- Body material: Metal (Zamak alloy)
- Actuator type: Spring plunger
- Contact configuration: 1 NO + 1 NC snap-action contacts
- Rated operational voltage: Up to 240 V AC
- Connection: Screw clamp terminals
- Mechanical durability: High cycle endurance
- Protection rating: IP66
- Operating temperature: -25…70 °C
The Telemecanique XCKP2111P16 limit switch ensures accurate mechanical feedback when a moving part reaches a predefined position. Its snap-action mechanism delivers precise switching performance and electrical reliability.
To maintain system-wide sensing consistency, compatible solutions can be explored within the Telemecanique sensor portfolio.
Typical Applications
- Machine end-of-travel detection
- Gate and guard position monitoring
- Industrial packaging machinery
- Material handling systems
FAQ
1) What actuator type is used?
Spring plunger actuator.
2) What contact configuration is included?
1 normally open and 1 normally closed contact.
3) Is the housing metal?
Yes, it features a durable metal body.
4) What protection rating does it offer?
IP66 rated enclosure.
5) Where is it typically used?
Industrial machinery position detection applications.
