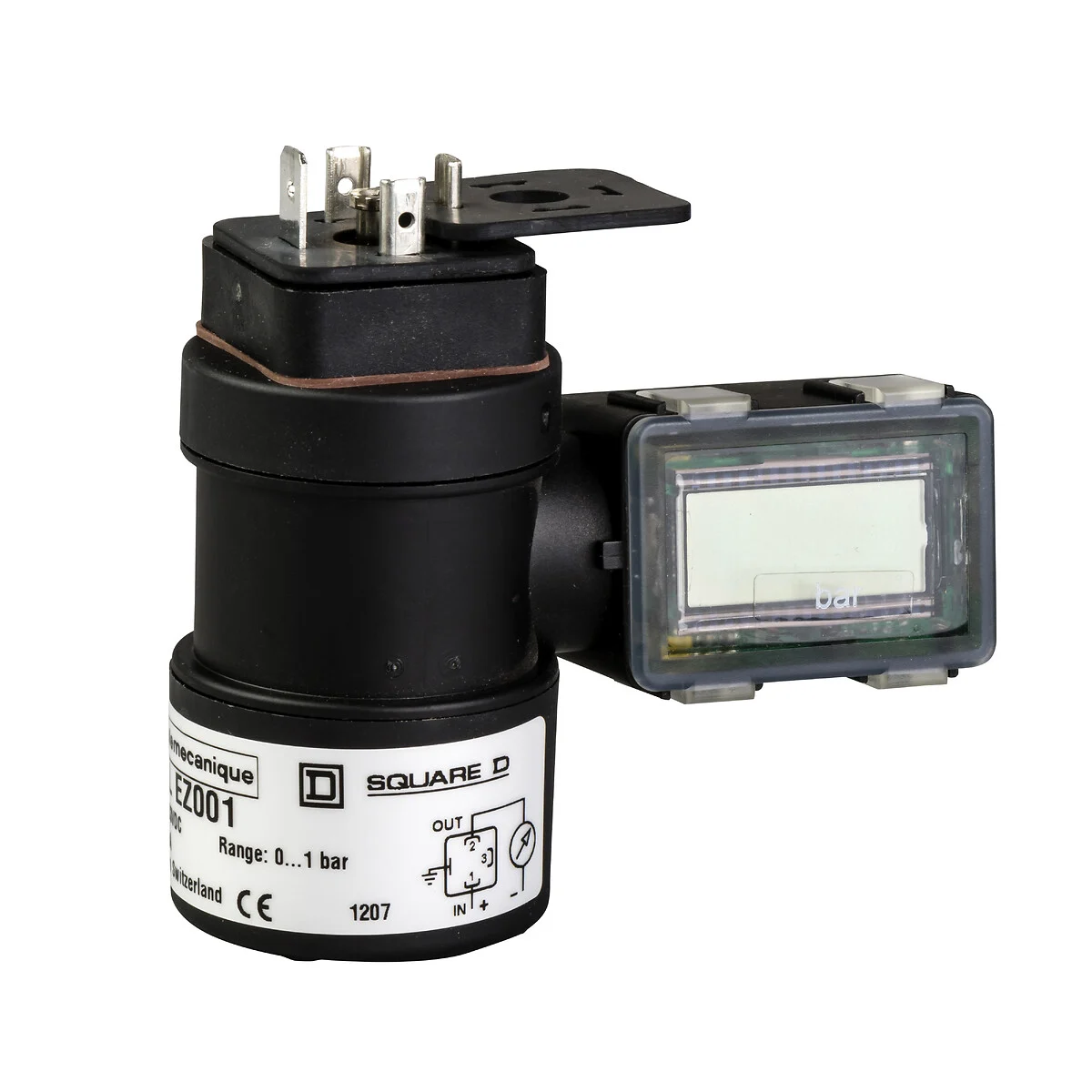

Telemecanique Sensors XMLP001GC21F-SM-01

Telemecanique Sensors XMLP001GC21F-SM-01 Pressure Transmitter: 0–1 bar 4–20 mA Measurement for Reliable Low-Pressure Monitoring

The Telemecanique Sensors XMLP001GC21F-SM-01 pressure transmitter is commonly used when a system needs accurate, continuous monitoring in a low-pressure band. In practical automation terms, the 0–1 bar class is especially relevant for applications such as low-pressure air lines, regulated zones, leak detection, or controlled utility circuits where a simple “pressure present” switch is not enough.

For procurement clarity and search intent alignment, the most reliable keyword format is: Telemecanique Sensors XMLP001GC21F-SM-01 pressure transmitter (Brand + product code + product type). High-intent variations that engineers frequently use include Telemecanique XMLP001GC21F pressure transmitter, XMLP001GC21F 4-20 mA pressure sensor, and 0–1 bar pressure transmitter G1/4A DIN.

Telemecanique Sensors XMLP001GC21F-SM-01 Verified Technical Profile

Telemecanique’s product reference page for XMLP001GC21F describes an XM series electronic pressure sensor / transmitter with:

  • Pressure class: transmitter 1 bar
  • Output: 4…20 mA
  • Process connection: G 1/4 A male
  • Sealing material: FPM
  • Connector style: DIN (DIN connector family)

These core attributes are stated directly on the manufacturer’s page.

Distributor listings for the same base reference commonly specify the 0–1 bar measurement span, 4–20 mA analogue output, and supply range (e.g., 12–24 VDC) for integration planning.

Why 4–20 mA Still Wins in Industrial Pressure Monitoring

The 4–20 mA current loop is widely used because it is resilient over long cable runs and supports fault detection. A healthy transmitter never outputs below the live-zero threshold under normal conditions, so a loop reading near 0 mA often indicates an open circuit, wiring issue, or power problem—making troubleshooting faster than with many voltage outputs.

In control systems, this enables:

  • Trend monitoring (pressure drift, slow leaks, regulator wear)
  • Predictive alarms (rate-of-change detection rather than only static limits)
  • Stable control behavior when pressure must remain within a narrow band

Telemecanique Sensors XMLP001GC21F-SM-01 Low-Pressure (0–1 bar) Use Cases Where Continuous Measurement Adds Value

  • Leak detection: small pressure decay is visible in trends before it becomes downtime.
  • Regulated zones: validate that a regulator consistently maintains the expected pressure.
  • Delicate processes: prevent overpressure in low-rated fixtures or sensitive pneumatic tooling.

Installation Guidance: Accuracy is a System Outcome

Even a high-quality pressure transmitter can deliver poor results if installed without instrumentation discipline:

  • Mount close to the “truth point”: measure where pressure represents the actual process, not downstream of restrictions that distort readings.
  • Control pulsation: compressors and pumps can create spikes; use snubbers/damping if required.
  • Protect the loop: route analogue wiring away from VFD/motor cables and apply consistent grounding practice.
  • Document scaling: ensure the PLC scaling (0–1 bar mapped to 4–20 mA) is recorded in code comments and maintenance notes.

Required internal link: Telemecanique sensor.

FAQ: Telemecanique Sensors XMLP001GC21F-SM-01

Is XMLP001GC21F-SM-01 a pressure switch or a transmitter?

The base reference XMLP001GC21F is listed as an electronic pressure sensor / transmitter with analogue output.

What output signal does it use?

It uses a 4…20 mA analogue output.

What is the process connection?

The manufacturer lists a G 1/4 A male connection.

What does “-SM-01” mean?

It is often a distributor/ERP suffix (packaging or channel variant). For technical parameters, confirm it maps to the base reference (XMLP001GC21F) on the supplier datasheet before ordering.
