Omron Z-15GW2255-B Limit Switch: Technical Guide, Applications and Installation
Picking the right component for a control panel takes more than scanning a catalogue. The Omron Z-15GW2255-B is a Limit Switch that has earned its place on the shortlist of engineers who value long service life over a bargain price — particularly in conveyor and transport system position detection applications.
Omron’s strength lies in offering complete automation subsystems rather than isolated components. The Omron Sensor lineup complements the relay and switch range by providing the detection layer, so the entire signal chain — from physical event to control output — stays within one trusted supplier.
What Is the Omron Z-15GW2255-B Limit Switch?

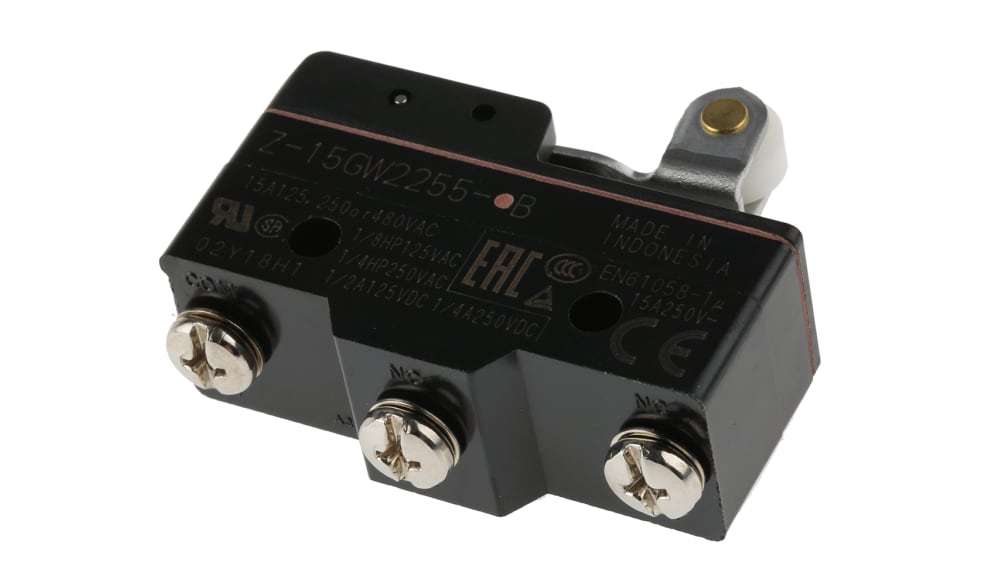

The Omron Z-15GW2255-B is a Limit Switch, built to handle conveyor and transport system position detection reliably over a long service life. Key engineering features include medium lever, ip67, and the unit mounts via screw mount.
What separates this unit from generic alternatives is in the details: medium lever, ip67. making it straightforward to match to existing control voltage buses without additional transformers or converters.
Technical Specifications
The table below summarises the main technical parameters of the Omron Z-15GW2255-B. For full specifications, always refer to the official Omron product datasheet, as application-specific derating may apply.
| Parameter | Value |
|---|---|
| Product Type | Limit Switch |
| Contacts / Channels | SPDT |
| Contact Current | 15 A |
| Key Features | Medium lever, IP67 |
| Mounting | Screw mount |
| Mechanical Lifetime | 30 million mechanical operations |
| Operating Temperature | -25 °C to +80 °C |
Where Is It Used?
The Omron Z-15GW2255-B Limit Switch is commonly specified for the following applications:
- Conveyor and transport system position detection
Across these use cases, the consistent thread is a need for dependable switching over a large number of operations, often in environments where an unplanned fault would create significant disruption. The Omron Z-15GW2255-B is designed with exactly those conditions in mind.
Installation Notes
The Omron Z-15GW2255-B Limit Switch follows standard DIN rail mounting practice. Before inserting the unit into its socket or fixing it to the rail, always verify the circuit is fully de-energised. Check that cable cross-sections are appropriate for the load, and after commissioning, mark the panel clearly with the device type and rated voltage for future maintenance reference.
For ongoing maintenance, periodically inspect for contact discolouration, check terminal screws for loosening, and look for any signs of heat stress on the housing. Catching these early avoids the much larger cost of an unplanned production stop.
Why Choose the Omron Z-15GW2255-B?
The case for choosing the Omron Z-15GW2255-B Limit Switch is not built on marketing alone. It rests on measurable factors: documented mechanical and electrical lifespan ratings, certifications that satisfy CE and UL requirements, and a global spare parts network that means you can source a replacement quickly when a unit eventually reaches end of life.
