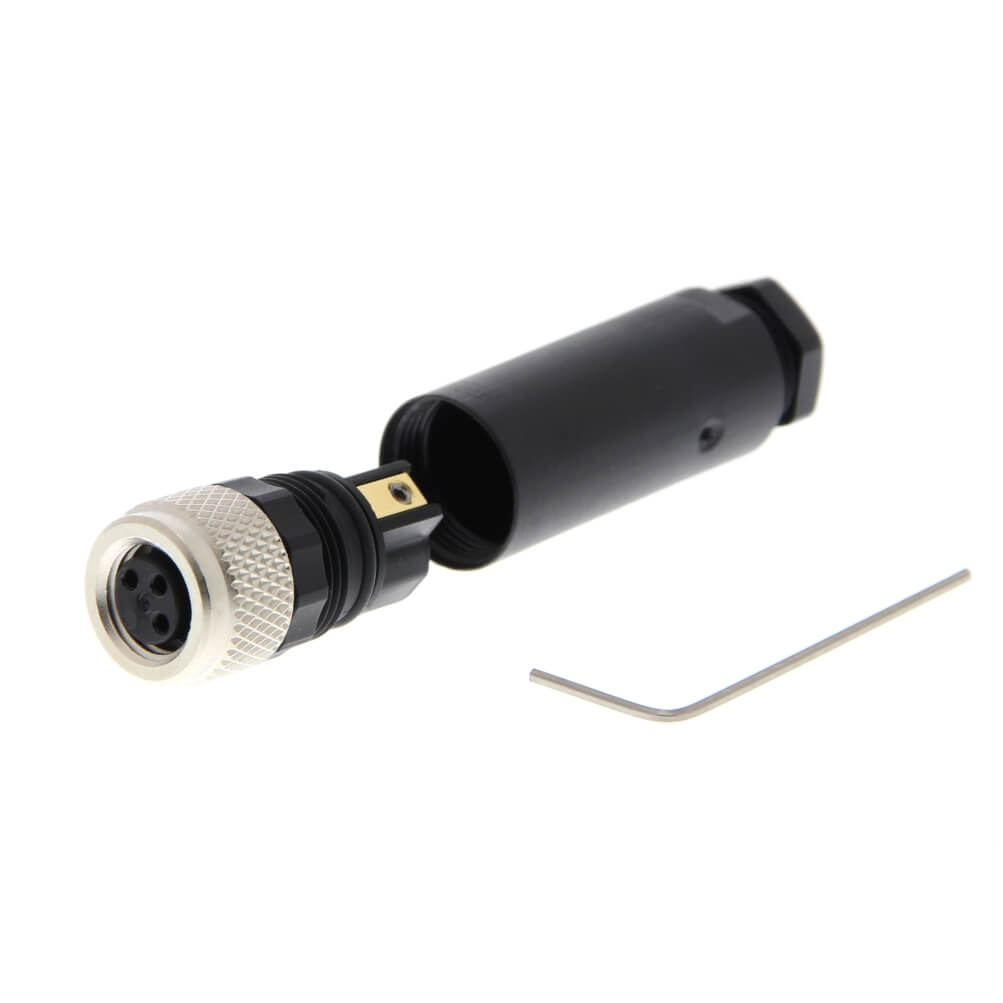

Omron Y92E-M08PVC3Sconf-L Field Assembly Connector
| Specification | Value |
|---|---|
| Product Type | Field Assembly Connector |
| Series | Y92E |
| Connector Type | M8 Straight Female Socket |
| Number of Contacts | 3 Pins |
| Connection Method | Screw Terminal |
| Compatible Cable Diameter | 3.5 to 5 mm |
| Rated Voltage | 36 VDC |
| Rated Current | 4 A |
| Protection Rating | IP67 (when mated) |
| Operating Temperature | -25°C to +70°C |
| Contact Plating | Gold |
| Nut Material | Polyester |
The Omron Y92E-M08PVC3Sconf-L Field Assembly Connector is a field-wireable M8 female connector developed for industrial sensor installations that require flexible cable preparation on-site. Instead of relying on pre-molded cable assemblies, maintenance personnel and machine builders can terminate cables directly inside the connector using a screw terminal connection. This approach simplifies installation in customized automation projects while maintaining compatibility with standard M8 sensor interfaces. The connector specifications are defined by Omron for three-pole sensor applications using cables with an outer diameter between 3.5 mm and 5 mm. :contentReference[oaicite:0]{index=0}
Technical Description
The Omron Y92E-M08PVC3Sconf-L Field Assembly Connector incorporates a straight M8 female socket with three electrical contacts. Internal screw terminals allow individual conductors to be securely fastened without specialized crimping equipment. Gold-plated contacts help maintain stable electrical conductivity, while the connector housing is designed for industrial automation environments where reliable sensor connectivity is required. When properly assembled with a suitable cable, the connector provides an IP67 protection rating.
Operating Principle
Each conductor is inserted into the corresponding screw terminal and mechanically secured. Once the connector housing is assembled and the cable gland is tightened, the connector establishes electrical continuity between the field cable and compatible M8 sensor equipment. The threaded locking mechanism minimizes the possibility of accidental disconnection caused by machine vibration.
Typical Applications
- Industrial proximity sensors
- Photoelectric sensor installations
- Position detection systems
- Machine control panels
- Assembly equipment
- Packaging machinery
- Material handling systems
- Factory automation projects
Industrial Applications
The connector is frequently selected for machine construction projects where cable lengths are determined during installation rather than during equipment manufacturing. Maintenance engineers can also replace damaged connectors without replacing the complete cable assembly, reducing downtime and simplifying field repairs.
Typical industries include automotive manufacturing, logistics automation, food processing equipment, electronics production, machine tool construction, and process automation systems requiring standardized M8 sensor interfaces.
Advantages
- Field-wireable connector for customized cable preparation
- Standard M8 straight female interface
- Three-pin industrial configuration
- Screw terminal wiring simplifies installation
- Supports cable diameters from 3.5 mm to 5 mm
- IP67 protection when properly assembled
- Gold-plated contacts improve electrical reliability
- Suitable for maintenance and retrofit applications
Omron Y92E-M08PVC3Sconf-L Industry Examples
Special Machine Manufacturing
The Omron Y92E-M08PVC3Sconf-L Field Assembly Connector enables machine builders to prepare sensor cables according to individual machine layouts without depending on fixed cable lengths.
Conveyor Automation
Maintenance teams can replace damaged sensor connectors while retaining existing field wiring, reducing replacement costs.
Packaging Equipment
Sensor wiring can be adapted during equipment commissioning when routing changes become necessary.
Robotic Cells
Custom cable preparation allows sensor connections to match robotic arm movement and cable management systems.
Omron Y92E-M08PVC3Sconf-L Selection Considerations
Before selecting a field assembly connector, verify connector gender, pin configuration, rated voltage, current capacity, and acceptable cable diameter. The selected cable should comply with the connector’s sealing requirements to achieve the specified IP67 protection level.
It is also important to confirm compatibility with the connected sensor or controller to ensure proper pin assignment and electrical performance.
Additional Omron sensor products are available for applications requiring alternative connector styles, pre-assembled cable sets, or different contact configurations.
Frequently Asked Questions
What is the main purpose of this connector?
It allows technicians to assemble M8 sensor connectors directly onto field cables using screw terminals.
How many contacts are available?
The connector provides three electrical contacts.
Which cable diameters are supported?
Cables with an outside diameter between 3.5 mm and 5 mm can be used.
What is the connection method?
The connector uses screw terminal connections for conductor termination.
What is the rated voltage?
The connector is rated for 36 VDC according to the manufacturer specifications.
What is the rated current?
The maximum rated current is 4 A.
Does the connector provide environmental protection?
Yes. When correctly assembled and connected, it provides IP67 protection.
Where is the Omron Y92E-M08PVC3Sconf-L Field Assembly Connector commonly used?
It is widely used in industrial automation systems that employ M8-connected sensors, including packaging machines, conveyors, robotic equipment, and factory automation installations.
