Omron XS5W-T421-KM1-KR Robotic Industrial Ethernet Cable

The Omron XS5W-T421-KM1-KR Robotic Industrial Ethernet Cable is designed for Industrial Ethernet communication in applications involving continuous cable movement. Unlike standard fixed-installation Ethernet cables, this robotic version is engineered for dynamic environments where repetitive flexing and machine motion are part of normal operation. The combination of Category 5e transmission performance, SF/UTP shielding, and M12 Smartclick connectors supports dependable communication between automation devices operating under mechanical stress. :contentReference[oaicite:0]{index=0}

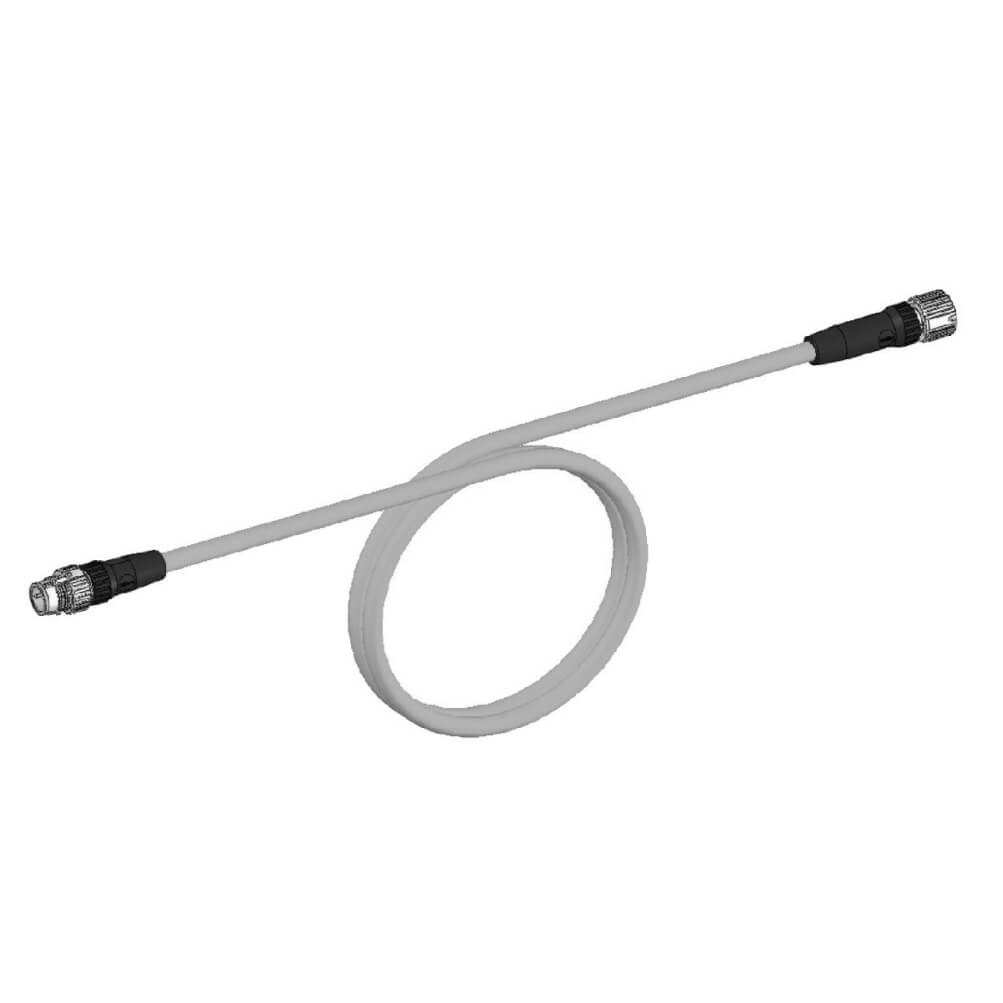

The Omron XS5W-T421-KM1-KR Robotic Industrial Ethernet Cable provides a 15-meter connection between compatible Industrial Ethernet devices using a straight M12 Smartclick plug and a straight M12 Smartclick socket. It is intended for moving equipment where cable durability is an important design consideration.

Technical Description

This model belongs to the Omron XS5 Industrial Ethernet cable family and supports Category 5e communication networks. The cable uses an SF/UTP shielded construction that helps reduce electromagnetic interference while maintaining stable Ethernet communication in factory automation systems. The PVC outer sheath protects the cable during industrial operation, while the robotic construction allows repeated movement without using a standard fixed-installation cable.

Working Principle

The cable transfers Ethernet communication signals between industrial controllers, remote I/O systems, industrial switches, servo controllers, HMIs, and other Ethernet-enabled automation devices. The Smartclick connector mechanism enables quick installation while maintaining secure mechanical engagement. During machine movement, the robotic cable construction helps withstand repeated bending cycles that occur in automated equipment.

Typical Application Areas

• Industrial robots
• Robotic welding cells
• Pick-and-place systems
• Cartesian robot applications
• Automated handling equipment
• Moving machine assemblies
• Flexible manufacturing systems
• Dynamic Industrial Ethernet networks

Industrial Applications

Robotic Manufacturing

Industrial robots continuously move during production cycles. Ethernet communication between controllers and robotic equipment requires cables specifically designed for repeated flexing rather than stationary routing.

Automotive Production

Robot-intensive manufacturing lines frequently utilize dynamic Ethernet connections for machine communication, vision systems, and synchronized motion control.

Material Handling Equipment

Automated transfer systems with moving axes can benefit from robotic Ethernet cables that accommodate continuous machine travel while maintaining communication stability.

Machine Automation

Motion platforms, indexing systems, and automated manipulators often require Industrial Ethernet connections capable of operating under dynamic mechanical conditions.

Advantages

• Designed for robotic motion applications
• Category 5e Industrial Ethernet performance
• SF/UTP shielding for improved noise resistance
• M12 Smartclick connector technology
• 15-meter cable length
• PVC protective outer sheath
• Blue jacket for Industrial Ethernet identification
• Supports moving automation equipment

Additional Industrial Ethernet connectivity solutions are available within the Omron sensor product range.

Selection Considerations

Engineers should evaluate whether the installation involves stationary or dynamic cable routing before selecting an Ethernet cable. The Omron XS5W-T421-KM1-KR Robotic Industrial Ethernet Cable is intended for applications where continuous movement occurs. Connector compatibility, required cable length, shielding requirements, and machine bending conditions should all be verified during system design. Using a robotic cable in dynamic applications can help ensure consistent communication throughout repeated machine cycles.

Frequently Asked Questions

1. What distinguishes this model from the standard KM1 version?

The KR version is specified for robotic applications involving continuous cable movement.

2. Which Ethernet category does it support?

It is a Category 5e Industrial Ethernet cable.

3. What connectors are installed?

One M12 Smartclick straight plug and one M12 Smartclick straight socket.

4. What is the cable length?

The cable length is 15 meters.

5. Is the cable shielded?

Yes. It uses an SF/UTP shielded construction.

6. Where is this cable commonly used?

Typical applications include robotic systems, automated machinery, motion platforms, and dynamic Industrial Ethernet installations.

7. What is the cable jacket material?

The outer sheath is manufactured from PVC.

8. Why select the Omron XS5W-T421-KM1-KR Robotic Industrial Ethernet Cable?

The Omron XS5W-T421-KM1-KR Robotic Industrial Ethernet Cable is designed for Industrial Ethernet communication in moving automation equipment where repeated flexing occurs while maintaining Category 5e communication performance.
