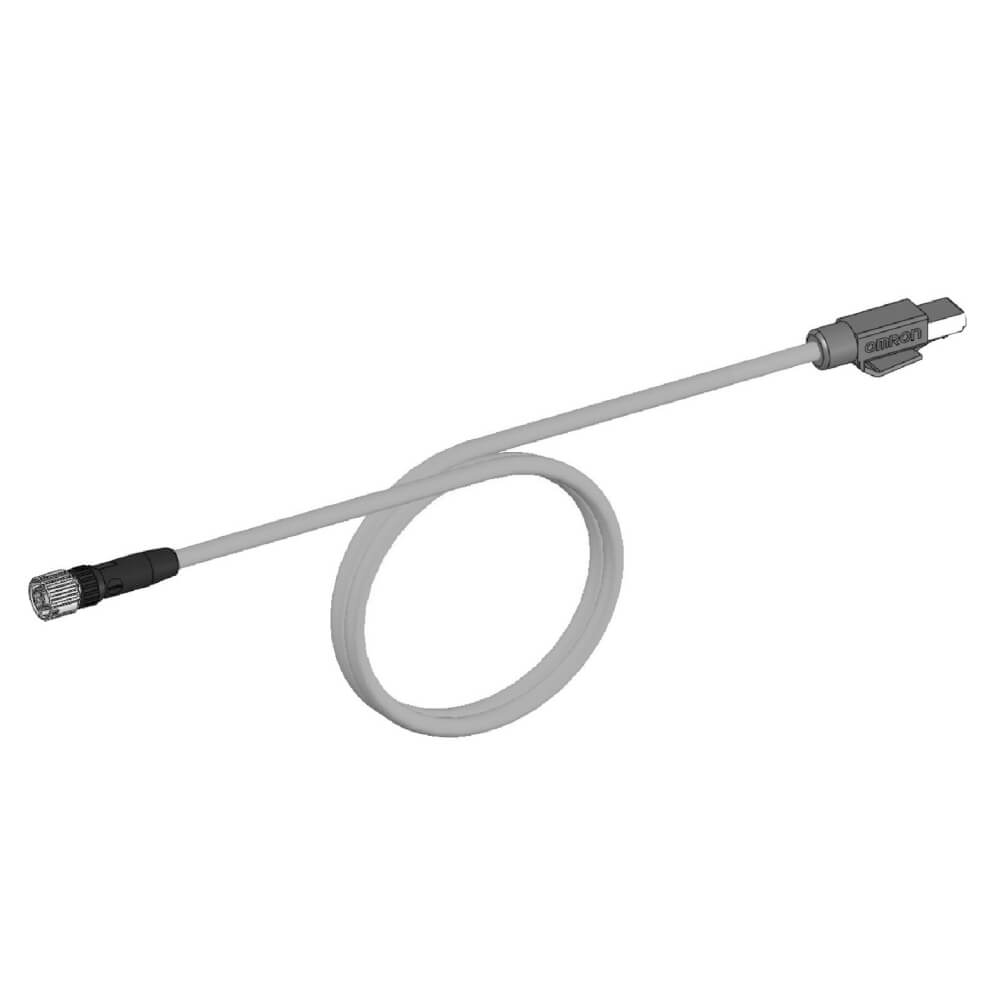

Omron XS5W-T421-JME-K EtherCAT Cable

The Omron XS5W-T421-JME-K EtherCAT Cable is designed for Industrial Ethernet communication where equipment requires an M12 Smartclick connector on one end and an upward RJ45 connector on the other. This connector arrangement is particularly useful in installations where cable routing must follow a vertical path immediately after connection. Built for EtherCAT communication networks, the cable supports Category 5e performance and incorporates SF/UTP shielding to improve signal reliability in electrically demanding industrial environments. According to the manufacturer’s specifications, the cable is supplied with a 10-meter length and a durable PVC outer jacket.

Technical Description

The Omron XS5W-T421-JME-K EtherCAT Cable enables communication between industrial Ethernet devices such as programmable logic controllers, servo drives, industrial switches, distributed I/O stations, motion controllers, and industrial PCs. Its upward RJ45 connector helps simplify cable management inside compact control cabinets where conventional straight connectors may create unnecessary cable bending.

The cable is manufactured using Category 5e twisted-pair conductors with SF/UTP shielding. This construction minimizes the influence of electromagnetic interference generated by high-power motors, inverters, welding equipment, and switching devices, supporting dependable industrial Ethernet communication.

Working Principle

EtherCAT technology exchanges real-time communication frames through Industrial Ethernet infrastructure. The Omron XS5W-T421-JME-K EtherCAT Cable transfers these digital signals between field devices and network controllers while preserving communication quality through shielded twisted-pair conductors.

The M12 Smartclick connector provides secure field-level connectivity, while the upward RJ45 connector offers a practical solution for equipment requiring vertical cable exit. This configuration helps optimize cable routing without altering network performance.

Typical Applications

• Industrial EtherCAT communication networks
• PLC communication systems
• Servo drive installations
• Industrial control cabinets
• Machine automation equipment
• Distributed I/O networks
• Industrial Ethernet infrastructure
• Motion control applications

Industrial Applications

The Omron XS5W-T421-JME-K EtherCAT Cable is suitable for manufacturing facilities where dependable Industrial Ethernet communication is required between controllers and field devices. The upward RJ45 connector is especially beneficial in machines where network cables are routed vertically through cable ducts or overhead wiring channels.

Typical industrial sectors include:

• Automotive manufacturing
• Packaging machinery
• Food and beverage processing
• Electronics production
• Machine tool manufacturing
• Warehouse automation
• Material handling systems
• Assembly automation

Advantages

• Category 5e Industrial Ethernet performance
• Upward RJ45 connector for optimized cable routing
• M12 Smartclick connector for secure installation
• SF/UTP shielding improves resistance to electromagnetic interference
• 10-meter cable length supports flexible installation layouts
• PVC outer sheath designed for industrial environments
• Compatible with EtherCAT communication systems

Selection Considerations

When selecting an Industrial Ethernet cable, verify connector orientation, available installation space, cable routing direction, communication protocol, shielding requirements, and environmental conditions. An upward RJ45 connector is particularly advantageous when cables must immediately enter vertical cable trays or cabinet ducts after connection.

For additional Industrial Ethernet connectivity options, visit the Omron sensor product portfolio.

Integration Within Automation Systems

The Omron XS5W-T421-JME-K EtherCAT Cable is commonly integrated with programmable logic controllers, industrial Ethernet switches, distributed I/O modules, industrial PCs, servo amplifiers, HMI terminals, and motion controllers. Proper cable routing, grounding, and separation from power wiring contribute to maintaining reliable communication performance throughout the automation system.

By incorporating the Omron XS5W-T421-JME-K EtherCAT Cable into compatible EtherCAT infrastructures, engineers can establish organized network connections while accommodating installation layouts that require upward cable exit from Ethernet interfaces.

Frequently Asked Questions

1. What is the primary function of the Omron XS5W-T421-JME-K EtherCAT Cable?

It provides Industrial Ethernet communication between devices equipped with M12 and RJ45 interfaces in EtherCAT-based automation systems.

2. Why does this model use an upward RJ45 connector?

The upward connector orientation simplifies vertical cable routing in compact control cabinets and machinery.

3. Which Ethernet category does the cable support?

The cable is specified as Category 5e.

4. Is the cable shielded?

Yes. It uses an SF/UTP shielded construction to reduce electromagnetic interference.

5. What is the standard cable length?

The manufacturer specifies a cable length of 10 meters.

6. Which automation devices typically use this cable?

Typical devices include PLCs, industrial switches, servo drives, industrial PCs, distributed I/O stations, and motion controllers.

7. Can this cable be installed inside industrial control cabinets?

Yes. Its connector configuration is suitable for organized cabinet wiring and industrial Ethernet infrastructure.

8. Why should connector orientation be considered during cable selection?

Selecting the appropriate connector orientation improves cable routing, minimizes mechanical stress, and helps maintain an organized installation.
