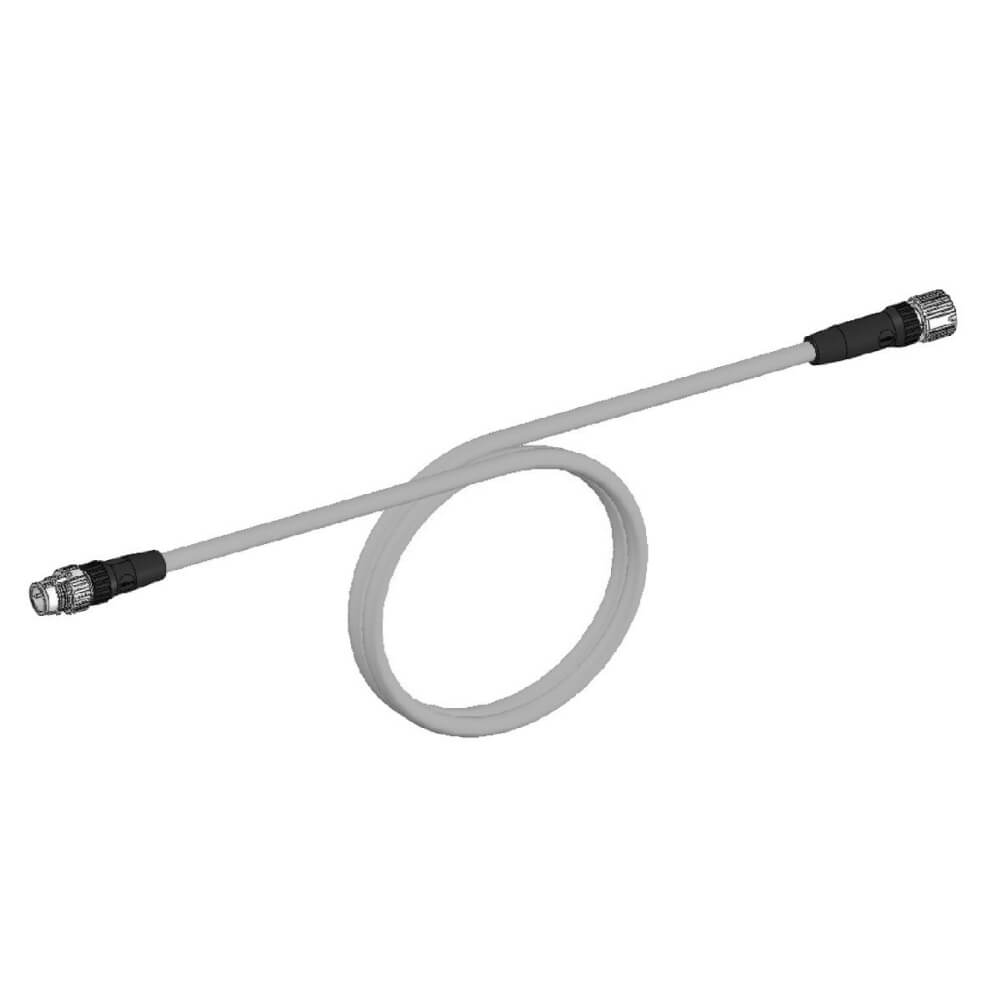

Omron XS5W-T421-DM1-KR Industrial Ethernet Cable

The Omron XS5W-T421-DM1-KR Industrial Ethernet Cable is developed for Ethernet communication in industrial automation systems where mechanical movement and electrical interference are common operating conditions. As part of the XS5W cable family, this model combines Cat5e transmission performance with a robot-compatible cable structure, making it suitable for dynamic automation equipment. Its shielded construction supports reliable network communication between industrial devices while the 3-meter length provides additional installation flexibility for larger machinery and production cells.

Technical Description

The cable is equipped with straight RJ45 connectors at both ends and is manufactured according to Cat5e communication requirements. Its SF/UTP shielding helps minimize electromagnetic interference generated by industrial equipment such as servo amplifiers, frequency converters, switching power supplies, and electric motors. The PVC outer jacket provides mechanical protection while maintaining sufficient flexibility for routing inside industrial machinery.

The Omron XS5W-T421-DM1-KR Industrial Ethernet Cable is specified for robotic applications where repeated cable movement is expected during normal machine operation. The robot-compatible construction contributes to maintaining communication stability throughout continuous production cycles.

Working Principle

Industrial Ethernet signals are transmitted through four balanced twisted conductor pairs that comply with Cat5e specifications. The SF/UTP shield structure reduces external electromagnetic noise before it affects signal quality, helping maintain stable communication between connected automation devices.

The standardized RJ45 connectors allow straightforward installation into Ethernet-enabled PLCs, industrial switches, HMIs, industrial computers, motion controllers, and other compatible networking equipment.

Typical Applications

• Industrial Ethernet communication systems
• Robot controller networking
• PLC communication
• Industrial switch connections
• Motion control systems
• Vision inspection equipment
• Machine automation networks
• Production line communication infrastructure

Industrial Applications

The Omron XS5W-T421-DM1-KR Industrial Ethernet Cable is commonly integrated into robotic manufacturing systems where continuous movement requires communication cables designed for dynamic applications. It is also suitable for packaging machinery, automated assembly lines, material handling equipment, conveyor systems, and industrial inspection stations.

In production facilities with electrically noisy environments, the shielded cable construction supports dependable Ethernet communication between distributed automation components. The 3-meter length offers convenient routing when communication devices are installed across larger machine frames or separate control compartments.

Advantages

• Cat5e Industrial Ethernet communication
• Robot-compatible cable construction
• SF/UTP shielding against electromagnetic interference
• Straight RJ45 connectors
• 3-meter cable length for flexible routing
• PVC outer jacket for industrial environments
• Suitable for dynamic machine applications
• Compatible with standard Industrial Ethernet equipment

Industry Examples

Robotic Welding Cells

The cable connects robot controllers, industrial switches, and programmable controllers while accommodating repetitive robotic movement.

Automated Packaging Facilities

Supports Ethernet communication between packaging machines, operator interfaces, and centralized control systems.

Pharmaceutical Manufacturing

Used for communication between inspection equipment, machine controllers, and industrial computers operating within automated production environments.

Automated Distribution Centers

Provides reliable networking for conveyor controls, sorting equipment, and warehouse automation systems that exchange operational data continuously.

Considerations Before Selecting the Product

When selecting an industrial Ethernet cable, engineers should verify connector configuration, required cable length, shielding requirements, installation environment, and whether the application includes continuous cable movement. The Omron XS5W-T421-DM1-KR Industrial Ethernet Cable is intended for installations requiring straight RJ45 connectivity together with a cable construction suitable for robotic motion.

Additional industrial networking and connectivity solutions are available through Omron sensor products.

Omron XS5W-T421-DM1-KR Frequently Asked Questions

What is the cable length?

The cable has an overall length of 3 meters.

Does this model support robotic applications?

Yes. According to the manufacturer’s specifications, it is suitable for robotics applications.

Which Ethernet standard does it support?

The cable is manufactured according to Cat5e specifications.

What shielding configuration is used?

The cable features an SF/UTP shielded construction to help reduce electromagnetic interference.

Which connector type is installed?

Straight RJ45 connectors are fitted at both cable ends.

Where is this cable typically installed?

Typical installations include robotic systems, PLC panels, industrial switches, machine controllers, and Ethernet-enabled automation equipment.

What material is used for the outer jacket?

The cable uses a durable PVC outer sheath designed for industrial environments.

What should be verified before installation?

Confirm connector compatibility, cable routing, required length, bending radius, and environmental conditions to ensure proper operation.
