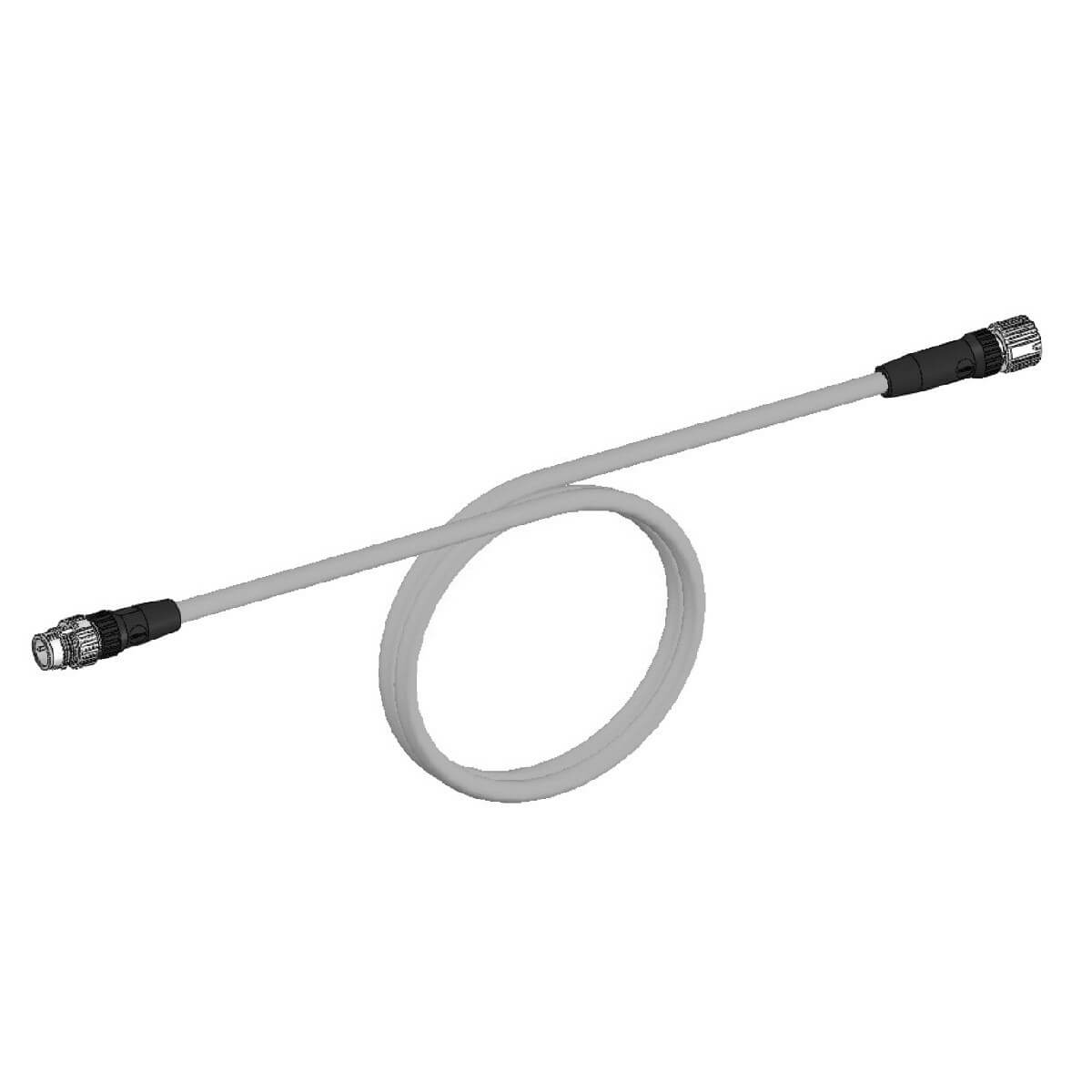

Omron XS5W-T421-BM1-KR Industrial Ethernet Cable

Industrial automation systems often require network cables that can be installed efficiently in confined spaces without placing excessive stress on connectors. The Omron XS5W-T421-BM1-KR Industrial Ethernet Cable addresses this requirement by combining a right-angle M12 Smartclick connector with a straight RJ45 connector. This configuration simplifies cable routing in compact equipment while maintaining reliable Ethernet communication between industrial devices.

Technical Description

The Omron XS5W-T421-BM1-KR Industrial Ethernet Cable is a Cat5e shielded communication cable developed for Industrial Ethernet applications. Its SF/UTP construction helps reduce electromagnetic interference, while the PVC outer jacket provides mechanical protection for fixed industrial installations.

A distinguishing characteristic of this model is the right-angle M12 Smartclick connector. This design allows cable routing parallel to equipment surfaces, making it suitable where rear clearance is limited or where a straight connector would interfere with adjacent components.

Working Principle

The cable transfers Ethernet communication signals between compatible automation devices through four twisted copper pairs that comply with Cat5e specifications. Shielding minimizes the influence of electromagnetic noise generated by nearby industrial equipment, supporting reliable communication between controllers, switches, and field devices.

The Smartclick locking mechanism secures the M12 connection without requiring complex installation procedures, helping maintain communication integrity in applications exposed to vibration.

Typical Applications

• Industrial Ethernet communication networks
• Machine automation systems
• Compact electrical control cabinets
• PLC communication
• Industrial Ethernet switches
• Remote I/O stations
• Industrial HMI connections
• Factory automation infrastructure

Industrial Application Examples

Compact Machine Designs

Equipment with limited installation depth benefits from right-angle connectors that reduce cable bending while allowing communication cables to follow organized routing paths.

Robotic Workstations

Automation cells frequently integrate controllers, vision equipment, and communication modules within compact enclosures. Right-angle connector designs help optimize cable management while maintaining dependable Ethernet connectivity.

Control Cabinet Engineering

Industrial panel builders often use angled M12 connectors to improve accessibility and reduce mechanical stress on cables installed near cabinet doors, mounting plates, or adjacent equipment.

Advantages

• Cat5e Industrial Ethernet performance
• Right-angle M12 Smartclick connector for space-saving installation
• Straight RJ45 connector for standard Ethernet equipment
• SF/UTP shielding to reduce electromagnetic interference
• One-meter cable length for flexible routing
• PVC outer jacket for industrial applications
• Suitable for organized cable management
• Supports reliable communication in automation systems

Considerations When Selecting the Product

Connector orientation is an important factor when planning industrial Ethernet installations. A right-angle connector can simplify installation where available space is limited or where cable routing requires a low-profile connection.

The Omron XS5W-T421-BM1-KR Industrial Ethernet Cable is intended for applications requiring a one-meter Cat5e shielded cable with a right-angle M12 Smartclick connector and a straight RJ45 connector. Selecting the correct connector orientation can improve cable organization and reduce mechanical strain over long-term operation.

For additional industrial connectivity options, visit Omron sensor series.

Frequently Asked Questions

1. What makes this model different from the BM1-K version?

This model uses a right-angle M12 Smartclick connector instead of a straight M12 connector, making it suitable for installations with restricted space.

2. What is the cable length?

The cable has a nominal length of 1 meter.

3. Is the cable suitable for Industrial Ethernet?

Yes. It is manufactured as a Cat5e industrial Ethernet cable for automation networks.

4. Does the cable include shielding?

Yes. Its SF/UTP shielded construction helps reduce electromagnetic interference in industrial environments.

5. Which devices can be connected?

It is commonly used with PLCs, industrial switches, HMIs, communication gateways, and field devices equipped with compatible Ethernet interfaces.

6. Why choose a right-angle M12 connector?

A right-angle connector simplifies installation where clearance behind equipment is limited and helps reduce cable bending.

7. What environmental conditions is it designed for?

The cable is specified for operation between -25°C and +70°C in fixed industrial installations.

8. Where is this cable typically installed?

Typical applications include machine control panels, factory automation systems, compact production equipment, industrial communication cabinets, and distributed control architectures.
