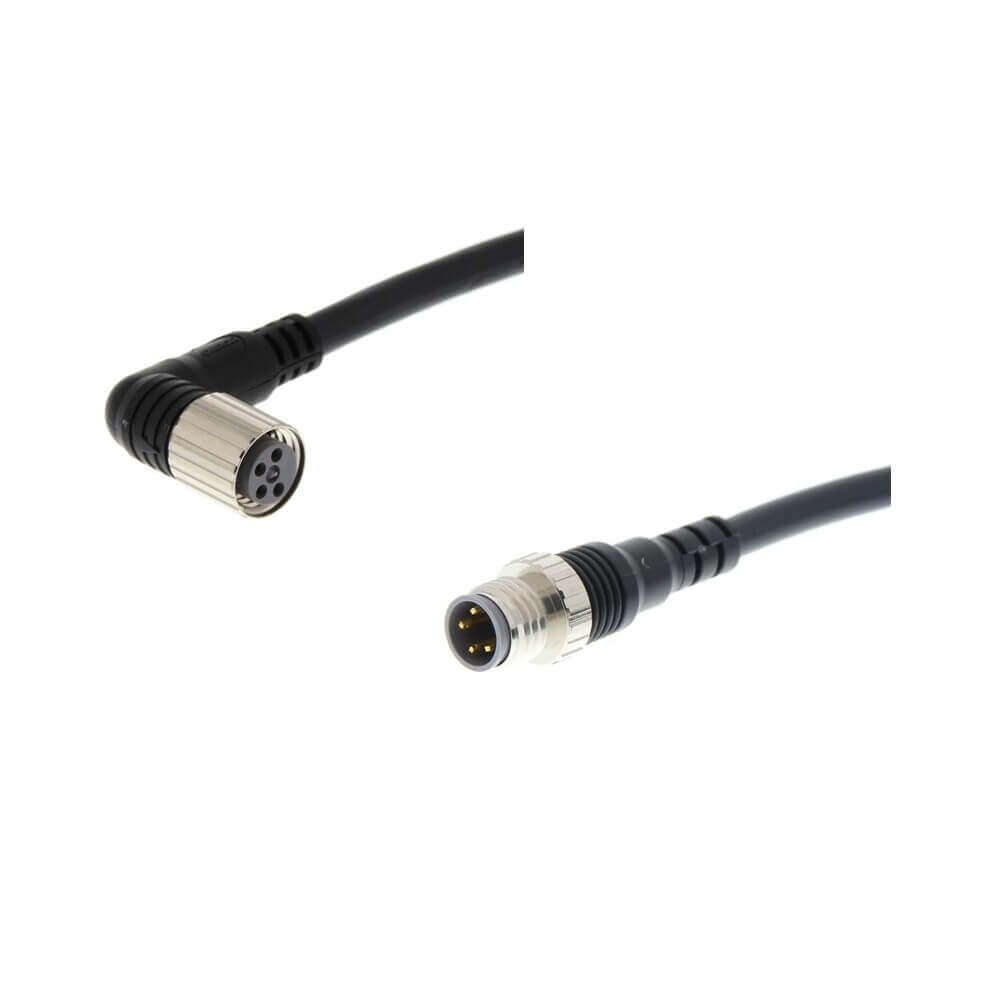

Omron XS3W-M424-402-R Extension Cable Technical Overview
| Specification | Value |
|---|---|
| Manufacturer | Omron |
| Model | XS3W-M424-402-R |
| Product Type | M8 Extension Cable |
| Application | Extension Cable |
| Connector 1 | M8 Right-Angle Female Socket |
| Connector 2 | M8 Straight Male Plug |
| Number of Contacts | 4 |
| Cable Material | PVC Robotic Cable |
| Cable Length | 2 m |
| Protection Rating | IP67 |
| Connector Nut Material | Brass |
| LED Indicator | None |
| Cable Color | Black |
The Omron XS3W-M424-402-R Extension Cable is designed to extend M8 sensor connections in industrial automation systems while maintaining reliable electrical continuity. It combines a right-angle M8 female connector with a straight M8 male connector, making it suitable for installations where equipment layout limits cable routing options. The cable is equipped with a robotic-grade PVC jacket intended for repetitive movement in automated machinery and complies with the IP67 protection standard when properly connected.
Omron XS3W-M424-402-R Technical Description
The Omron XS3W-M424-402-R Extension Cable incorporates four conductors inside a flexible PVC robotic cable. The connector assembly is factory molded to reduce installation errors and to improve long-term reliability compared with field-assembled wiring. The right-angle connector minimizes cable stress in confined installation spaces while the straight connector allows direct connection to compatible M8 devices.
Omron XS3W-M424-402-R The cable is intended for sensor and actuator wiring in industrial control systems where moderate mechanical movement and dependable signal transmission are required.
Omron XS3W-M424-402-R Working Principle
The extension cable transfers power and signal lines between compatible M8 devices without altering the electrical characteristics of the connected equipment. Each of the four contacts remains continuously connected from one connector to the other through individually insulated conductors.
The threaded M8 locking mechanism secures both connectors against vibration while maintaining environmental sealing. Once properly tightened, the connector assembly provides IP67 protection against dust ingress and temporary water exposure.
Typical Applications
- Industrial proximity sensor wiring
- Photoelectric sensor installations
- Automated conveyor systems
- Packaging machinery
- Assembly equipment
- Material handling systems
- Machine building projects
- General factory automation
The Omron XS3W-M424-402-R Extension Cable is frequently used when additional cable length is required without replacing the original factory cable assembly.
Industrial Applications
This extension cable supports automation systems across multiple industries, including automotive production, food packaging, warehouse logistics, electronics assembly, and general manufacturing. The compact connector orientation is particularly useful in machines with limited installation space around sensors or actuators.
Because the PVC robotic cable is designed for repeated machine movement, it is appropriate for equipment with controlled cable flexing during normal operation.
Advantages
- Factory-assembled M8 connectors
- Four-pin industrial wiring configuration
- Compact right-angle cable routing
- Robotic PVC cable construction
- IP67 environmental protection
- Threaded locking mechanism for secure installation
- Suitable for repetitive machine movement
- Compatible with Omron XS3 connector family
Industry Examples
Automated Warehouses
Extension cables simplify sensor installation on conveyor sections where the controller cabinet is positioned several meters away.
Machine Manufacturing
Equipment builders use right-angle connector configurations to reduce cable bending near compact mechanical assemblies.
Packaging Equipment
Photoelectric sensors positioned around product guides can be connected using standardized M8 extension cables instead of custom wiring.
Electronics Assembly
Inspection systems frequently require modular sensor connections that can be replaced quickly during maintenance without rewiring.
Considerations When Selecting the Product
- Confirm that both connected devices use M8 interfaces.
- Verify the required four-pin wiring configuration.
- Ensure the 2-meter cable length matches the installation.
- Consider available space for the right-angle connector.
- Verify that PVC cable characteristics meet application requirements.
- Confirm environmental protection requirements before installation.
Additional Omron sensor products are available for applications requiring different connector orientations, cable lengths, or cable materials.
Frequently Asked Questions
What is the primary function of this cable?
It extends M8 sensor or actuator connections while maintaining four-conductor electrical continuity.
How many contacts does the connector include?
The cable uses four electrical contacts.
Which connector configuration is used?
It combines a right-angle female M8 socket with a straight male M8 plug.
What cable material is used?
The cable uses robotic-grade PVC insulation designed for industrial automation applications.
Is the cable suitable for moving machinery?
Yes. The robotic PVC cable is intended for applications involving repeated controlled movement.
Does the cable include an LED indicator?
No. This model does not incorporate an LED indicator.
What protection rating does the cable provide?
When correctly connected, the assembly provides IP67 environmental protection.
Where is the Omron XS3W-M424-402-R Extension Cable commonly used?
The Omron XS3W-M424-402-R Extension Cable is commonly installed in factory automation systems, conveyor equipment, robotic workstations, packaging machinery, machine tools, and industrial sensor networks requiring reliable M8 extension wiring.
