Omron XS3W-M421-410-R Extension Cable

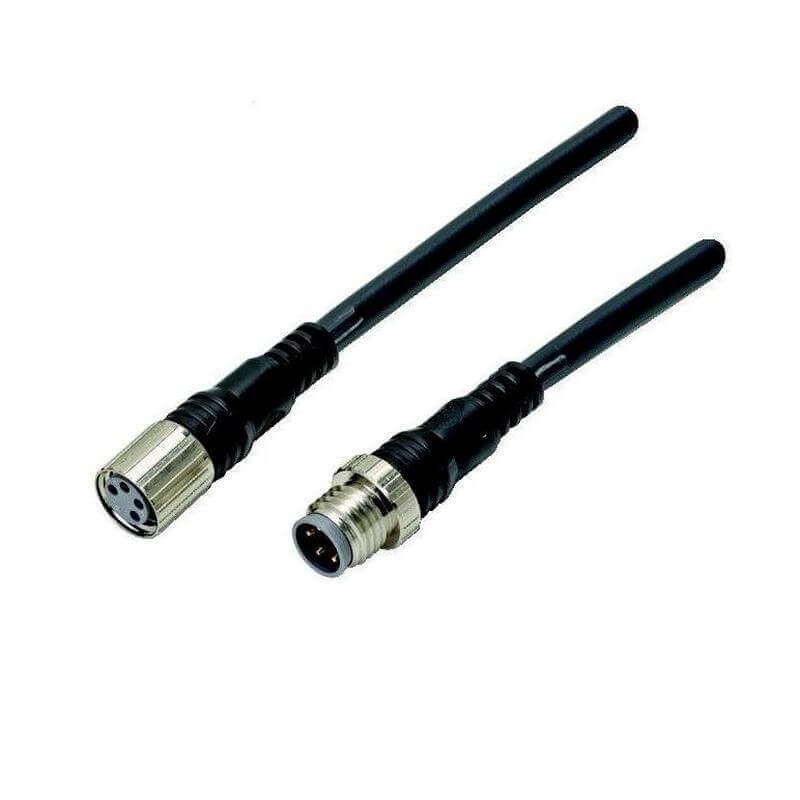

The Omron XS3W-M421-410-R Extension Cable is intended for industrial automation systems that require a longer connection distance between field devices and control equipment. Equipped with a straight M8 female connector and a straight M8 male connector, this factory-assembled cable eliminates the need for on-site connector installation while maintaining reliable electrical continuity.

With a 10-meter PVC robotic cable, the Omron XS3W-M421-410-R Extension Cable supports installations where sensors are positioned farther from control cabinets or distributed I/O modules. The molded connectors and threaded locking mechanism help maintain stable operation in environments exposed to vibration, dust, and moisture.

Technical Description

This extension cable belongs to Omron’s XS3 series of water-resistant connector products. It provides a four-contact M8 interface commonly used with compact industrial sensors, actuators, and monitoring devices. Factory molding protects the electrical terminations while simplifying installation.

The cable is manufactured with a flexible PVC jacket suitable for industrial machinery where moderate cable movement and mechanical protection are required. The IP67 sealing performance is achieved when connected to compatible M8 devices using the threaded coupling mechanism.

Working Principle

The cable extends both power and signal lines without altering the electrical interface of compatible M8-connected devices. After both connectors are securely tightened, electrical signals pass directly through the four conductors while the sealing system protects the contacts against environmental contaminants.

This design reduces installation time because no manual wiring, crimping, or soldering is required.

Typical Applications

• Photoelectric sensor installations
• Inductive proximity sensors
• Capacitive sensors
• Distributed I/O systems
• Automated conveyor equipment
• Industrial assembly machines
• Packaging systems
• Machine tool automation

Industrial Applications

Warehouse Automation

Long conveyor systems frequently require sensor cables that extend across multiple machine sections. The 10-meter cable length helps reduce the need for intermediate junction boxes.

Production Machinery

Machines with remote control panels often benefit from longer factory-assembled extension cables that maintain consistent connector quality throughout the installation.

Machine Building

Equipment manufacturers can standardize sensor wiring using pre-assembled M8 extension cables, reducing assembly time and simplifying maintenance procedures.

Material Processing

Production equipment using distributed sensing points can route longer cable runs while preserving sealed M8 connections.

Advantages

• 10-meter cable supports longer installation distances.
• Factory-molded connectors reduce wiring errors.
• Four-pin M8 interface supports many industrial sensors.
• PVC robotic cable offers installation flexibility.
• IP67 protection helps prevent dust and water ingress.
• Threaded coupling improves resistance to vibration.
• No field connector assembly is required.

Selection Considerations

• Verify connector configuration before installation.
• Confirm that a 10-meter cable length is appropriate for the application.
• Check voltage and current ratings.
• Ensure compatibility with four-pin M8 equipment.
• Evaluate environmental conditions and cable routing.
• Inspect connector sealing after installation.

Additional compatible connector options are available within the
Omron sensor products
portfolio.

Omron XS3W-M421-410-R Frequently Asked Questions

1. What connectors are installed on this cable?

The cable has one straight M8 female connector and one straight M8 male connector.

2. How long is the cable?

The overall cable length is 10 meters.

3. How many contacts are included?

The cable provides four electrical contacts.

4. Is the cable suitable for industrial automation?

Yes. It is designed for industrial sensor and actuator connections using M8 interfaces.

5. What protection rating does it provide?

When properly connected, the cable assembly meets IP67 protection requirements.

6. Does installation require field termination?

No. The connectors are factory molded and ready for installation.

7. What is the rated operating voltage?

The manufacturer specifies a rated voltage of 125 VDC.

8. Can this cable be used with Omron sensors?

Yes. The Omron XS3W-M421-410-R Extension Cable is intended for compatible M8-connected Omron sensors and other industrial devices using the same connector standard.
