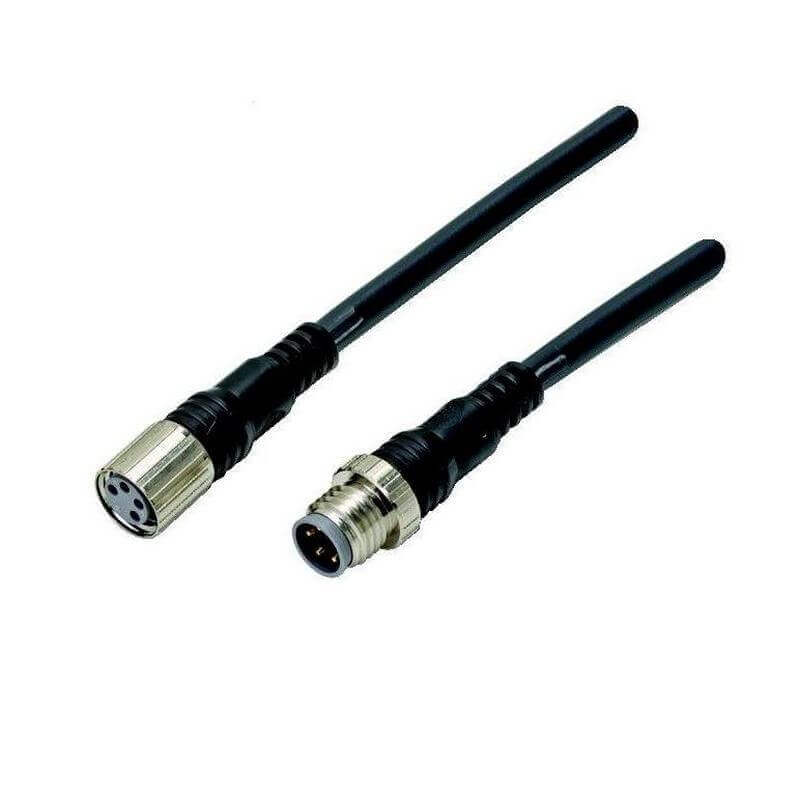

Omron XS3W-M321-310-R M8 Extension Cable
| Feature | Value |
|---|---|
| Product Type | Extension Cable |
| Manufacturer | Omron |
| Model | XS3W-M321-310-R |
| Connector 1 | M8 Straight Female Socket |
| Connector 2 | M8 Straight Male Plug |
| Number of Contacts | 3 |
| Cable Length | 10 m |
| Cable Type | PVC Robotic Cable |
| Protection Rating | IP67 |
| Nut Material | Brass |
| Color | Black |
| LED Indicator | No |
The Omron XS3W-M321-310-R Extension Cable is designed to extend signal connections between field devices and industrial control equipment using M8 connectors. Equipped with a straight female socket on one end and a straight male plug on the other, this cable provides a secure interface for sensors and other automation devices while maintaining reliable electrical continuity in demanding industrial environments. The robotic PVC cable construction improves flexibility in applications where continuous movement or repeated cable bending may occur. Manufacturer specifications identify the product as a 10-meter, 3-pole, IP67-rated extension cable intended for industrial automation systems. :contentReference[oaicite:0]{index=0}
Technical Description
The Omron XS3W-M321-310-R Extension Cable belongs to the XS3 connector family, which is intended for sensor connectivity in factory automation. The M8 threaded connection helps maintain mechanical stability even when vibration is present. Its IP67 protection rating allows the connector assembly to resist dust ingress and temporary water immersion when properly mated.
The three-contact configuration supports compatible sensors, switches, and compact field devices requiring standard M8 wiring arrangements. The 10-meter cable length simplifies installation where equipment is separated by greater distances without requiring additional field wiring.
Working Principle
The cable functions as a passive electrical extension between two compatible M8 devices. The female connector mates with the field device while the male connector interfaces with an existing cable or control equipment. Since the cable contains no active electronic components, signal transmission depends on the connected devices while the cable preserves electrical continuity through its internal conductors.
The threaded coupling minimizes accidental disconnection, while the sealed connector design helps maintain protection against contaminants commonly found in industrial production areas.
Typical Applications
- Sensor extension in automated production equipment
- Machine building projects
- Packaging machinery
- Conveyor automation systems
- Assembly stations
- Material handling equipment
- Inspection systems
- Industrial testing equipment
The Omron XS3W-M321-310-R Extension Cable is frequently used wherever additional cable length is required without modifying existing sensor wiring.
Industrial Applications
Automotive Manufacturing
Used for connecting proximity sensors, photoelectric sensors, and limit switches installed throughout robotic work cells and assembly lines.
Food Processing Equipment
The sealed connector construction supports installations where equipment is routinely cleaned and exposed to moisture.
Warehouse Automation
Suitable for conveyor sensors, sorting equipment, and automated storage systems that require dependable signal transmission over longer cable runs.
Machine Tool Industry
Provides reliable extension between machine-mounted sensors and electrical control cabinets while maintaining organized cable routing.
Advantages
- Factory-assembled connector terminations
- 10-meter extension length for flexible installation
- Robotic PVC cable designed for dynamic movement
- IP67 environmental protection when connected
- Standard M8 threaded locking mechanism
- Brass coupling nut for mechanical durability
- Compatible with various industrial sensor installations
Additional information about compatible products can be found in the Omron sensor product range.
Selection Considerations
Before selecting the Omron XS3W-M321-310-R Extension Cable, engineers should verify connector gender, pole count, cable length, environmental protection requirements, and compatibility with the connected sensor or controller. Matching connector specifications helps prevent installation issues while maintaining the intended protection rating.
Omron XS3W-M321-310-R Frequently Asked Questions
1. What type of connector does this cable use?
It features an M8 straight female socket on one end and an M8 straight male plug on the opposite end.
2. How many contacts are available?
The cable provides three electrical contacts.
3. What is the cable length?
The overall cable length is 10 meters.
4. Is the cable suitable for moving machinery?
Yes. The PVC robotic cable is intended for applications where cable flexibility is important.
5. What protection rating does the connector provide?
When properly connected, the assembly provides IP67 protection.
6. Can this cable be used with industrial sensors?
Yes. It is commonly used for extending connections between compatible M8 industrial sensors and control equipment.
7. Does the cable contain an LED indicator?
No. According to the manufacturer specification, this model does not include an LED indicator.
8. What should be checked before installation?
Verify connector compatibility, pole configuration, required cable length, environmental conditions, and secure threaded engagement to ensure reliable operation.
