Omron XS3H-M421-402-PR Sensor Cable

Modern robotic automation requires connection components that remain dependable under constant motion, repetitive bending, and exposure to industrial contaminants. The Omron XS3H-M421-402-PR Sensor Cable is developed for these demanding environments by combining a straight M8 male connector with a flexible oil-resistant PUR cable and open wire termination. This configuration supports direct integration into machine control systems while providing mechanical durability for dynamic applications. The product specifications are based on Omron technical documentation.

Unlike standard sensor cables intended primarily for stationary equipment, the Omron XS3H-M421-402-PR Sensor Cable is identified as a robotic cable, making it suitable for applications involving continuous cable movement. Its PUR jacket provides improved resistance to abrasion and industrial oils compared with conventional PVC cables, helping maintain cable integrity in automated production environments.

Omron XS3H-M421-402-PR Technical Description

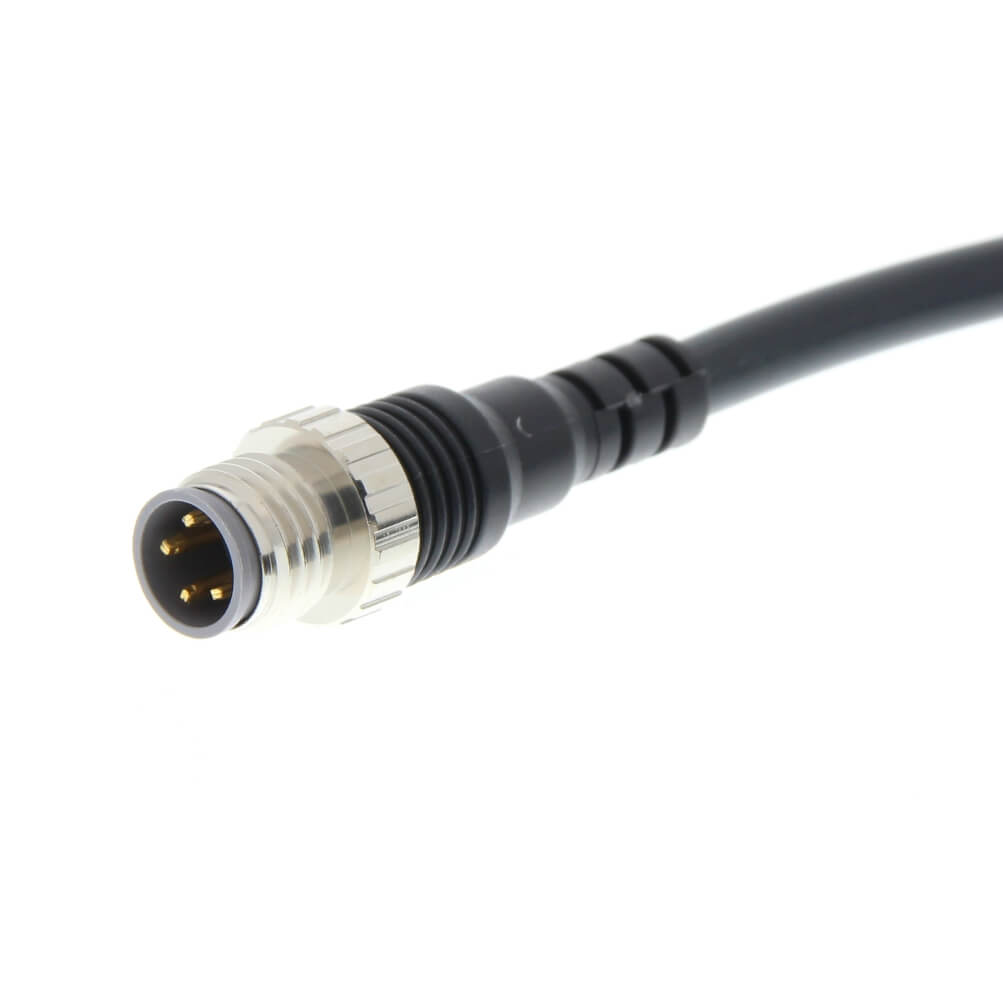

This model belongs to the Omron XS3H series of waterproof M8 connectivity products. It features a four-pole straight male connector on one end and open wire leads on the opposite side, allowing flexible termination inside PLC cabinets, distributed I/O stations, or customized electrical assemblies.

• M8 straight male connector
• Four electrical contacts
• PUR oil-resistant robotic cable
• 2-meter cable length
• IP67 protection when mated
• Open wire termination
• Brass coupling nut
• Designed for robotic applications

Omron XS3H-M421-402-PR Working Principle

The cable establishes electrical communication between field sensors and industrial controllers. Once the M8 connector is secured to its mating connector, electrical power and signal lines are transmitted through the four internal conductors. The threaded coupling minimizes loosening caused by vibration or repetitive movement.

The open wire end enables engineers to terminate individual conductors directly into PLC input modules, remote I/O systems, machine terminals, or electrical control panels according to project requirements.

Typical Applications

• Industrial robot arms
• Automated assembly cells
• Material handling equipment
• Servo-driven machinery
• Automated inspection systems
• Packaging robots
• Flexible manufacturing systems
• Motion control equipment

Industrial Application Examples

Robotic Welding Cells

Robot-mounted proximity and position sensors operate continuously while axes move through complex motion profiles. Oil-resistant PUR cabling helps withstand repeated flexing and harsh manufacturing environments.

Omron XS3H-M421-402-PR Automated Pick-and-Place Systems

High-speed handling equipment requires reliable sensor connectivity that remains stable during repetitive acceleration and deceleration cycles.

Automotive Production

Vehicle assembly lines frequently utilize robotic tooling equipped with compact M8 sensors for part detection, positioning, and machine status monitoring.

Automated Logistics Equipment

Transfer units and robotic sorting systems depend on flexible cable assemblies capable of maintaining electrical performance while moving with machine components.

Advantages

• PUR jacket resists industrial oils and abrasion
• Designed specifically for robotic applications
• Compact M8 male connector
• Four-pole connection for industrial sensors
• IP67 environmental protection when connected
• Open wire ends simplify custom integration
• Reliable threaded locking mechanism
• Suitable for continuously moving equipment

Selection Considerations

When selecting a robotic sensor cable, engineers should evaluate connector orientation, pin configuration, mechanical movement, bending radius, cable material, environmental exposure, and required cable length. Dynamic applications generally benefit from PUR cable construction because of its resistance to oil, wear, and repeated flexing.

It is also essential to verify compatibility between the sensor connector, controller wiring, and installation environment before commissioning.

Related Omron Connectivity Solutions

For additional connector styles, sensor accessories, and industrial connectivity products, explore the Omron sensor product range.

Frequently Asked Questions

1. What connector is used on this cable?

It features a straight four-pole M8 male connector.

2. Why is a PUR cable used instead of PVC?

PUR offers improved resistance to industrial oils, abrasion, and repeated mechanical movement, making it suitable for robotic applications.

3. What is the cable length?

The cable length is 2 meters.

4. Does this model include a connector on both ends?

No. One end has an M8 male connector, while the opposite end provides open wire leads.

5. Is it intended for moving machinery?

Yes. The manufacturer specifies this model as a robotic cable intended for dynamic industrial applications.

6. What protection level does the connector provide?

When properly mated with a compatible connector, the interface meets IP67 protection.

7. Which industrial sectors commonly use this cable?

It is widely applicable in automotive manufacturing, robotics, logistics automation, packaging equipment, and automated production machinery.

8. Can the cable be connected directly to a PLC?

Yes. The open wire termination allows direct wiring into PLC terminals, remote I/O modules, or machine control panels following the appropriate wiring documentation.
