Omron XS3F-M8PVC3S15M Sensor Cable

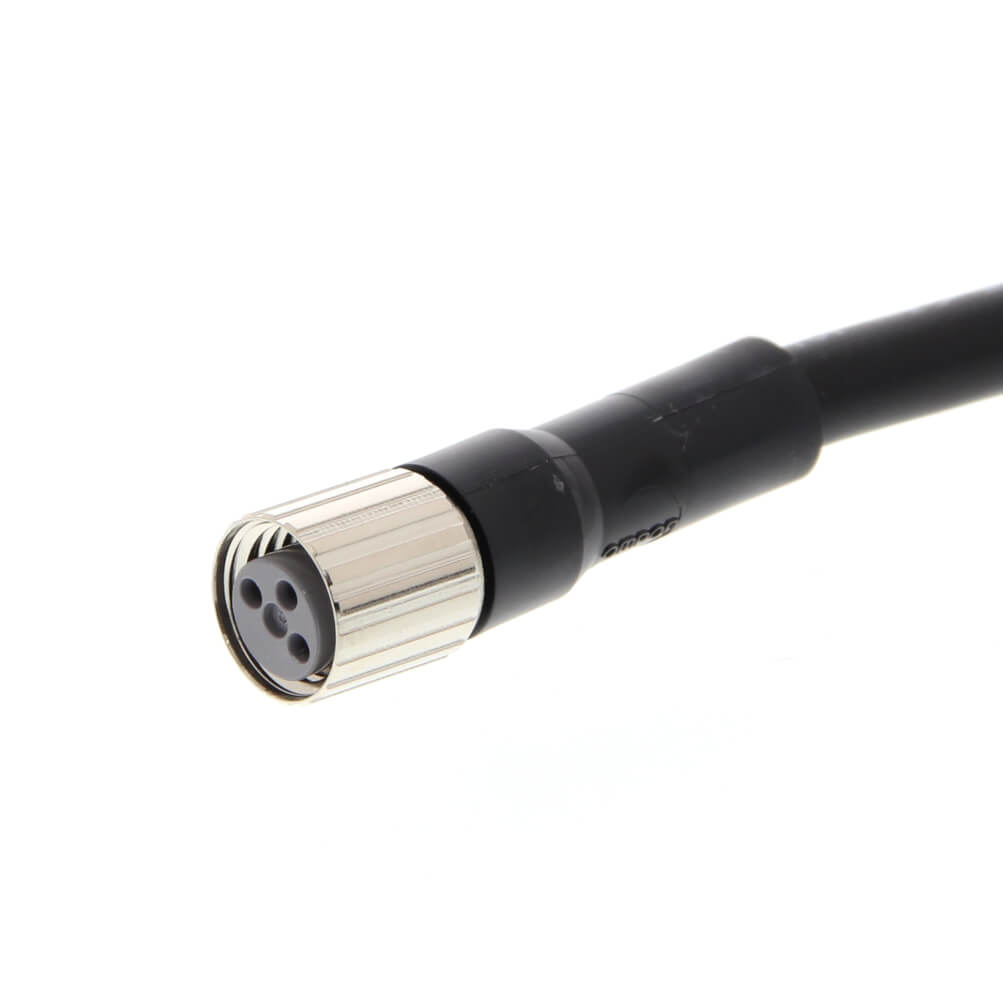

Industrial automation systems often require sensor cables that can cover long distances without introducing unnecessary connection points. The Omron XS3F-M8PVC3S15M Sensor Cable is designed for these installations by combining a 3-pin M8 straight female connector with a factory-assembled 15-meter PVC cable. The extended cable length simplifies wiring layouts while maintaining a reliable electrical connection between field devices and control equipment.

The Omron XS3F-M8PVC3S15M Sensor Cable belongs to the XS3F series of circular sensor connectors developed for compact industrial automation. Its IP67-rated connector construction helps protect the electrical interface against dust and temporary water exposure when properly assembled, making it suitable for many factory environments.

Technical Description

This cable assembly consists of an M8 straight female socket permanently attached to a flame-retardant PVC cable with open wire ends. The three-contact configuration supports common sensor wiring used for proximity sensors, photoelectric sensors, limit sensors, and other compact field devices.

The connector housing is engineered for repeated installation while the nickel-plated brass coupling nut provides secure fastening and resistance to mechanical wear during maintenance cycles.

Working Principle

The cable serves as a passive transmission path between an industrial sensor and the automation controller. Electrical signals generated by the connected device travel through the three conductors to PLC input modules, remote I/O systems, or other compatible control equipment.

The threaded M8 locking mechanism minimizes the possibility of accidental disconnection caused by machine vibration, while the sealing structure supports IP67 protection after proper installation.

Typical Applications

• Industrial proximity sensor wiring
• Photoelectric sensor connections
• Automated conveyor systems
• Packaging machinery
• Sorting equipment
• Machine tools
• Assembly automation
• Factory control panels

Industrial Applications

The extended 15-meter cable is particularly useful where sensors are installed far from the control cabinet. Manufacturing facilities, logistics centers, warehouse automation, packaging lines, and material handling systems frequently require long cable routing while maintaining standardized M8 connectivity.

Machine builders also use long sensor cables to simplify cabinet design by reducing intermediate junction boxes where direct cable routing is possible.

Advantages

• 15-meter cable supports long-distance installations.
• Compact M8 connector saves installation space.
• IP67 protection improves environmental resistance.
• Factory-molded connector reduces installation complexity.
• Flame-retardant PVC jacket supports industrial environments.
• Nickel-plated brass coupling nut enhances mechanical durability.
• Open wire end allows flexible integration into electrical panels.

Omron XS3F-M8PVC3S15M Industry Examples

Warehouse Automation

Long conveyor systems often position sensors several meters away from control cabinets. A 15-meter cable helps connect these devices without additional extension connectors.

Food Packaging Equipment

Packaging machinery uses compact M8-connected sensors to monitor product movement, carton positioning, and machine status throughout production.

Automotive Manufacturing

Assembly stations employ distributed sensors for fixture verification and component detection while maintaining organized cable routing.

Material Transport Systems

Industrial transfer lines utilize long sensor cables for object detection and position monitoring across extended conveyor sections.

Omron XS3F-M8PVC3S15M Selection Considerations

• Verify compatibility with 3-pin M8 female sensor interfaces.
• Select the cable length according to installation distance.
• Confirm environmental conditions comply with the specified operating temperature.
• Ensure the connected equipment matches the rated voltage and current.
• Review the sensor pin assignment before final installation.

Additional connector families and compatible automation connectivity products are available through Omron sensor series.

Frequently Asked Questions

1. What connector type is used?

The cable features a straight M8 female socket with three electrical contacts.

2. How long is the cable?

The overall cable length is 15 meters.

3. Does the cable include a connector on both ends?

No. One end has an M8 female socket, while the opposite end provides open wire leads.

4. Is the connector suitable for industrial environments?

Yes. The connector is designed to meet IP67 protection requirements when correctly installed.

5. Which devices commonly use this cable?

It is widely used with proximity sensors, photoelectric sensors, and other industrial sensing devices equipped with M8 interfaces.

6. Does this model include an LED indicator?

No. The XS3F-M8PVC3S15M does not incorporate an LED status indicator.

7. Why choose a 15-meter cable instead of a shorter version?

The longer cable can eliminate intermediate extension points in installations where sensors are located farther from the control cabinet.

8. Where is the Omron XS3F-M8PVC3S15M Sensor Cable typically installed?

The Omron XS3F-M8PVC3S15M Sensor Cable is commonly installed in packaging machinery, conveyor systems, warehouse automation, assembly equipment, and machine-building projects requiring long-distance sensor connections.
