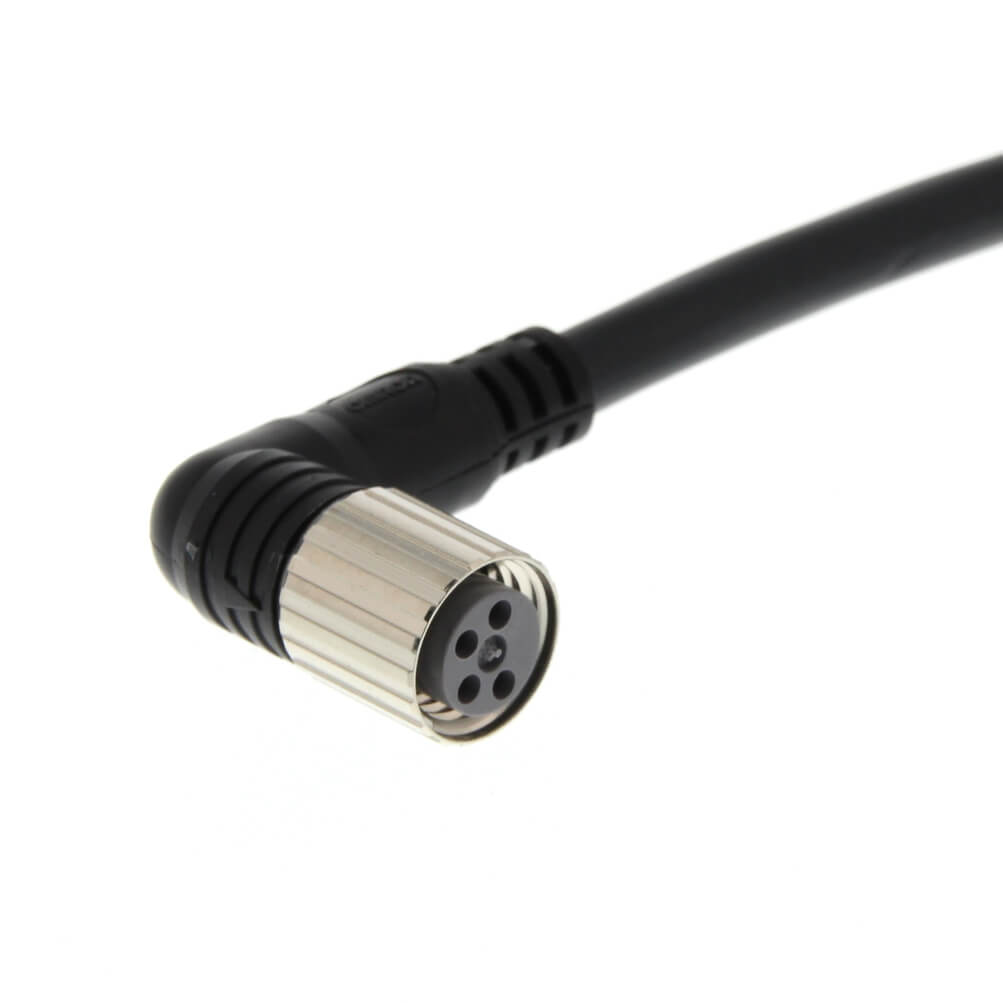

Omron XS3F-M422-405-R Sensor Cable

The Omron XS3F-M422-405-R Sensor Cable is an industrial connection cable developed for reliable communication between M8-compatible sensors and automation controllers. Featuring a right-angle female connector and open wire termination, the assembly supports installations where cable routing must be carefully managed inside compact equipment. The robotic PVC cable construction is intended for applications involving continuous movement while maintaining dependable electrical performance in industrial environments. The connector is sealed to IP67, helping protect the electrical interface from dust and temporary water exposure. :contentReference[oaicite:0]{index=0}

Technical Description

The Omron XS3F-M422-405-R Sensor Cable belongs to the XS3 family of industrial sensor connection products. It combines a four-pin M8 right-angle socket with a five-meter robotic PVC cable and open wire ends for flexible panel integration. The right-angle connector helps reduce cable strain near the sensor while simplifying cable routing in machinery with limited installation space.

The brass coupling nut provides secure mechanical fastening, reducing the possibility of accidental loosening caused by machine vibration. The connector follows standard M8 industrial interfaces widely used throughout factory automation systems.

Operating Principle

This cable serves as the electrical interface between field sensors and automation equipment. The four conductors transmit supply voltage and sensor output signals according to the connected device’s wiring configuration.

Once the threaded connector is fully tightened, the sealing structure forms an IP67-rated connection. This helps maintain reliable signal transmission while protecting the contact area against contamination encountered in industrial operating environments.

Typical Applications

• Photoelectric sensor installations
• Inductive proximity sensors
• Capacitive sensors
• Industrial control panels
• PLC input connections
• Distributed I/O systems
• Compact machine automation
• Factory sensor networks

Industrial Applications

Robotic Manufacturing Cells

The robotic PVC cable construction makes the cable suitable for applications where repeated movement occurs during automated production processes.

Packaging Systems

Sensors mounted on conveyors, labeling equipment, and product handling systems often require compact cable routing. The right-angle connector minimizes cable protrusion around moving mechanisms.

Automotive Production

Assembly fixtures, positioning systems, and inspection stations frequently employ M8 sensor interfaces that require dependable field wiring.

Material Handling Equipment

Sorting conveyors, transfer mechanisms, and automated warehouse equipment utilize sensor cables to connect detection devices with PLC-controlled automation systems.

Omron XS3F-M422-405-R Advantages

• Compact right-angle connector reduces installation depth.
• Five-meter cable supports longer routing distances.
• Robotic PVC cable is designed for moving applications.
• Four-pin M8 interface supports numerous industrial sensors.
• Open wire termination simplifies custom control panel wiring.
• IP67-rated connector improves environmental protection.
• Brass coupling nut provides secure fastening.
• Compatible with a broad range of Omron sensing products.

Sector Examples

• Food and beverage processing
• Pharmaceutical manufacturing
• Automotive assembly
• Electronic production equipment
• Packaging machinery
• Warehouse automation
• Machine tool systems
• Industrial inspection equipment

Selection Considerations

When selecting an M8 sensor cable, engineers should verify the connector orientation, cable length, conductor count, environmental protection rating, and cable construction. Robotic cable versions are generally selected for installations involving repeated mechanical movement, while the required cable length should be chosen to avoid unnecessary extensions.

Compatibility with the sensor connector, controller wiring, voltage rating, and current rating should also be confirmed before installation to ensure proper system operation.

Additional compatible connection products can be found within the Omron sensor product range.

Omron XS3F-M422-405-R Frequently Asked Questions

1. What connector does this cable use?

It uses a four-pin M8 right-angle female socket with threaded locking.

2. How long is the cable?

The cable assembly has a total length of 5 meters.

3. What type of cable construction is used?

The assembly uses a robotic PVC cable intended for industrial applications involving cable movement.

4. How is the opposite end terminated?

The opposite end consists of open wire leads for direct connection inside electrical panels or terminal blocks.

5. What protection rating does the connector provide?

When properly connected, the connector provides IP67 environmental protection.

6. Which devices commonly use this cable?

It is commonly connected to photoelectric sensors, inductive proximity sensors, capacitive sensors, and other M8-compatible automation devices.

7. What are the electrical ratings?

The manufacturer specifies a rated voltage of 125 V and a rated current of 1 A.

8. Why would engineers choose the Omron XS3F-M422-405-R Sensor Cable?

The Omron XS3F-M422-405-R Sensor Cable combines a compact right-angle connector, robotic PVC cable, IP67 sealing, and flexible open-wire termination, making it suitable for industrial sensor installations where dependable cable routing and mechanical durability are required.
