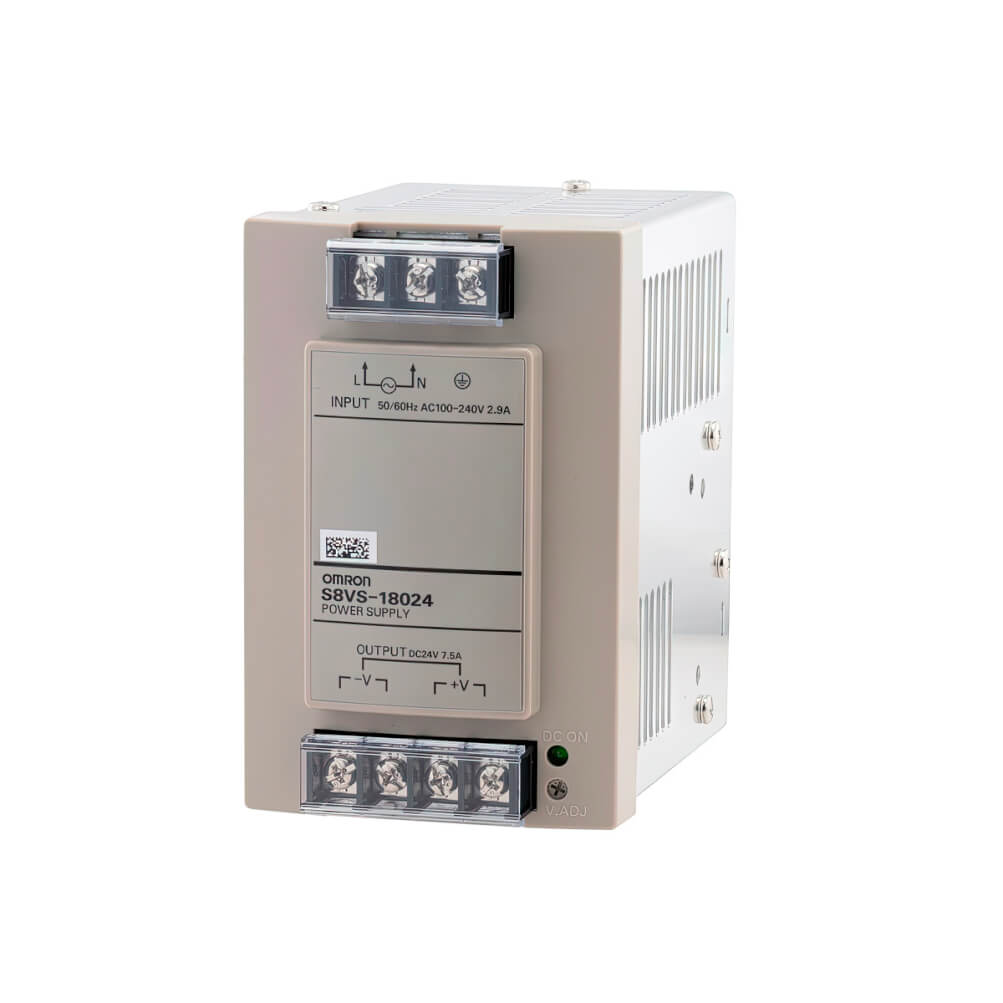

Omron S8VS-18024 180W 24VDC DIN Rail Power Supply
The Omron S8VS-18024 is a 180 W switch mode power supply designed to provide stable 24 VDC power for industrial automation and control applications. Delivering a rated output current of 7.5 A, it offers sufficient capacity for controllers, sensors, relays, communication equipment and other electronic components installed within industrial control panels.
Its covered construction, screw terminal connections and DIN rail mounting design support orderly integration into new machinery, panel-building projects and existing automation systems. The product is suitable for organizations seeking a dependable power supply for continuous industrial operation.
Omron S8VS-18024 Reliable 24 VDC Output
Consistent DC voltage is essential for maintaining the stable operation of automation equipment. This power supply delivers a rated 24 VDC output with a maximum ripple value of 50 mV under rated input and output conditions. Its output voltage can be adjusted from -10% to +15% using the integrated V.ADJ function.
The model accepts a rated input voltage of 100 to 240 VAC and operates within an allowable AC input range of 85 to 264 VAC. It also supports an input range of 80 to 370 VDC. This broad input capability allows the unit to be incorporated into different industrial electrical infrastructures.
Omron S8VS-18024 Protection for Industrial Systems
Integrated overload protection helps protect the power supply when connected loads exceed the permitted operating range. The overload protection function resets automatically after the abnormal load condition has been removed. Overvoltage protection is also included to reduce the risk of excessive output voltage affecting connected equipment.
A green output indicator provides a clear visual reference for the operating status of the DC output. These protection and indication functions support easier commissioning, troubleshooting and routine maintenance within industrial control cabinets.
Omron S8VS-18024 Main Technical Features
- 180 W rated power capacity
- 24 VDC rated output voltage
- 7.5 A rated output current
- 100 to 240 VAC rated input voltage
- 85 to 264 VAC allowable input range
- 80 to 370 VDC supported input range
- Adjustable output voltage from -10% to +15%
- Automatic-reset overload protection
- Integrated overvoltage protection
- Green DC output indicator
- Screw terminal connections
- DIN rail mounting
Omron S8VS-18024 Industrial Application Areas
The Omron S8VS series can be used in PLC control panels, packaging machinery, material-handling equipment, production lines, process automation systems and OEM machine assemblies. Its 7.5 A output capacity makes it appropriate for applications where several 24 VDC devices must be powered from a centralized supply.
Typical connected loads may include programmable controllers, industrial sensors, interface relays, signal converters, operator panels and communication modules. Engineers should calculate the total load current and allow a suitable operating margin before selecting the power supply.
Installation and Product Selection
Before installation, the input voltage, total connected load, ambient temperature, cabinet ventilation and mounting arrangement should be verified. The unit is rated for operation in ambient temperatures from -10°C to 60°C, although applicable derating requirements must be considered under higher-temperature or non-standard mounting conditions.
For more information about current pricing, product availability, delivery options and suitable Omron automation products, visit the Omron product page at Emaconn.
