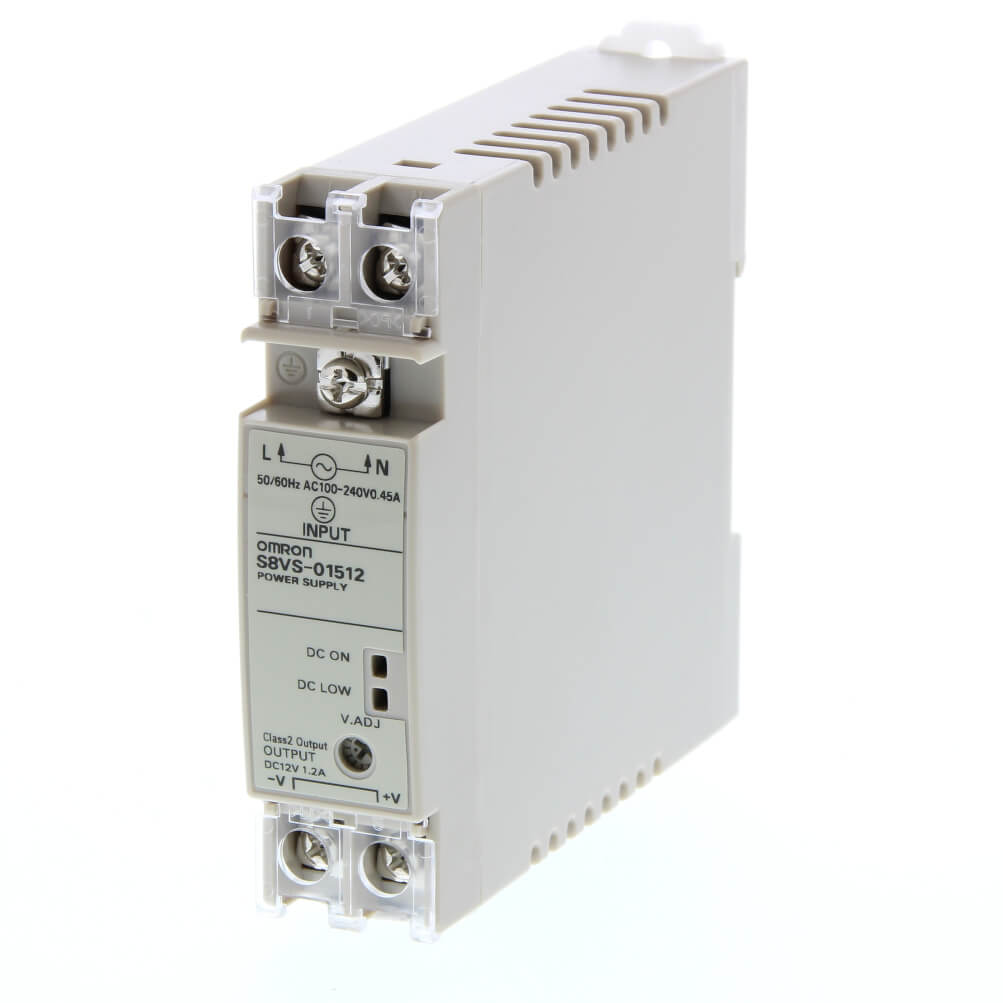

Omron S8VS-01512 Switching Power Supply
The Omron S8VS-01512 is a compact switching power supply designed to provide 12 VDC power for industrial automation and machine-control equipment. This single-phase model delivers 15 W with a rated output current of 1.2 A. Its narrow plastic housing supports installation in control panels where available DIN rail space is limited. Contact Emaconn for current pricing, stock status, delivery information and technical product selection support.
Compact Power Distribution for Control Panels
Modern control cabinets often contain multiple relays, sensors, indicators and electronic modules within limited installation space. The S8VS-01512 has a width of 22.5 mm, helping panel builders incorporate a dedicated 12 VDC supply without occupying excessive DIN rail capacity.
The unit accepts a rated input of 100 to 240 VAC at 50 Hz. Its allowable AC input range is 85 to 264 VAC, while the specified allowable DC input range is 80 to 370 VDC. This broad input capability can support machinery designed for deployment across different industrial electrical environments, provided that all manufacturer installation conditions are followed.
Technical Specifications
| Specification | Value |
|---|---|
| Product type | Switching power supply |
| Phase | Single phase |
| Rated output power | 15 W |
| Output voltage | 12 VDC |
| Rated output current | 1.2 A |
| Rated AC input voltage | 100 to 240 VAC |
| Allowable AC input range | 85 to 264 VAC |
| Allowable DC input range | 80 to 370 VDC |
| Efficiency | 78% |
| Mounting method | DIN rail or direct panel mounting |
| Terminal type | Screw terminals |
| Operating temperature range | -10°C to 60°C |
| Dimensions | 22.5 × 94.6 × 96.4 mm |
| Output branches | One |
| Additional feature | UL Class 2 |
Suitable Industrial Applications
The 12 VDC output is intended for compatible low-power industrial loads. Engineers may evaluate this model for supplying relays, indicators, sensors, compact control modules and other electronic devices that operate within its voltage and current ratings.
Relevant application environments may include:
- Compact machine-control cabinets
- Packaging and assembly machinery
- Production monitoring equipment
- Industrial test systems
- Building automation panels
- OEM electrical assemblies
- Maintenance replacement projects
The power supply has one output branch and does not include a communication port or alarm function. Applications requiring remote diagnostics, operating-data transmission or multiple separately protected outputs may require additional monitoring and distribution equipment.
Load Calculation and Product Selection
The total connected load must be calculated before ordering. All devices should operate at 12 VDC, and their combined continuous current consumption must remain within the applicable 1.2 A rating. Starting current, temporary peak demand and future additions to the panel should also be considered.
A power supply should not be selected solely because its nominal voltage matches the connected equipment. Designers should review available output power, current demand, ambient temperature, mounting arrangement and wiring losses. Maintaining an appropriate operating margin can support stable performance and simplify future system modifications.
For replacement applications, compare the complete product code and electrical specifications with the existing unit. A physically similar S8VS model may provide a different voltage, output current or monitoring function. If the required load exceeds 15 W, another model with greater capacity should be evaluated.
Omron S8VS-01512 Installation and Commissioning Considerations
The product supports DIN rail or direct panel mounting. Installers should confirm that the selected mounting method provides secure mechanical support and adequate ventilation. Clearance should be maintained around the unit according to the applicable installation manual, especially when it is placed near other heat-generating components.
Screw terminals require properly prepared conductors and correct tightening torque. Input protection, grounding and conductor sizing should comply with the electrical design and local requirements. AC input wiring should be separated appropriately from sensitive DC signal cables to reduce electrical interference.
During commissioning, engineers should verify the input voltage, output polarity and output voltage before connecting sensitive loads. The load can then be introduced in a controlled manner while checking system operation. Maintenance teams should periodically inspect the terminals, surrounding temperature, ventilation openings and wiring condition.
Omron S8VS-01512 Purchasing Support from Emaconn
Emaconn can support customers purchasing the S8VS-01512 for machinery projects, panel production, planned maintenance and spare-part requirements. Available commercial assistance may include current price information, stock checks, estimated lead times, quotation preparation and international supply coordination.
For an accurate quotation, provide the complete part number, required quantity, delivery destination and expected schedule. Application information such as the input supply, connected load and mounting arrangement can also help the technical sales team assess product suitability.
When the requested model does not meet the required output capacity or delivery plan, Emaconn can assist with alternative model evaluation. Explore the Omron industrial automation product range for related power supplies and control components.
Conclusion
The Omron S8VS-01512 is a space-efficient 15 W power supply for compatible 12 VDC industrial control loads. Its 1.2 A output, 22.5 mm width and DIN rail or direct panel mounting options make it suitable for compact automation panels. Selection should be based on accurate load calculations, input conditions, available space, temperature and installation requirements. Contact Emaconn to request current pricing, confirm availability or obtain assistance with product compatibility.
Omron S8VS-01512 Frequently Asked Questions
What output voltage does the S8VS-01512 provide?
It provides a rated output voltage of 12 VDC.
What is the rated output capacity?
The unit is rated for 15 W with a maximum rated output current of 1.2 A.
Which input voltage can be used?
It has a rated input of 100 to 240 VAC and an allowable AC input range of 85 to 264 VAC.
Can the power supply accept a DC input?
Yes. The specified allowable DC input range is 80 to 370 VDC, subject to the manufacturer’s installation conditions.
How wide is the S8VS-01512?
The housing is 22.5 mm wide, making it suitable for control panels with limited DIN rail space.
Can it be mounted directly onto a panel?
Yes. The model supports both DIN rail installation and direct panel mounting.
Does it include communication or alarm functions?
No. This version has no communication interface or integrated alarm function.
How can the current price be obtained?
Provide the full part number, quantity and delivery destination when requesting a current quotation.
Can stock availability be checked before ordering?
Yes. Stock should be checked at the time of enquiry because availability may change.
Is support available for multiple-unit orders?
Yes. A project-based or quantity-based quotation can be requested for multiple units.
How can the estimated delivery time be confirmed?
Estimated lead time is determined according to availability, quantity and delivery destination.
Can an alternative model be recommended?
Yes. Alternatives can be evaluated according to output voltage, current capacity, mounting and project requirements.
