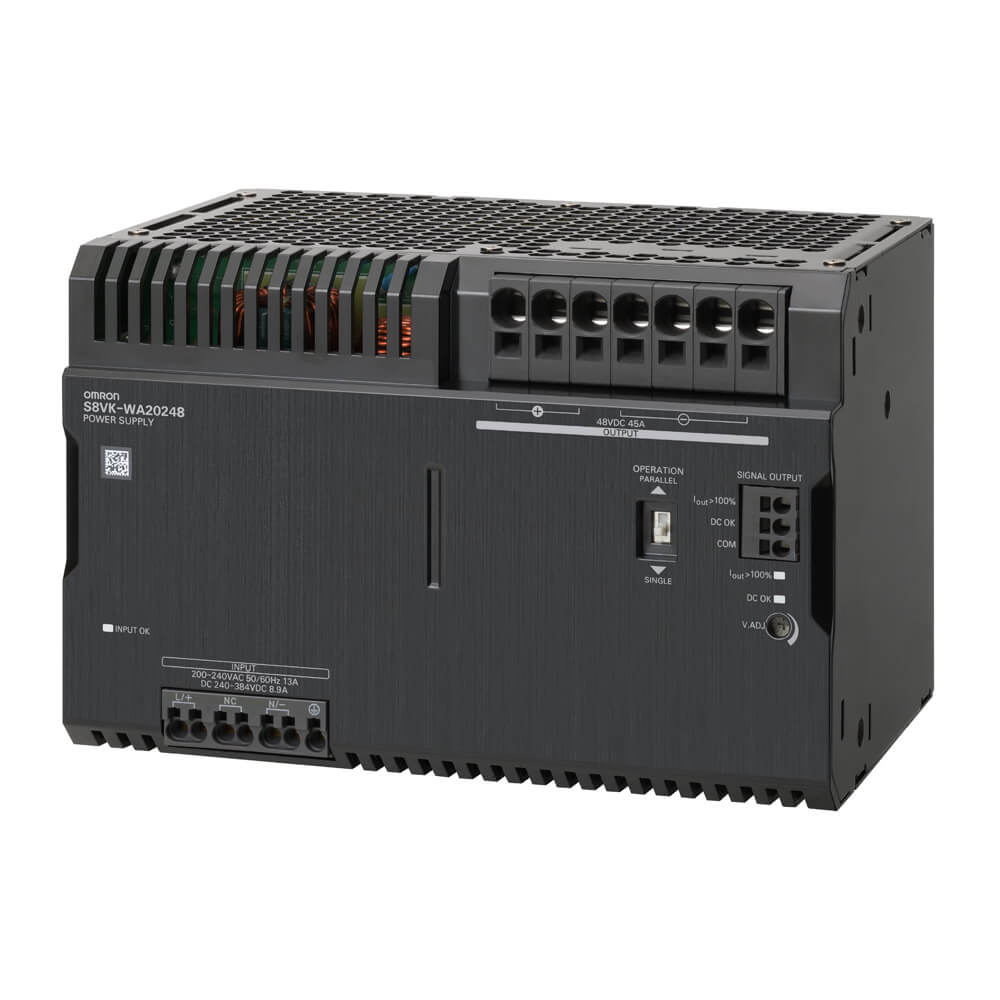

Omron S8VK-WA20248-SPI 2000W 48VDC 45A Power Supply
The Omron S8VK-WA20248-SPI is a high-output industrial switch mode power supply designed for applications requiring reliable 48 VDC power. Delivering 2000 W rated power and 45 A output current, it is suitable for large automation systems, industrial machinery and control cabinets with substantial DC load requirements. Companies can contact Emaconn for current pricing, stock availability, estimated delivery and technical product selection support.
High-Capacity 48VDC Power for Automation
Modern production equipment may include industrial computers, controllers, communication devices, actuators and other components that require a stable 48 VDC supply. This unit provides sufficient capacity for centralised power distribution, helping machine builders create organised electrical architectures with fewer individual power supplies.
The power supply accepts an input range of 170 to 264 VAC and supports a nominal input voltage of 200 to 240 VAC. A DC input range of 240 to 384 VDC is also supported, subject to the applicable wiring, fuse and safety requirements defined by Omron.
Omron S8VK-WA20248-SPI 2000W Technical Specifications
| Product series | S8VK-WA |
|---|---|
| Rated output power | 2000 W |
| Rated output voltage | 48 VDC |
| Rated output current | 45 A |
| Power Boost current | 67.5 A |
| Allowable AC input | 170–264 VAC |
| Supported DC input | 240–384 VDC |
| Input frequency | 47–63 Hz |
| Output adjustment range | 48–56 VDC |
| Typical efficiency | Up to 96%, depending on input configuration |
| Terminal type | Push-in |
| Operating temperature | -40°C to +70°C with applicable derating |
| Mounting method | DIN rail |
Omron S8VK-WA20248-SPI 2000W Power Boost and Protection Functions
The Power Boost function can deliver up to 67.5 A for temporary load peaks under the operating conditions specified by Omron. This supports applications in which motors, actuators or other equipment briefly require current above the continuous rating.
Integrated overload and overvoltage protection functions contribute to dependable operation during abnormal electrical conditions. Series and parallel operation are also supported, although external components, current limitations and the required operating settings must be confirmed during system design.
Efficient Wiring and Status Monitoring
The SPI version uses push-in terminals to simplify wiring and reduce assembly effort in industrial control cabinets. INPUT OK, DC OK and Iout > 100% indicators provide clear visual information for commissioning and maintenance. Signal outputs can be connected to suitable control or monitoring circuits to support fault identification.
Suitable Application Areas
- Large industrial control cabinets
- Robotic manufacturing cells
- Production and assembly lines
- Material-handling equipment
- Automated warehouse systems
- Industrial communication networks
- High-capacity OEM machinery
Omron S8VK-WA20248-SPI 2000W Selection and Ordering Support
Before placing an order, verify the input supply, continuous and peak-current requirements, output cabling, protective devices, thermal conditions and available DIN rail space. Proper engineering evaluation is especially important in high-current installations.
Contact Emaconn to request a quotation and confirm availability, delivery options and product compatibility. More information about related products can be found on the Omron product page.
Frequently Asked Questions
What output does this power supply provide?
It provides a regulated 48 VDC output with 45 A rated current and 2000 W total power.
Does this model feature push-in terminals?
Yes. The SPI version is equipped with push-in terminals for efficient cabinet wiring.
How can pricing and availability be confirmed?
Customers can contact Emaconn using the complete model number to request current price, availability and delivery information.
