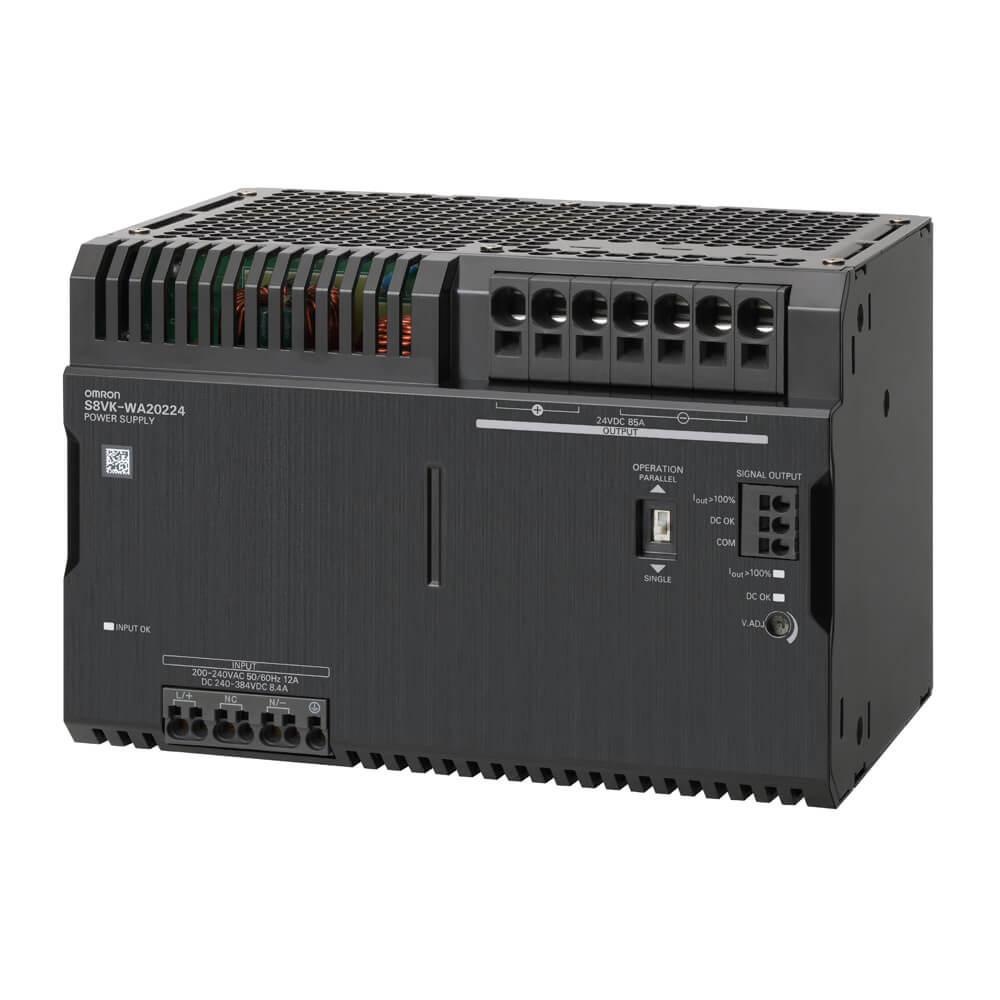

Omron S8VK-WA20224-SPI 2000W 24VDC 85A Power Supply
The Omron S8VK-WA20224-SPI is a high-capacity industrial switch mode power supply developed for automation systems requiring a stable 24 VDC output. With 2000 W rated power and 85 A output current, it is suitable for large machines, production lines and control cabinets containing multiple high-demand loads. Customers planning a new installation or replacement can contact Emaconn for current pricing, availability, delivery information and technical selection support.
Omron S8VK-WA20224-SPI 2000W High-Power 24VDC Supply for Industrial Systems
Large automation systems often contain PLCs, industrial computers, communication equipment, actuators, sensors and control components operating from a common 24 VDC network. This power supply provides the capacity required to support extensive DC loads while enabling a centralised and organised power architecture.
The unit supports an AC input range of 170 to 264 VAC and a nominal supply voltage of 200 to 240 VAC. Its input flexibility allows integration into various industrial electrical systems, subject to correct circuit protection and installation practices.
Omron S8VK-WA20224-SPI 2000W Technical Specifications
| Product series | S8VK-WA |
|---|---|
| Rated output power | 2000 W |
| Output voltage | 24 VDC |
| Rated output current | 85 A |
| Power Boost current | 127.5 A |
| Allowable AC input | 170–264 VAC |
| Nominal AC input | 200–240 VAC |
| Output adjustment range | 24–28 VDC |
| Typical efficiency | Up to 96%, depending on input configuration |
| Terminal type | Push-in |
| Operating temperature | -40°C to +70°C with applicable derating |
| Mounting method | DIN rail |
Power Boost and Protective Functions
The Power Boost function can provide up to 127.5 A for temporary demand peaks when Omron’s specified operating conditions are satisfied. This can support applications that experience short-duration current increases during machine start-up or actuator operation.
Overload and overvoltage protection functions help protect the power supply and connected equipment during abnormal conditions. The unit also supports series and parallel operation, although the applicable wiring rules, output limitations and external components must be reviewed before commissioning.
Push-In Wiring and System Monitoring
Push-in terminals simplify cabinet wiring and can reduce assembly time in high-current installations. INPUT OK, DC OK and Iout > 100% indicators provide clear operating-status information. Signal outputs can also support integration with suitable monitoring and maintenance systems.
Omron S8VK-WA20224-SPI 2000W Typical Applications
- Large PLC and automation cabinets
- Robotic production cells
- Automated assembly lines
- Material-handling systems
- Packaging and processing machinery
- Industrial communication networks
- High-capacity OEM equipment
Selection and Purchasing Guidance
Before ordering, verify the input configuration, continuous load current, peak demand, terminal loading, cable cross-section, protective devices and available cabinet space. Current distribution between output terminal poles must be considered carefully in high-load applications.
Contact Emaconn to confirm current stock status, commercial terms, estimated delivery and compatibility. More information about related products is available on the Omron product page.
Omron S8VK-WA20224-SPI 2000W Frequently Asked Questions
What output capacity does this model provide?
It delivers 24 VDC at a rated current of 85 A, providing 2000 W of output power.
Does the unit use push-in terminals?
Yes. This SPI version features push-in terminals for efficient industrial cabinet wiring.
How can a quotation be requested?
Customers can contact Emaconn with the full model code to request pricing, availability and delivery information.
