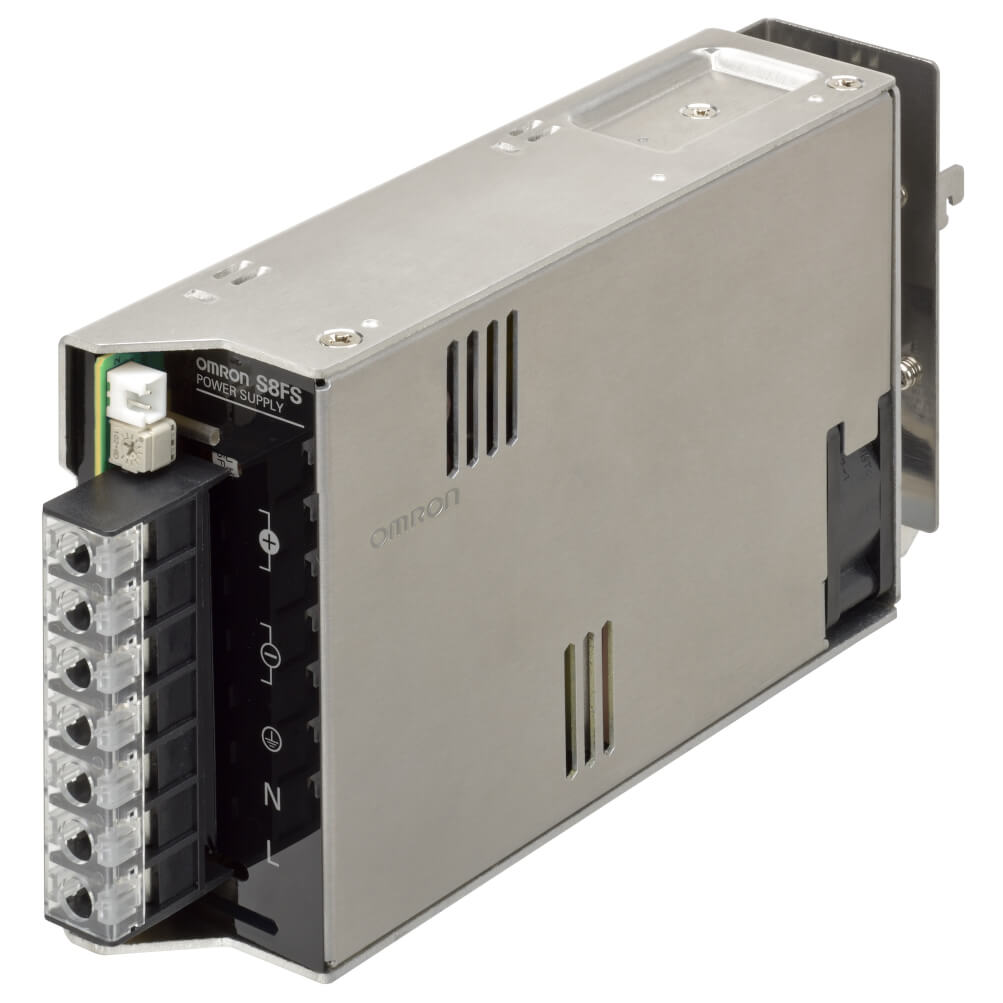

Omron S8FS-G30024CD-500 Switching Power Supply
The Omron S8FS-G30024CD-500 is an enclosed switching power supply developed to deliver reliable 24 VDC power within industrial automation systems. Rated at 300 W and 14 A, this single-phase model is suitable for control panels, production machinery, material-handling systems and OEM equipment. Industrial buyers can contact Emaconn for current pricing, stock availability, estimated lead times and technical product selection support.
Stable 24 VDC Power for Industrial Equipment
Industrial control devices depend on a consistent DC supply to operate correctly. Voltage instability or insufficient current capacity can affect controllers, sensors, relays, communication devices and other connected equipment. The S8FS-G30024CD-500 converts an industrial AC supply into 24 VDC power for compatible control-circuit loads.
The model accepts a rated input voltage of 100 to 240 VAC at 50 Hz, while its allowable AC input range extends from 85 to 264 VAC. An allowable DC input range of 120 to 370 VDC is also specified. These input characteristics allow engineers to evaluate the unit for machinery intended for different industrial power environments.
Technical Specifications
| Specification | Value |
|---|---|
| Product type | Enclosed switching power supply |
| Phase | Single phase |
| Rated power output | 300 W |
| Output voltage | 24 VDC |
| Rated output current | 14 A |
| Rated AC input voltage | 100 to 240 VAC |
| Allowable AC input range | 85 to 264 VAC |
| Allowable DC input range | 120 to 370 VDC |
| Efficiency | 87% |
| Mounting method | DIN rail |
| Terminal type | Forward-facing screw terminals |
| Operating temperature range | -20°C to 70°C |
| Output branches | One |
| Communication port | None |
| Certification note | Version without EAC certification |
Industrial Applications
The 24 VDC output makes this power supply relevant to many standard automation components. It may be used to supply compatible PLC equipment, relays, sensors, indicators, industrial communication devices and control circuits. Every connected load must be checked for voltage, current and starting-current requirements before the system is energised.
Suitable application areas may include:
- Machine and production-line control panels
- Packaging and processing equipment
- Conveyor and material-handling systems
- Factory automation installations
- Industrial monitoring equipment
- OEM machinery and electrical assemblies
- Maintenance and replacement projects
The unit provides one output branch and does not include a communication interface or alarm function. Projects requiring remote power-supply monitoring, multiple protected output channels or network diagnostics may therefore require additional components or another power-supply configuration.
DIN Rail Installation and Panel Integration
DIN rail mounting supports structured installation in industrial enclosures. The forward-facing terminal block can simplify wiring access during panel assembly and maintenance. Installers should still provide sufficient clearance around the unit for wiring, airflow and safe servicing.
Electrical installation should include correctly sized conductors, appropriate input protection and reliable protective grounding. Screw terminals must be tightened according to the specified torque requirements. Output cables should be selected for the expected 14 A load and routed to control voltage drop, electromagnetic interference and heat accumulation.
The stated operating temperature range is -20°C to 70°C. However, available output power can depend on ambient temperature, mounting position and ventilation. Engineers should review the manufacturer’s derating information instead of assuming that full output is available under every cabinet condition.
Important Selection Criteria
Before ordering the S8FS-G30024CD-500, confirm that all connected equipment operates at 24 VDC. Calculate the total continuous load and include starting currents or temporary peak demand. An appropriate design margin can help avoid operating the power supply continuously at its maximum capacity.
The complete part number must also be verified. The “-500” designation identifies a version supplied without EAC certification. This point may be important when equipment is intended for a regulated market or when project documentation requires specific approvals. Buyers should confirm all certification requirements before placing an order.
Other factors include the available DIN rail space, input voltage, terminal arrangement, environmental conditions and required monitoring functions. If the project requires another output voltage, different current capacity or integrated diagnostics, an alternative model should be evaluated.
Omron S8FS-G30024CD-500 Why Source This Power Supply Through Emaconn?
Emaconn supports industrial customers purchasing the S8FS-G30024CD-500 for new installations, maintenance stock and replacement requirements. Customers can request current price information, availability checks, estimated delivery times and quotations based on quantity and destination.
Providing the complete part number, required quantity, delivery country and application details helps the technical sales team review the enquiry accurately. Emaconn can also assist with alternative model evaluation when the requested delivery schedule, certification status or technical configuration does not meet the project requirements.
Explore the Omron industrial automation product range for related components and professional sourcing support. Technical and commercial requirements should always be verified before the purchase order is confirmed.
Conclusion
The Omron S8FS-G30024CD-500 provides 300 W of power with a 24 VDC, 14 A output for compatible industrial automation loads. Its enclosed design, DIN rail mounting and forward-facing screw terminals support organised control-panel integration. Load capacity, input conditions, thermal requirements, certification needs and full model identification must be reviewed before selection. Contact Emaconn to check current stock, request pricing, discuss compatibility or obtain a project quotation.
Omron S8FS-G30024CD-500 Frequently Asked Questions
What is the output voltage of the S8FS-G30024CD-500?
The power supply provides a rated output voltage of 24 VDC.
What are its rated power and current values?
It is rated for 300 W and an output current of 14 A.
Which AC input voltage can it accept?
The rated input is 100 to 240 VAC, with an allowable AC input range of 85 to 264 VAC.
Can this power supply receive a DC input?
Yes. An allowable DC input range of 120 to 370 VDC is specified, subject to the applicable installation requirements.
How is the unit installed?
It is designed for DIN rail mounting inside an appropriate industrial control enclosure.
Does this model include an alarm or communication port?
No. It has no integrated alarm function or communication interface.
What does the “-500” suffix indicate?
It identifies this model as a version supplied without EAC certification.
How can the current price be requested?
Submit the full part number, required quantity and delivery destination to receive an up-to-date quotation.
Can stock availability be checked before ordering?
Yes. Availability should be confirmed at the time of enquiry because inventory conditions can change.
Is support available for bulk orders?
Quantity-based and project-based quotations can be prepared when the required volume and delivery schedule are provided.
How is the estimated lead time determined?
Lead time depends on current availability, order quantity and destination, so it should be confirmed with the quotation.
Can an alternative power supply be evaluated?
Yes. Alternative models can be reviewed according to voltage, current, mounting, certification and delivery requirements.
