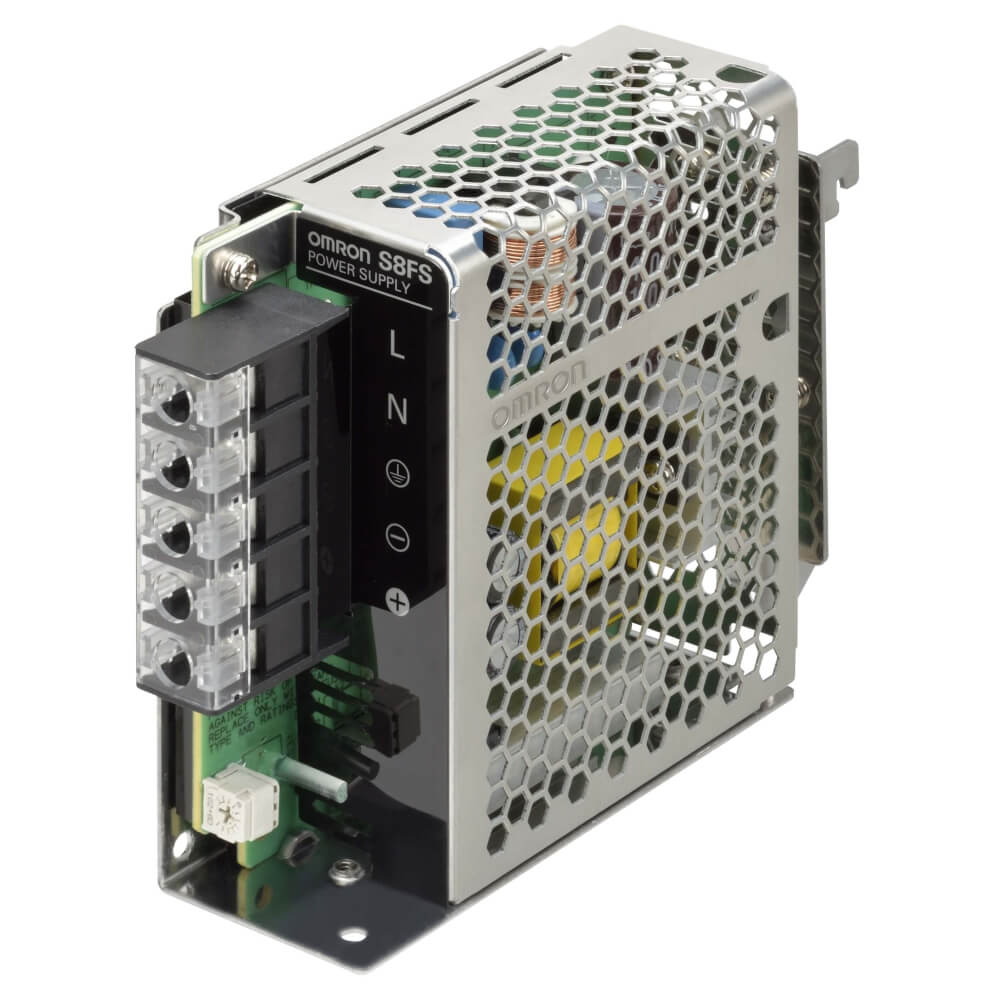

Omron S8FS-G05015CD 50 W 15 VDC DIN Rail Power Supply
The Omron S8FS-G05015CD DIN rail power supply is an enclosed switch-mode unit designed to deliver regulated 15 VDC power in industrial control panels and machinery. It provides 50 W of output power with a rated current of 3.5 A, supporting compatible control electronics, interface devices, indicators, and specialised automation components. Emaconn can provide current pricing, stock information, estimated lead times, quotation support, and assistance with product selection.
Stable 15 VDC Power for Industrial Equipment
The S8FS-G05015CD converts a broad AC input into a regulated 15 VDC output. Its rated input is 100 to 240 VAC at 50 Hz, while the allowable AC range extends from 85 to 264 VAC. This broad range can support machinery manufactured for installation across different international power networks.
An allowable input range of 80 to 370 VDC is also specified. Engineers planning to use a DC input should confirm the relevant wiring, protection, isolation, and installation requirements in the manufacturer’s technical documentation.
The rated output current is 3.5 A, and the total output power is limited to 50 W. Product selection should therefore include both current and power calculations. Continuous consumption, startup peaks, conductor losses, operating temperature, and an appropriate engineering margin must be considered before the unit is approved for an application.
Technical Data for Engineering Evaluation
- Product type: Enclosed switch-mode power supply
- Phase: Single phase
- Rated AC input: 100 to 240 VAC
- Allowable AC input: 85 to 264 VAC
- Allowable DC input: 80 to 370 VDC
- Output voltage: 15 VDC
- Rated output current: 3.5 A
- Output power: 50 W
- Efficiency: 88%
- Mounting method: DIN rail
- Terminal type: Screw terminals
- Temperature range: -20 to 70°C
- Number of output branches: One
- Dimensions: 97 mm wide, 36 mm high, and 99 mm deep
The 88% efficiency rating helps limit conversion losses during normal operation. Nevertheless, generated heat must still be considered in the overall cabinet design. Ventilation, mounting orientation, spacing, surrounding equipment, and actual load conditions can influence the operating temperature of the power supply.
Relevant Industrial Applications
This model can be evaluated for automation panels, packaging machinery, production equipment, testing systems, inspection stations, material-handling systems, and OEM electrical assemblies. It is particularly relevant where connected components require a dedicated 15 VDC source rather than the more common 12 VDC or 24 VDC configurations.
Potential loads may include compatible electronic modules, measurement circuits, interface equipment, indicators, and specialised control devices. The voltage requirement of every connected component must be checked carefully. A 15 VDC supply should not be connected to equipment designed exclusively for another nominal voltage unless the equipment manufacturer explicitly permits it.
DIN rail mounting allows the power supply to be installed alongside terminal blocks, protection devices, relays, and control components. This supports structured panel layouts and can simplify replacement activities when appropriate access and wiring space have been provided.
Important Selection Criteria
Before ordering the Omron S8FS-G05015CD, calculate the total continuous current of all connected loads. The combined requirement must remain within the rated 3.5 A output and 50 W power capacity. Temporary startup demand and future panel expansion should also be included in the assessment.
The available installation space should be compared with the unit dimensions of 97 × 36 × 99 mm. Engineers should verify DIN rail compatibility, cable entry points, terminal accessibility, required spacing, enclosure depth, and ventilation conditions.
For replacement projects, confirm the complete model code rather than relying only on the S8FS-G series designation. Similar models may provide different output voltages, current ratings, mounting arrangements, or terminal configurations. The electrical and mechanical details must match the existing system requirements.
Omron S8FS-G05015CD Installation and Maintenance Considerations
The power supply should be installed inside an appropriate industrial enclosure by qualified personnel. Power must be isolated before mounting, wiring, inspection, or replacement work. Input and output conductors should be sized according to current, cable length, terminal requirements, and applicable electrical standards.
During commissioning, technicians should verify input voltage, output polarity, measured output voltage, terminal tightness, and operating current. The actual voltage should also be checked at the connected load, especially when long output cables are used.
Preventive maintenance can include inspecting screw terminals, removing excessive dust, checking airflow, and looking for abnormal heat, noise, odour, or discoloration. Recording load current and cabinet temperature may help identify operating conditions that could affect service life.
Source the S8FS-G05015CD with Emaconn Support
Emaconn supports international industrial customers sourcing the Omron S8FS-G05015CD for new machinery, maintenance inventory, equipment upgrades, and replacement requirements. Procurement assistance may include current price checks, product availability, estimated lead time, formal quotations, and international supply coordination.
When submitting an enquiry, include the full part number, required quantity, delivery destination, and preferred schedule. Sharing the connected load and application requirements can also help confirm whether the 15 VDC and 3.5 A configuration is technically appropriate.
If this model is unavailable or does not meet the application requirements, alternative Omron power supplies can be evaluated. Any proposed alternative should be compared for output voltage, current capacity, input range, dimensions, terminal design, and mounting method.
Additional power supplies and industrial automation components can be reviewed on the Emaconn Omron product page. Technical compatibility should be confirmed before an order is finalised.
Conclusion
The Omron S8FS-G05015CD DIN rail power supply provides a regulated 15 VDC output at 3.5 A with a total power rating of 50 W. Its enclosed construction, screw terminals, broad allowable input range, and DIN rail mounting make it suitable for compatible industrial control-panel applications. Before purchasing, verify the load profile, nominal voltage, temperature conditions, physical dimensions, wiring requirements, and complete model code. Contact Emaconn to request current pricing, check availability, obtain a quotation, or discuss a technically suitable alternative.
Omron S8FS-G05015CD Frequently Asked Questions
What type of power supply is the S8FS-G05015CD?
It is an enclosed, single-phase switch-mode power supply designed for DIN rail installation.
What output voltage does this model provide?
The unit provides a regulated nominal output of 15 VDC.
What is the rated output current?
Its rated output current is 3.5 A, with a total output power rating of 50 W.
What AC input range can be used?
The rated input is 100 to 240 VAC, while the allowable AC input range is 85 to 264 VAC.
Does the S8FS-G05015CD support a DC input?
An allowable DC input range of 80 to 370 VDC is specified. Installation conditions must be verified before using a DC source.
How is the unit mounted?
It is designed to be mounted on a compatible DIN rail inside an appropriate industrial enclosure.
Can it power a 12 VDC or 24 VDC device?
Not normally. Connected equipment must be compatible with a 15 VDC supply unless its manufacturer specifies a wider acceptable voltage range.
How can the current price be obtained?
Submit the complete product code, required quantity, and delivery destination to request current commercial information.
How can stock availability be checked?
Availability should be confirmed when requesting a quotation because stock conditions can change over time.
Can a project or volume quotation be prepared?
Yes. Provide the quantity, project schedule, delivery location, and relevant technical requirements for evaluation.
Is international procurement support available?
International supply options can be reviewed according to the destination country, order quantity, and requested delivery schedule.
Can Emaconn help evaluate an alternative model?
Yes. Alternative models can be compared using the required output voltage, current, power, dimensions, terminals, and mounting configuration.
