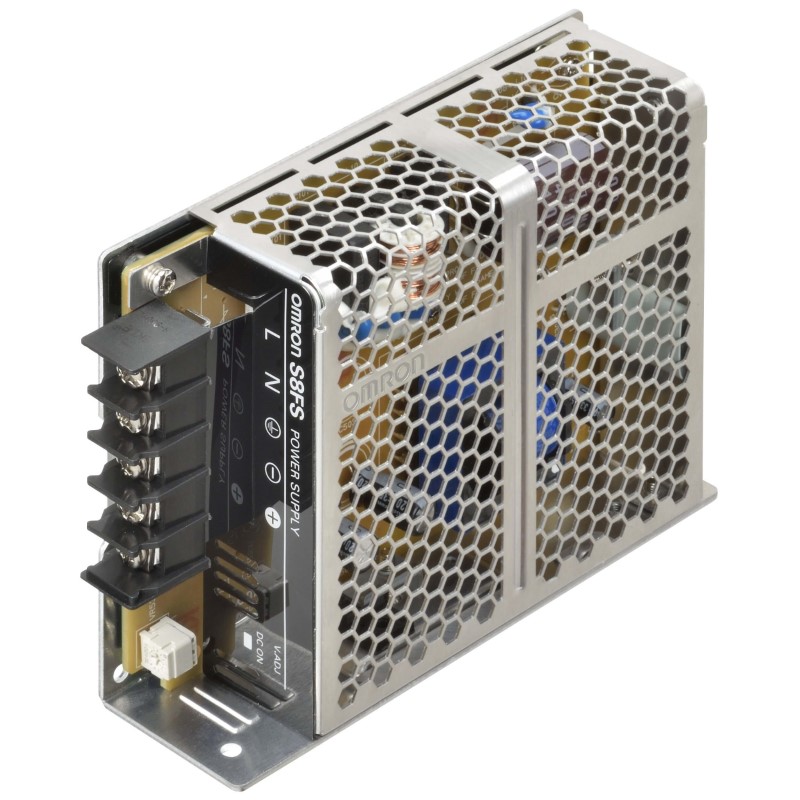

Omron S8FS-C05012J 50W 12VDC 4.2A Switch Mode Power Supply
The Omron S8FS-C05012J is a 50 W switch mode power supply that delivers a regulated 12 VDC output for compatible industrial control devices and machine components. Its rated output current of 4.2 A supports applications requiring more current at a lower DC voltage. The model uses a forward-facing terminal block to provide accessible electrical connections within control panels and equipment enclosures. Contact Emaconn for current pricing, availability, delivery estimates, and product selection support.
Regulated 12 VDC Power for Industrial Systems
Although 24 VDC is widely used in factory automation, many industrial electronic assemblies, communication devices, monitoring components, and specialised machine circuits require a 12 VDC supply. This product provides a dedicated 12 VDC source for applications whose complete electrical demand remains within the available 50 W and 4.2 A capacity.
A suitable power supply must be selected by analysing both nominal consumption and temporary current demand. Equipment with capacitive inputs, motors, relays, or other switching loads may draw more current during startup. Allowing an appropriate capacity margin can reduce voltage drops and unwanted protection activation.
Technical Characteristics
- Power rating: 50 W
- Rated output voltage: 12 VDC
- Rated output current: 4.2 A
- AC input range: Single-phase 85 to 264 VAC
- DC input range: 120 to 370 VDC under specified conditions
- Output adjustment: Approximately -10% to +10%
- Terminal direction: Terminal block facing forward
- Output indicator: Green LED
- Cooling method: Natural air cooling without a fan
- Operating temperature: -20 to 60°C with applicable derating
The wide AC input range allows integration into machinery designed for different industrial mains voltages. If the unit will operate from a DC input, polarity, safety conditions, and input-voltage derating must be confirmed from the official manufacturer documentation.
Application Areas for the 12 VDC Output
The Omron S8FS-C05012J can be considered for production monitoring devices, industrial displays, test systems, control interfaces, compact communication equipment, OEM electronic assemblies, and auxiliary machine circuits. It may also supply multiple compatible 12 VDC loads when the combined current remains within the permitted rating.
Engineers should confirm that every connected device is designed specifically for 12 VDC. A 12 V model must not be used as a direct replacement for a 24 V power supply merely because the physical appearance or series designation is similar. Output voltage, polarity, current capacity, terminal layout, and load behaviour must all match the application.
Overload and Overvoltage Response
Integrated overload protection operates with automatic reset. When an excessive load is removed, the output can return to normal operation. Repeated overload events should be treated as a system issue because they may indicate short-circuit conditions, faulty equipment, or insufficient power capacity.
The overvoltage protection function shuts down the output when the protection threshold is reached. Input power must be switched off and reapplied to reset the power supply. The machine design should also incorporate correctly rated upstream circuit protection and any load-specific protective devices required by the application.
Series and Backup Configuration
Series operation is supported for up to two appropriate units when external diodes are used. Standard parallel operation is not supported. A backup arrangement may be possible with external diodes, but the complete circuit must be designed in line with Omron instructions.
If system availability is critical, engineers should evaluate the fault response, isolation method, monitoring requirements, and maintenance procedure before implementing a backup circuit. A dedicated redundancy solution may be more suitable for installations where an interruption would result in significant production losses.
Installation Inside an Equipment Enclosure
The forward-facing terminal block supports convenient wiring access during assembly and maintenance. The power supply should be installed in the specified orientation with adequate space for conductors and natural ventilation. Heat-producing components should not restrict airflow or raise the local temperature beyond acceptable operating conditions.
During startup, technicians should verify the input source, protective earth connection, terminal tightness, output polarity, and actual output voltage before connecting sensitive devices. The total load current should then be measured under representative operating conditions. Temperature and input-voltage derating must be applied where required.
Choosing Between Available S8FS-C Models
The correct model depends on the required output voltage and current rather than power rating alone. This 12 VDC version should be selected only for compatible 12 V loads. Applications requiring 24 VDC must use an appropriate 24 V model, while circuits with a continuous demand close to 4.2 A may require a higher-capacity alternative.
The complete model code should be confirmed before purchase because the S8FS-C range includes various wattages, output voltages, and mechanical arrangements. The J suffix identifies the forward-facing terminal block version. Buyers should verify that this terminal direction is suitable for the available wiring space.
Purchase and Supply Support from Emaconn
Emaconn supports industrial buyers, system integrators, and machine manufacturers with current price requests, stock checks, estimated lead times, and technical model evaluation. Commercial assistance is available for single replacements, maintenance inventory, planned projects, and volume requirements.
For an accurate quotation, provide the exact part number, quantity, delivery location, required schedule, and relevant application information. Alternative products can also be investigated when the requested model or delivery conditions do not match the project. Explore the Omron industrial automation product range for related components and procurement opportunities.
Omron S8FS-C05012J Conclusion
The Omron S8FS-C05012J is a 50 W industrial switch mode power supply designed to deliver 12 VDC at a rated current of 4.2 A. Its broad input range, adjustable output, forward-facing terminals, protection functions, and fanless cooling support integration into suitable control and electronic systems.
Before ordering, confirm the required output voltage, load calculation, startup current, mounting conditions, terminal access, environmental derating, and applicable approvals. Contact Emaconn to verify compatibility and request current pricing, stock information, or a project quotation.
Omron S8FS-C05012J Frequently Asked Questions
What output voltage does the Omron S8FS-C05012J provide?
It provides a regulated 12 VDC output with a rated current of 4.2 A and a total output rating of 50 W.
Can this model replace a 24 VDC power supply?
No. It should only supply devices designed for 12 VDC unless the complete circuit is specifically redesigned and verified.
What AC input range is supported?
The supported single-phase AC input range is 85 to 264 VAC, subject to the manufacturer’s installation conditions.
Can several 12 VDC devices share this power supply?
Yes, provided their combined continuous and startup current remains within the available capacity after derating.
Is the output voltage adjustable?
Yes. It can be adjusted approximately -10% to +10%, but the measured voltage must remain safe for every connected device.
How is the unit cooled?
It uses fanless natural air cooling. Adequate enclosure ventilation and installation clearance are therefore important.
What happens during an overload?
The overload protection activates and resets automatically after the excessive load or fault condition is removed.
How can the current price be obtained?
Submit the complete product code, required quantity, and delivery destination to request an up-to-date quotation.
Is stock status fixed?
No. Availability can change, so the current stock position should be verified when preparing an order.
Can delivery information be requested before purchase?
Yes. An estimated lead time can be provided after the quantity, destination, and current supply conditions are reviewed.
Are alternative 12 VDC models available?
Alternative models may be evaluated when different current capacity, mounting, dimensions, or approvals are required.
Does Emaconn support volume procurement?
Yes. Project-based and volume quotations can be prepared for OEM production, maintenance planning, and industrial installations.
