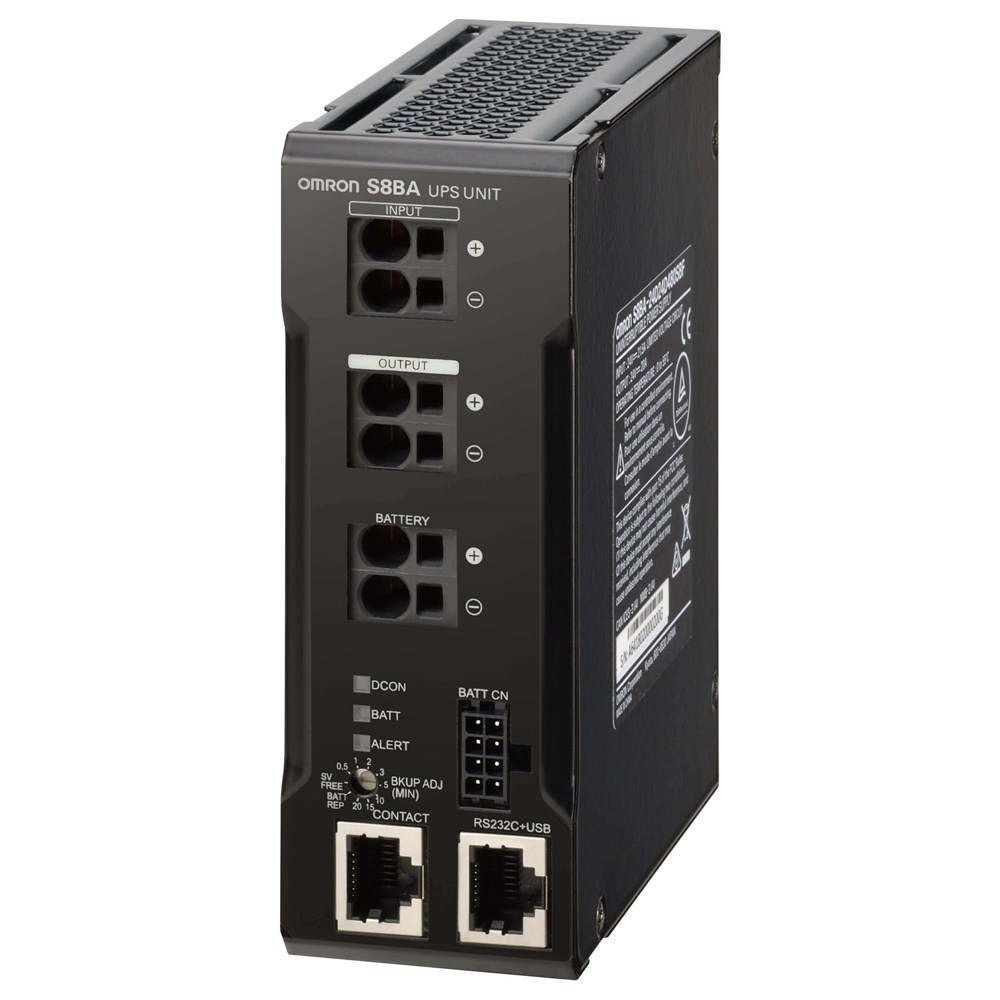

Omron S8BA-24D24D960SBF 24 VDC 960 W Uninterruptible Power Supply
The Omron S8BA-24D24D960SBF is a high-capacity DC-DC uninterruptible power supply developed to protect industrial computers, controllers and automation equipment against momentary power interruptions and unexpected supply failures. With its 960 W capacity and separated battery configuration, the unit supports demanding industrial systems requiring reliable backup power and flexible control panel installation.
Omron S8BA-24D24D960SBF Reliable Backup for High-Power Industrial Loads
Power interruptions can stop production processes, interrupt data communication and prevent industrial computers or controllers from completing a safe shutdown. This UPS provides uninterrupted switching between normal and backup operation, helping connected equipment remain operational when the primary DC power supply is temporarily unavailable.
The model operates with a rated input voltage of 24 VDC and accepts an input voltage range from 23 to 28 VDC. It provides a rated output current of 40 A and a total capacity of 960 W. During normal operation, the input voltage is transferred directly to the output. During backup operation, the output voltage remains within the specified range of 21 to 28 VDC.
Omron S8BA-24D24D960SBF Separated Lithium-Ion Battery Configuration
The separated structure allows the UPS control unit and compatible battery unit to be positioned according to panel layout and installation requirements. The lithium-ion battery unit has a rated voltage of 25.2 VDC and a rated capacity of 7800 mAh. Under the manufacturer’s specified initial conditions at 25°C, the system can deliver approximately six minutes of backup at a constant rated power load.
The battery can be replaced by the user and supports hot swapping. A battery life counter assists maintenance teams in monitoring service life and planning replacement activities before backup performance becomes insufficient.
Omron S8BA-24D24D960SBF Key Technical Features
- Rated capacity: 960 W
- Rated input voltage: 24 VDC
- Input voltage range: 23 to 28 VDC
- Rated output current: 40 A
- Backup output voltage range: 21 to 28 VDC
- Uninterrupted switching operation
- Separated lithium-ion battery system
- Rated battery capacity: 7800 mAh
- Approximate backup time: six minutes at rated load
- Push-in input and output terminal blocks
- DIN rail mounting design
- Natural air cooling
- RS-232C and I/O signal interfaces
Industrial Application Areas
This UPS can be used with industrial computers, PLC systems, machine controllers, semiconductor equipment, production lines, inspection machines and factory automation panels. Its high output capacity makes it particularly suitable for applications that include multiple connected devices or equipment with greater power requirements.
Product Selection and Installation
Before selecting the unit, engineers should calculate the total connected load and evaluate the required backup duration, compatible battery unit, panel dimensions and ambient conditions. Installation and wiring must comply with Omron’s technical instructions. For current pricing, availability, delivery information and technical selection assistance, contact Emaconn.
