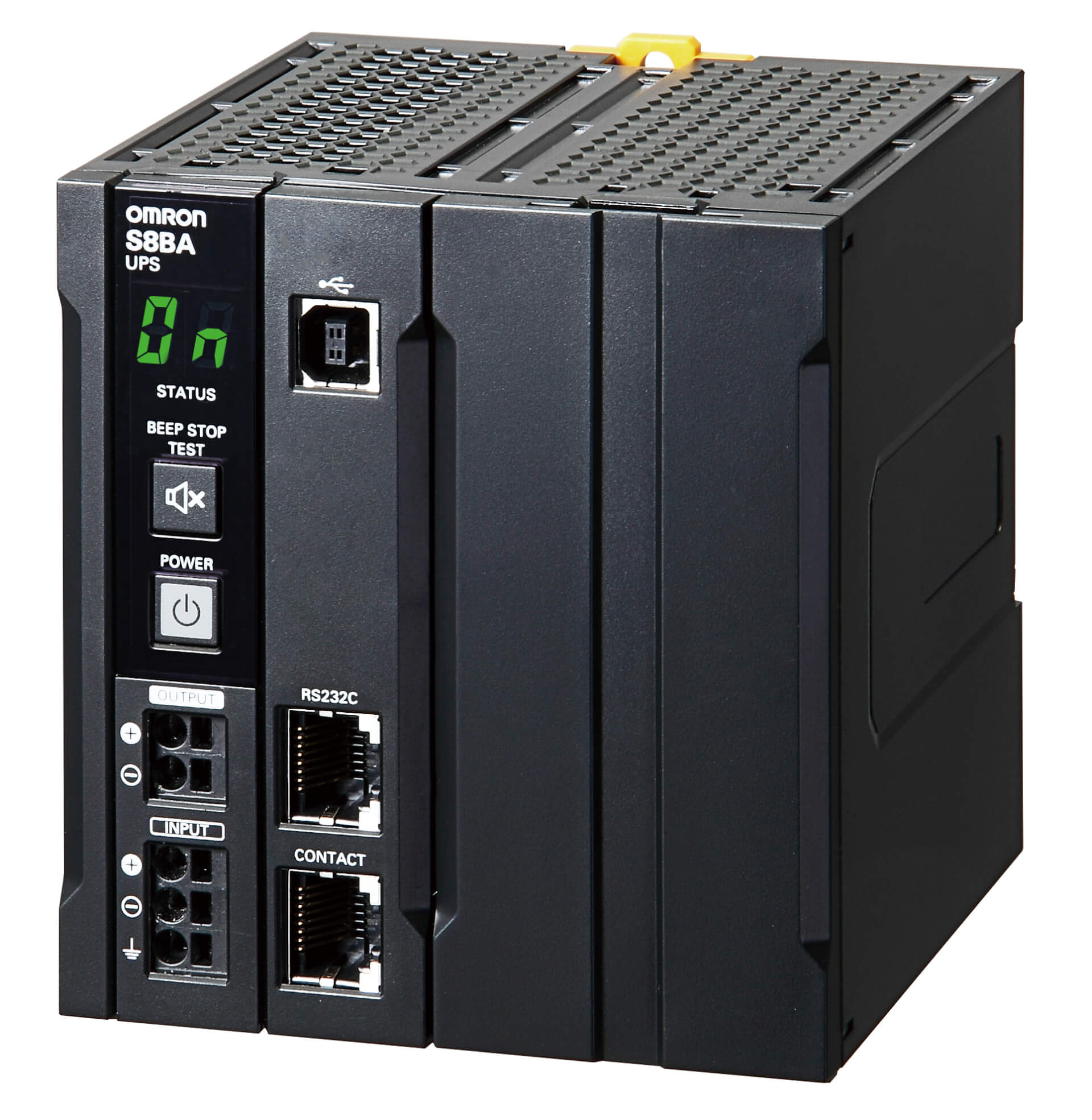

Omron S8BA-24D24D240LF 24 VDC 240 W Industrial UPS
The Omron S8BA-24D24D240LF is a DC-to-DC uninterruptible power supply designed to protect industrial computers, controllers and automation equipment against momentary voltage drops and power interruptions. It operates from a rated 24 VDC input and provides a rated 24 VDC output with 10 A current and 240 W capacity.
The unit combines a compact DIN rail mounting structure with an integrated lithium-ion battery. This design simplifies installation inside industrial control cabinets by eliminating the need for a separately mounted battery unit. When the input power is interrupted, the UPS changes to battery backup operation without an interruption in its output.
Omron S8BA-24D24D240LF Backup Power for Industrial Control Systems
Power disturbances can cause controllers and industrial computers to stop unexpectedly, potentially resulting in lost production information, interrupted processes or difficult system restarts. This UPS provides temporary backup power that allows connected equipment to continue operating or complete a controlled shutdown procedure.
At 25°C with a new and fully charged battery, the specified backup time is approximately six minutes at the rated 240 W load. The actual backup duration depends on the connected load, battery age, ambient temperature, charging condition and selected operating settings.
Technical Specifications
| Product series | Omron S8BA-LF |
|---|---|
| UPS configuration | DC-to-DC with integrated battery |
| Rated input voltage | 24 VDC |
| Rated output voltage | 24 VDC |
| Rated output current | 10 A |
| Rated capacity | 240 W |
| Battery technology | Lithium-ion |
| Charging time | Approximately 4 hours |
| Backup time at rated load | Approximately 6 minutes |
| Mounting method | DIN rail |
| Connection type | Push-in terminal blocks |
Battery Management and Preventive Maintenance
An automatic battery check function helps verify the battery condition, while the battery life counter supports planned maintenance. The lithium-ion battery is replaceable by the user and supports hot swapping when the official replacement procedure is followed. Battery service life varies according to temperature and operating conditions, so suitable cabinet ventilation should be maintained.
Omron S8BA-24D24D240LF Suitable Application Areas
- Industrial computers and panel PCs
- PLC and machine control systems
- Production monitoring equipment
- Packaging and processing machinery
- Automated assembly systems
- Industrial communication equipment
Communication and Control Functions
The UPS includes RS-232C, USB and I/O signal interfaces for system monitoring and shutdown coordination. These communication options can help industrial computers and controllers respond appropriately when backup operation begins. Interface compatibility, communication settings and software requirements should be confirmed before implementation.
Installation Considerations
System designers should verify the total load, input voltage stability, required backup duration and available installation space. Wiring, circuit protection, grounding, ventilation and mounting clearances must follow the official Omron documentation and applicable electrical standards.
Order Omron UPS Products from Emaconn
Contact Emaconn for current pricing, stock availability, delivery information and technical selection assistance. More information about industrial automation products is available on the Omron product page.
Frequently Asked Questions
What is the rated output capacity?
The UPS provides a rated 24 VDC output, 10 A current and 240 W capacity.
Does it contain an integrated battery?
Yes. The unit contains an integrated rechargeable lithium-ion battery.
What is the specified backup time?
The initial backup time is approximately six minutes at the rated 240 W load and an ambient temperature of 25°C.
Can the battery be replaced without stopping the connected system?
The battery supports hot swapping when replacement is completed according to Omron’s prescribed procedure and operating requirements.
