Omron PYF14A-N Relay Socket: Technical Guide, Applications and Installation
Maintenance teams know the difference between components that merely survive and ones that genuinely perform over the long haul. The Omron PYF14A-N Relay Socket falls firmly in the second category, making it a frequent first choice for MY4-type power relay mounting environments.
Component selection rarely happens in isolation. Alongside this relay or switch, many integrators also evaluate Omron Omron Sensor technologies — inductive proximity, photoelectric, and ultrasonic models that can directly trigger the very outputs this product controls.

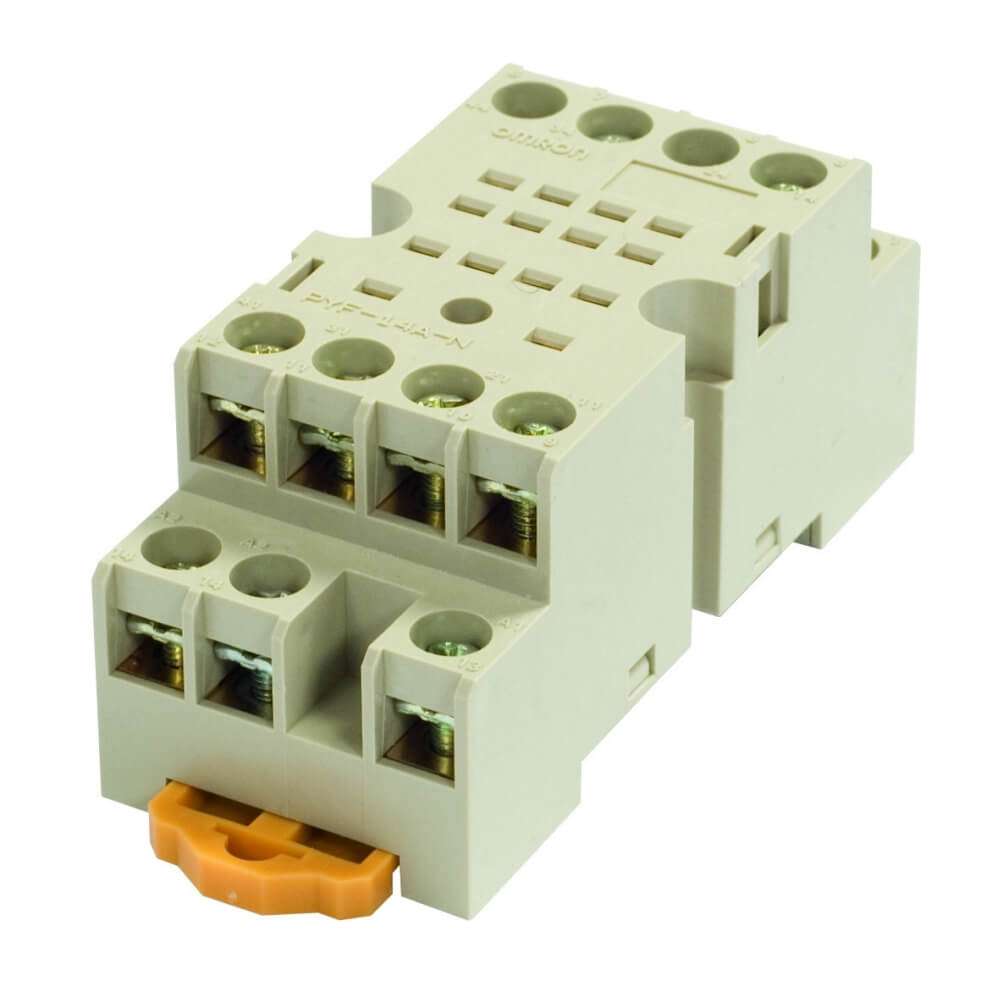

Omron PYF14A-N — Product Profile
The Omron PYF14A-N is a Relay Socket, built to handle MY4-type power relay mounting reliably over a long service life. Key engineering features include compatible with my4in series, screw terminals, and the unit mounts via din rail.
On the bench, compatible with my4in series, screw terminals stands out immediately. The specifications align with the control voltage standards used across manufacturing, building automation, and process control industries, reducing the need for additional conversion stages.
Technical Data Summary
The table below summarises the main technical parameters of the Omron PYF14A-N. For full specifications, always refer to the official Omron product datasheet, as application-specific derating may apply.
| Parameter | Value |
|---|---|
| Product Type | Relay Socket |
| Contacts / Channels | 14-pin |
| Contact Current | 10 A |
| Key Features | Compatible with MY4IN series, screw terminals |
| Mounting | DIN rail |
| Operating Temperature | -25 °C to +70 °C |
| Compatible Socket | MY4IN series |
Where This Product Fits
The Omron PYF14A-N Relay Socket is commonly specified for the following applications:
- My4-type power relay mounting
- 14-pin control panels
Across these use cases, the consistent thread is a need for dependable switching over a large number of operations, often in environments where an unplanned fault would create significant disruption. The Omron PYF14A-N is designed with exactly those conditions in mind.
The Omron PYF14A-N is designed to be used with MY4IN series. Using a non-compatible socket model can compromise contact pressure and reduce overall service life, so always verify socket compatibility before ordering.
Practical Installation Tips
The Omron PYF14A-N Relay Socket follows standard DIN rail mounting practice. Before inserting the unit into its socket or fixing it to the rail, always verify the circuit is fully de-energised. Check that cable cross-sections are appropriate for the load, and after commissioning, mark the panel clearly with the device type and rated voltage for future maintenance reference.
For ongoing maintenance, periodically inspect for contact discolouration, check terminal screws for loosening, and look for any signs of heat stress on the housing. Catching these early avoids the much larger cost of an unplanned production stop.
Performance You Can Rely On
From a total cost of ownership perspective, the Omron PYF14A-N Relay Socket makes financial sense even when its purchase price is higher than alternatives. Reduced unplanned downtime, fewer replacement cycles, and lower maintenance labour costs add up to a clear advantage over the operational lifetime of a machine.
Frequently Asked Questions
What is the difference between the Omron PYF14A-N and a mechanical contactor?
The Omron PYF14A-N Relay Socket is designed for panel-level signal and load switching at the current ratings specified. A contactor is built for direct motor starting at higher currents. For applications within the rated capacity of the Omron PYF14A-N, it offers faster switching, longer life, and a smaller footprint than a contactor.
How does temperature affect the Omron PYF14A-N?
Like all electromechanical devices, performance can be affected at the extremes of the operating temperature range. The Omron PYF14A-N is rated for use across a defined ambient temperature range — consult the datasheet for precise limits and any derating requirements at elevated temperatures.
Can I mount multiple Omron PYF14A-N units side by side on a DIN rail?
Yes. The Omron PYF14A-N Relay Socket is designed for standard DIN rail assembly with adjacent units. Ensure adequate total load current is within the rail and busbar capacity, and that enclosure ventilation is sufficient for the combined heat dissipation.
Does the Omron PYF14A-N include a test facility?
Depending on the model variant, some Omron relay sockets include a manual test button or push-to-test function. Check the specific socket model specified for the Omron PYF14A-N to confirm whether this feature is available.
How long is the warranty on the Omron PYF14A-N?
Omron provides a standard 12-month manufacturer warranty on products purchased through authorised distributors. Extended warranty options may be available — contact your local Omron distributor for details.
