Omron PYF-14-PU Push-In Relay Socket: Technical Guide, Applications and Installation
Picking the right component for a control panel takes more than scanning a catalogue. The Omron PYF-14-PU is a Push-In Relay Socket that has earned its place on the shortlist of engineers who value long service life over a bargain price — particularly in fast-installation projects applications.
Omron’s product range extends well beyond relays and switches. The company’s Omron Sensor portfolio covers inductive, photoelectric, and capacitive detection technologies — often integrated into the same panel alongside units like this one, creating a fully cohesive control system.

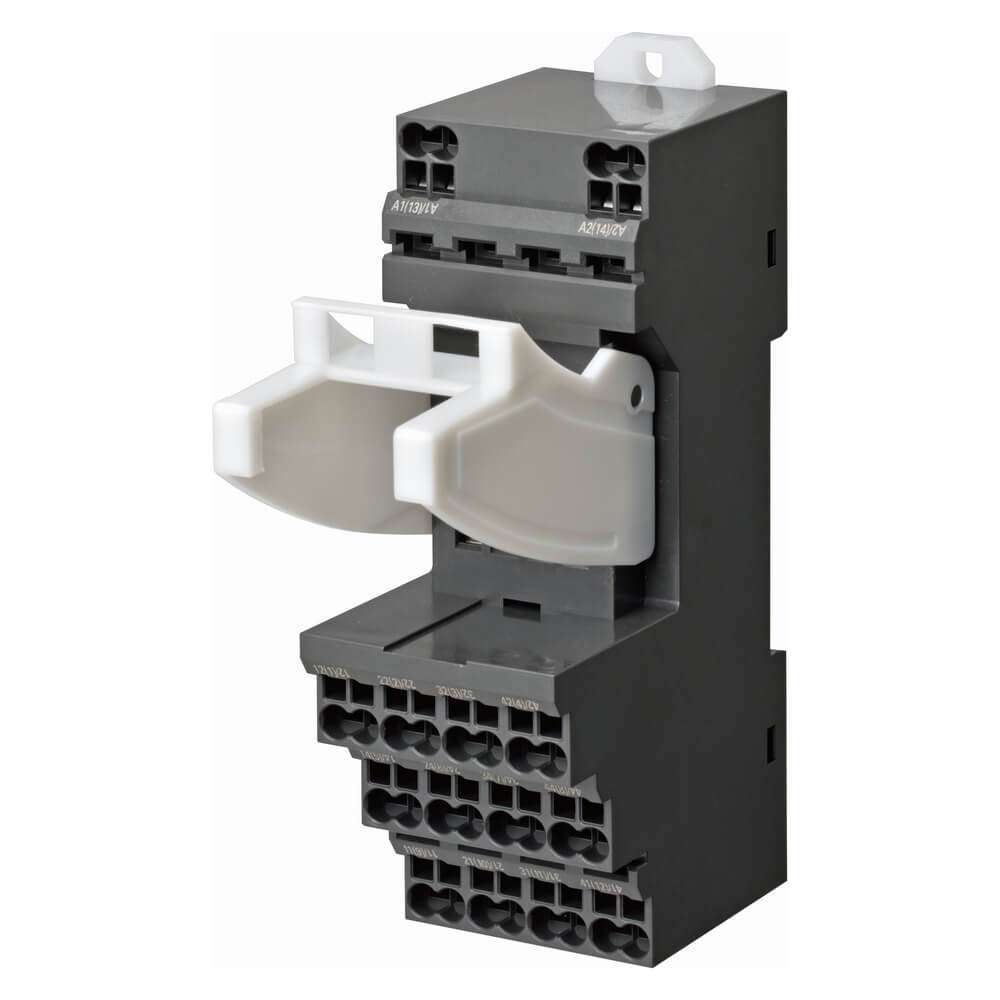

What Is the Omron PYF-14-PU Push-In Relay Socket?
The Omron PYF-14-PU is a Push-In Relay Socket, built to handle fast-installation projects reliably over a long service life. Key engineering features include push-in terminals cut wiring time by up to 50%, and the unit mounts via din rail.
What separates this unit from generic alternatives is in the details: push-in terminals cut wiring time by up to 50%. making it straightforward to match to existing control voltage buses without additional transformers or converters.
Technical Specifications
The table below summarises the main technical parameters of the Omron PYF-14-PU. For full specifications, always refer to the official Omron product datasheet, as application-specific derating may apply.
| Parameter | Value |
|---|---|
| Product Type | Push-In Relay Socket |
| Contacts / Channels | 14-pin |
| Contact Current | 10 A |
| Key Features | Push-in terminals cut wiring time by up to 50% |
| Mounting | DIN rail |
| Operating Temperature | -25 °C to +70 °C |
| Compatible Socket | MY4IN series |
Where Is It Used?
The Omron PYF-14-PU Push-In Relay Socket is commonly specified for the following applications:
- Fast-installation projects
- Series production panel building
Across these use cases, the consistent thread is a need for dependable switching over a large number of operations, often in environments where an unplanned fault would create significant disruption. The Omron PYF-14-PU is designed with exactly those conditions in mind.
The Omron PYF-14-PU is designed to be used with MY4IN series. Using a non-compatible socket model can compromise contact pressure and reduce overall service life, so always verify socket compatibility before ordering.
Installation Notes
When mounting the Omron PYF-14-PU Push-In Relay Socket in a panel, pay attention to three things: the socket or rail type must be the correct Omron-specified match; the terminal wiring must use appropriate cable gauge; and there must be enough vertical clearance to allow the unit to be removed for service without disturbing adjacent wiring. Getting these details right at installation saves considerable time later.
For ongoing maintenance, periodically inspect for contact discolouration, check terminal screws for loosening, and look for any signs of heat stress on the housing. Catching these early avoids the much larger cost of an unplanned production stop.
Why Choose the Omron PYF-14-PU?
The case for choosing the Omron PYF-14-PU Push-In Relay Socket is not built on marketing alone. It rests on measurable factors: documented mechanical and electrical lifespan ratings, certifications that satisfy CE and UL requirements, and a global spare parts network that means you can source a replacement quickly when a unit eventually reaches end of life.
