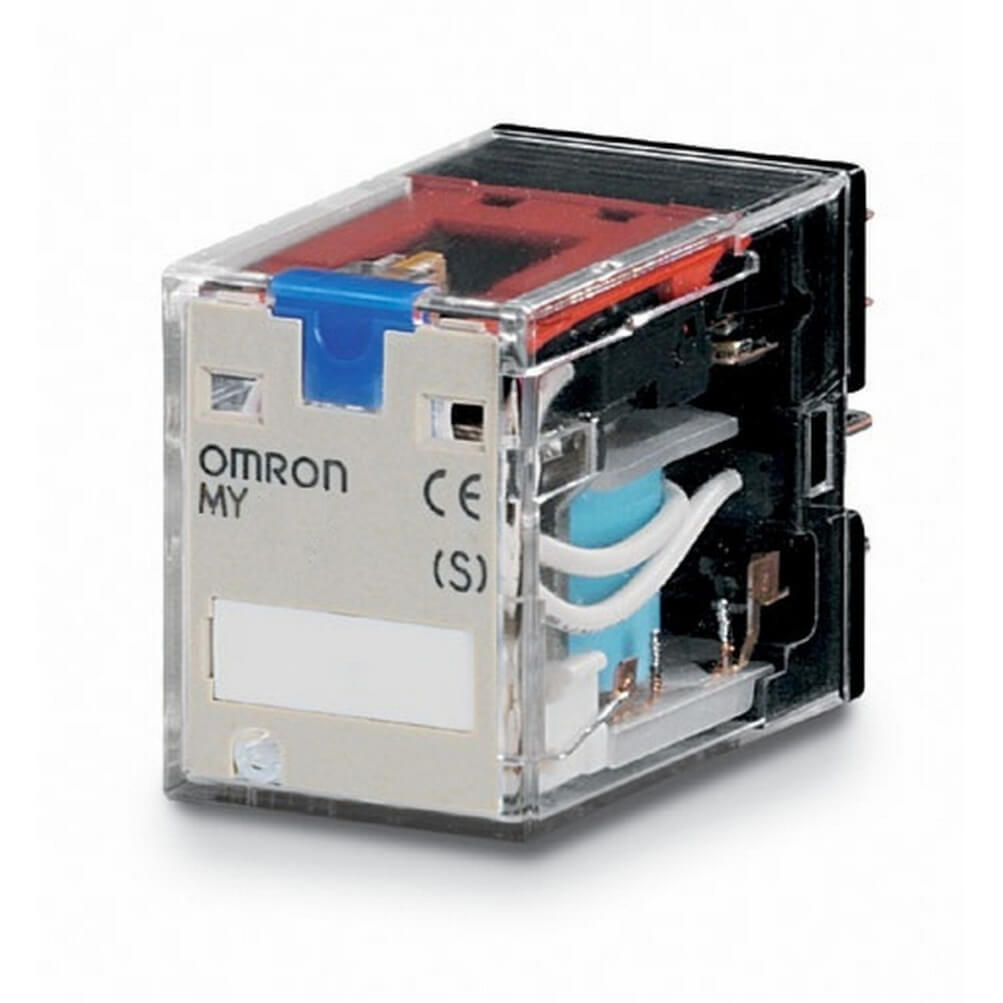

Omron MY4ZN 24VDC (S) Miniature Power Relay Guide
The Omron MY4ZN 24VDC (S) miniature power relay is a practical choice for control panels, automation systems, machine interfaces, and general-purpose switching circuits where dependable multi-pole operation is required. Designed as a plug-in relay with a 14-pin configuration, this model belongs to Omron’s MY relay family and is built around a 4PDT contact arrangement. That means one relay can control four independent changeover circuits, making it useful in applications where compact wiring, clear diagnostics, and repeatable switching are important.
Technical Overview
The MY4ZN 24VDC (S) uses a 24 VDC coil and features bifurcated contacts. Bifurcated contacts are especially valuable in low-level signal switching because each contact point is split, helping improve contact reliability when compared with a single contact surface in sensitive circuits. This makes the relay suitable for interface circuits, signal routing, auxiliary control, safety-related indication circuits, and panel logic where a stable contact transition is expected.
Its plug-in terminal structure allows the relay to be installed into compatible sockets, which simplifies replacement during maintenance. Instead of rewiring the full circuit, technicians can remove the relay body and insert a replacement unit. In industrial environments, this can reduce downtime and improve service efficiency.
Why the 24 VDC Coil Matters
A 24 VDC control voltage is widely used in industrial automation because it offers a balanced combination of safety, compatibility, and availability. Many PLC outputs, sensor circuits, and control panel supplies operate at 24 VDC, so the Omron MY4ZN 24VDC (S) fits naturally into modern control architectures. The model also includes mechanical and LED indication, helping maintenance teams visually confirm relay status during commissioning or troubleshooting.
Common Applications
This relay is commonly considered for machine control panels, automation interface circuits, pump and motor auxiliary control, alarm circuits, HVAC control boards, test benches, and manufacturing equipment. Its 4PDT contact structure makes it suitable when several signals must change state at the same time. The transparent case and status indicators also support easier inspection in crowded electrical cabinets.
Installation and Selection Notes
When selecting this relay, the coil voltage, socket compatibility, contact rating, load type, and operating environment should be reviewed carefully. Resistive and inductive loads behave differently, and inductive circuits may require additional suppression depending on the system design. The relay should also be mounted in a compatible Omron socket and used within its specified temperature, humidity, and electrical limits.
For broader Omron relay options, socket references, and related product categories, visit Omron product information.
FAQ
What is the Omron MY4ZN 24VDC (S) miniature power relay used for?
It is used for general-purpose switching in automation panels, machine control systems, auxiliary circuits, and signal interfaces. Its 4PDT design allows four changeover circuits to be controlled by one relay coil.
Does the Omron MY4ZN 24VDC (S) have bifurcated contacts?
Yes. The relay uses bifurcated contacts, which are useful for improving contact reliability in low-current or signal-level switching applications.
Is the MY4ZN 24VDC (S) suitable for PLC control circuits?
Yes, it can be suitable when the PLC output and the relay coil requirements match. Since it uses a 24 VDC coil, it aligns well with many industrial control systems. The actual design should still be checked against PLC output capacity and load requirements.
What does 4PDT mean on this relay?
4PDT means four-pole double-throw. The relay has four independent changeover contact sets, allowing multiple circuits to switch between normally open and normally closed paths at the same time.
Why is the plug-in design useful?
The plug-in construction makes replacement faster and cleaner. A technician can remove the relay from its socket without rewiring the entire circuit, which is helpful in maintenance-heavy industrial environments.
