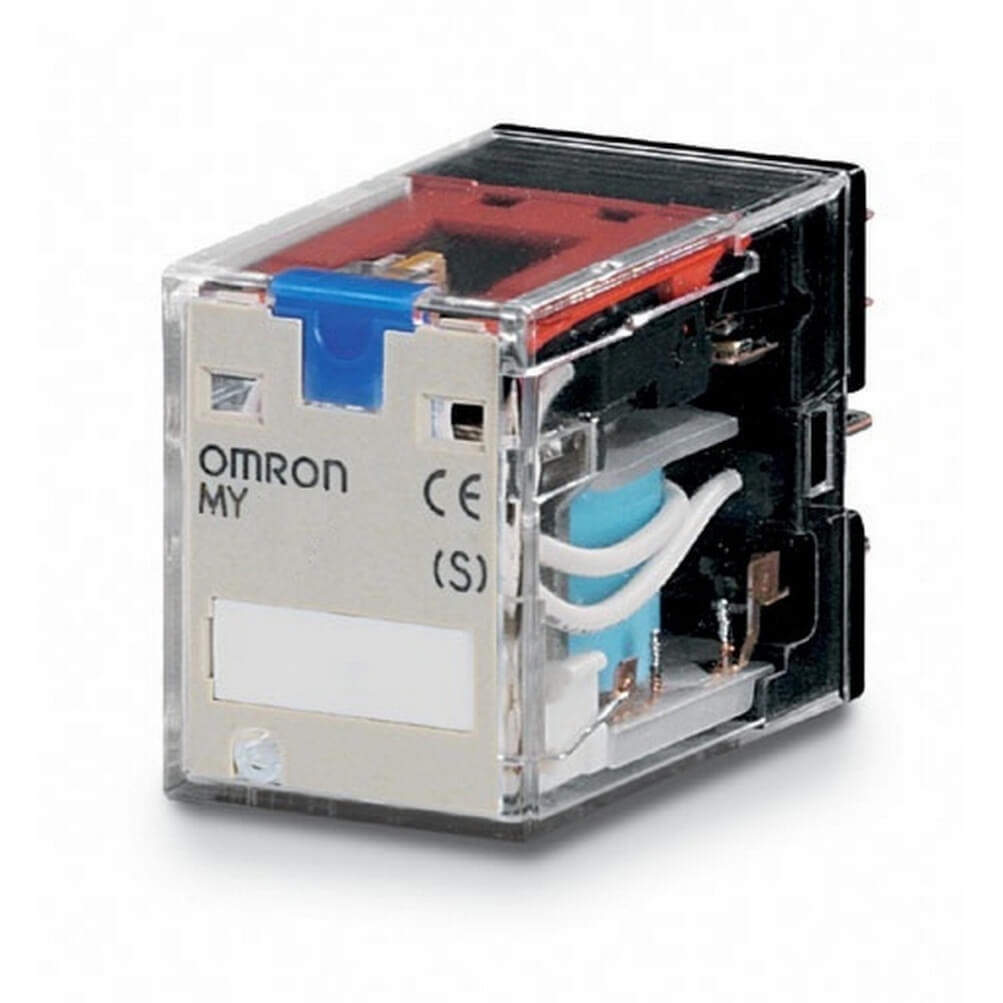

Omron MY4Z 24VDC (S) General Purpose Relay Overview
The Omron MY4Z 24VDC (S) general purpose relay is a compact industrial relay developed for low-voltage DC automation systems, control panels, and machinery switching applications. Its 24 VDC coil configuration and 4PDT contact structure allow multiple circuits to be controlled from a single relay output.
Relay Design and Switching Structure
This relay uses four-pole double-throw contacts, enabling simultaneous switching of several independent circuits. The bifurcated contact design enhances contact reliability, particularly in automation systems where consistent signal transmission is important.
The relay is commonly integrated into PLC-controlled systems, machine interfaces, and electrical control cabinets that use 24 VDC control architecture.
Advantages of 24 VDC Control Relays
24 VDC is one of the most widely used industrial control voltages because it offers compatibility with PLC outputs, sensors, and automation devices. The Omron MY4Z 24VDC (S) is optimized for these environments and provides dependable switching performance in demanding operating conditions.
The relay also supports efficient panel organization due to its plug-in mounting format.
Industrial Usage Areas
This relay is frequently found in:
- PLC interface panels
- Machine control systems
- Conveyor automation
- Industrial safety systems
- Packaging equipment
- Process automation cabinets
- Signal isolation circuits
- Control logic systems
Maintenance and Panel Integration
Socket-based relay installation reduces wiring complexity and allows faster replacement during maintenance operations. Instead of disconnecting multiple terminals, technicians can remove the relay directly from the socket.
The MY4Z 24VDC (S) also includes a mechanical indicator that provides visual confirmation of relay operation during testing and troubleshooting.
Engineering Considerations
Before selecting the relay, engineers should confirm coil voltage requirements, switching load specifications, current ratings, environmental conditions, and socket compatibility. Proper suppression methods may also be required when switching inductive loads.
More Omron relay information is available through Omron industrial relay solutions.
Frequently Asked Questions
What is the Omron MY4Z 24VDC (S) used for?
It is used for industrial automation, PLC interfaces, machine control systems, and multi-circuit switching applications.
Does the relay support DC control systems?
Yes. The relay is specifically designed for 24 VDC coil operation.
Omron MY4Z 24VDC (S) What is the benefit of plug-in relay installation?
Plug-in mounting allows easier maintenance and faster replacement without disconnecting complete field wiring.
Why are bifurcated contacts valuable?
Bifurcated contacts improve switching stability and help maintain reliable electrical contact.
Can this relay be used with PLC outputs?
Yes. It is commonly integrated with PLC-controlled automation systems.
Is the relay suitable for industrial control cabinets?
Yes. The relay is widely used in industrial control panels and automation cabinets.
