Omron MY4N-D2 12VDC Relay Technical Guide for Industrial Automation
The Omron MY4N-D2 12VDC relay is one of the most recognized plug-in power relays used in industrial control systems, automation panels, machine control applications, and electrical switching environments. Known for its dependable switching performance and compact mechanical design, this relay is widely preferred in manufacturing facilities and industrial automation projects where stable operation is critical.
The relay belongs to Omron’s trusted MY series, which has earned a strong reputation for electrical reliability, long mechanical life, and easy maintenance. Engineers and technicians frequently use this relay in PLC systems, conveyor controls, motor switching, and interface applications.
For more information about Omron products, industrial automation professionals often review official compatibility and relay configuration resources.
Technical Specifications of Omron MY4N-D2 12VDC Relay

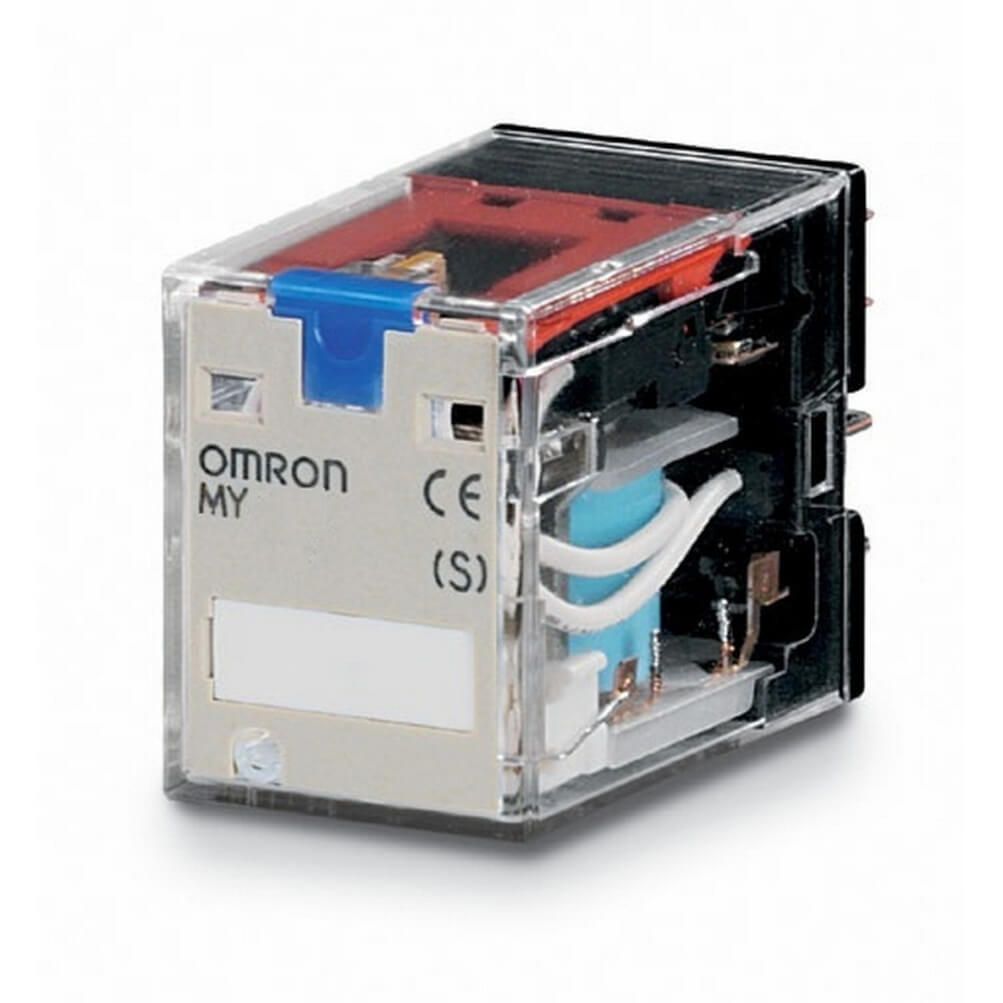

The Omron MY4N-D2 12VDC relay is designed with four changeover contacts and operates using a 12V DC coil voltage. Its transparent housing allows quick visual inspection during operation, which is especially useful in maintenance environments.
- Manufacturer: Omron
- Model: MY4N-D2 12VDC (S)
- Relay Type: Plug-in power relay
- Coil Voltage: 12VDC
- Contact Configuration: 4PDT (4 Form C)
- Rated Load: 5A at 250VAC
- Mechanical Indicator: Yes
- LED Indicator: Built-in
- Mounting Style: Socket mount
- Operating Temperature: -55°C to +70°C
- Insulation Resistance: High dielectric strength for industrial environments
Common Industrial Applications
The Omron MY4N-D2 12VDC relay is frequently installed in automation systems where multiple switching operations are required within a compact footprint. Because of its dependable switching characteristics, it performs efficiently in both low-power and medium-load applications.
Typical applications include:
- Industrial automation panels
- PLC interface systems
- Packaging machinery
- HVAC control systems
- Conveyor automation
- Machine safety circuits
- Motor control interfaces
- Signal switching systems
Its LED operation indicator simplifies troubleshooting and helps technicians detect operational status instantly during maintenance inspections.
Advantages of Using the Omron MY4N-D2 12VDC Relay
One major advantage of the relay is its balance between compact dimensions and switching capability. Industrial engineers often prefer this model because it provides reliable contact switching without occupying excessive cabinet space.
The relay also offers:
- Long electrical endurance
- Stable coil operation
- Quick installation with compatible sockets
- Reduced maintenance downtime
- Excellent vibration resistance
- Clear operational visibility through transparent housing
In demanding industrial environments, relay durability is critical. Omron designed the MY series to maintain consistent performance under continuous operational cycles.
Installation and Wiring Considerations
Proper installation of the Omron MY4N-D2 12VDC relay helps maximize system reliability and operational safety. The relay is commonly mounted onto standardized relay sockets, allowing quick replacement without rewiring the control cabinet.
When wiring the relay, technicians should verify:
- Correct DC coil polarity
- Appropriate load ratings
- Secure terminal tightening
- Environmental protection against moisture and dust
- Compatibility with connected PLC outputs
Using surge suppression devices can also extend relay lifespan in inductive load applications.
Why Omron Relays Are Trusted Worldwide
Omron has become a globally recognized brand in industrial automation because of its emphasis on reliability, product consistency, and engineering precision. The MY series remains popular across factories, energy systems, and infrastructure projects because it offers dependable switching performance with minimal operational issues.
The Omron MY4N-D2 12VDC relay continues to be widely selected by automation integrators seeking a reliable electromechanical relay solution for control systems.
Frequently Asked Questions
What is the primary function of the Omron MY4N-D2 12VDC relay?
The relay is designed to electrically switch circuits within industrial automation systems. It allows low-power control signals to safely operate higher-power electrical loads in machinery and control panels.
Does the Omron MY4N-D2 12VDC relay include an LED indicator?
Yes. The relay includes a built-in LED indicator that visually confirms coil energization, making diagnostics and maintenance easier for technicians.
Where is the Omron MY4N-D2 12VDC relay commonly used?
This relay is commonly found in factory automation systems, PLC cabinets, HVAC systems, packaging equipment, conveyor lines, and machine control applications.
Can the relay handle industrial environments?
Yes. The relay is designed for industrial operating conditions and provides strong resistance against vibration, electrical stress, and temperature fluctuations.
What contact configuration does this relay use?
The relay uses a 4PDT contact arrangement, also called 4 Form C, which allows multiple independent switching operations within one compact device.
Is socket mounting supported?
Yes. The relay is specifically designed for socket mounting, enabling fast replacement and simplified maintenance procedures in industrial control panels.
Why do engineers prefer Omron MY series relays?
Engineers value the MY series because of its proven reliability, long service life, easy installation, and stable switching performance across industrial applications.
