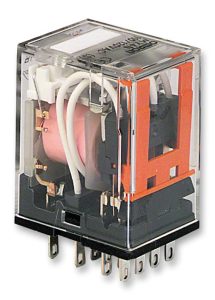

Omron MY4IN 12VDC (S) Miniature Power Relay Guide
The Omron MY4IN 12VDC (S) miniature power relay is a versatile four-pole plug-in relay designed for industrial automation systems, electrical control panels, PLC interfaces, monitoring equipment, and low-voltage DC switching applications. As part of Omron’s MY relay family, this model is known for dependable operation, flexible wiring capability, and practical maintenance support in industrial environments.
The relay combines a 12 VDC coil with a 4PDT contact arrangement, allowing four separate circuits to switch simultaneously from one control signal. This makes the relay suitable for machine sequencing, alarm systems, signal distribution, process control, and auxiliary switching applications.
Relay Construction and Operating Principle
The Omron MY4IN 12VDC (S) miniature power relay is built using a plug-in design compatible with industrial relay sockets. This construction supports fast installation and easier replacement during maintenance procedures.
The 12 VDC coil is commonly used in PLC outputs, regulated DC control systems, industrial automation equipment, transportation systems, and machine control circuits. DC relay coils are widely preferred in modern automation because they integrate efficiently with programmable controllers and electronic control hardware.
The MY4IN relay uses four Form C contact sets. Each contact pole includes a common terminal, normally open contact, and normally closed contact. This configuration allows several independent control actions to occur simultaneously when the relay is energized.
Electrical Characteristics and Performance
Omron MY4 series relays are generally associated with contact ratings up to 5 A, depending on electrical load conditions and switching frequency. The MY series is also designed with insulation and dielectric characteristics suitable for industrial control environments.
The relay provides fast switching performance and reliable mechanical operation for automation systems requiring repetitive control actions. Because it is an electromechanical relay, engineers should evaluate both electrical endurance and mechanical endurance when designing systems with frequent switching cycles.
For inductive loads such as valves, contactor coils, or motors, protective suppression components may improve long-term reliability by reducing contact arcing.
Industrial and Automation Applications
The Omron MY4IN 12VDC (S) miniature power relay is commonly used in PLC interface modules, machine control systems, industrial automation panels, alarm systems, packaging equipment, process monitoring systems, and conveyor automation.
Because one relay can switch four separate circuits simultaneously, engineers often use it for interlocking functions, safety indication circuits, machine status outputs, and signal conversion tasks.
The plug-in design is especially valuable in maintenance-intensive environments. Instead of disconnecting multiple wires during service, technicians can usually replace only the relay while keeping the socket assembly intact.
Selection and Maintenance Considerations
When replacing or selecting the Omron MY4IN 12VDC (S) miniature power relay, technicians should verify the coil voltage, DC coil type, socket arrangement, contact rating, and terminal configuration.
Using an AC relay in a DC circuit, or using the wrong voltage rating, may result in overheating, unstable operation, or complete relay failure. It is also important to inspect the socket condition because worn or heat-damaged terminals can create intermittent control problems.
Environmental factors such as vibration, humidity, airborne contaminants, and temperature should also be considered when planning relay installation inside industrial panels.
For additional Omron relay references, visit Omron components.
FAQ
What is the Omron MY4IN 12VDC (S) used for?
It is used in industrial automation systems, PLC interfaces, machine control panels, and electrical circuits that require a 12 VDC relay coil and multiple switching contacts.
What does 4PDT mean on this relay?
4PDT stands for four-pole double-throw. The relay can control four independent switching circuits at the same time.
Can this relay operate with AC voltage?
No. The relay coil is designed specifically for 12 VDC operation and should only be used with compatible DC control voltage.
Why are DC relays common in PLC systems?
PLC outputs frequently use DC control signals because they integrate efficiently with electronic devices and modern automation systems.
Is the relay suitable for inductive loads?
Yes, but inductive loads may require suppression devices to reduce electrical arcing and improve contact durability.
Why is socket mounting important?
Socket mounting simplifies relay replacement and reduces maintenance time because the wiring usually remains connected during service.
What should be checked before relay replacement?
Check the coil voltage, DC coil specification, contact arrangement, socket compatibility, switching ratings, and physical relay dimensions before installation.
