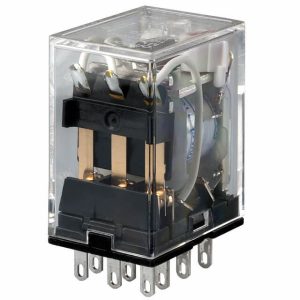

Omron MY3 12VDC General Purpose Relay
The Omron MY3 12VDC general purpose relay is a compact plug-in electromechanical relay designed for DC control systems, automation panels, signal switching, and machine interface circuits. It uses a 12 VDC coil and a 3PDT contact arrangement, making it suitable when one DC control signal must switch three separate circuits at the same time.
This model is part of the Omron MY miniature power relay family. Omron product information identifies it as a plug-in, 11-pin, 3PDT relay with 5 A rated carry current, mechanical indicator, label facility, transparent case, silver contact material, and compatibility with PYF11A socket mounting.
Technical Overview
The 12 VDC coil makes this relay appropriate for control systems powered by DC supplies, batteries, regulated power units, or PLC-related interface circuits. The MY3 12VDC is especially useful in panels where DC control architecture is already standard, such as compact automation machines, sensor interface panels, and low-voltage control cabinets.
The relay uses a 3PDT contact description. This means three isolated changeover contacts are operated together. Each contact set can be used for a different signal path, provided the load remains within the relay rating. The 5 A carry current and silver contact material support common industrial control switching tasks.
Control Panel Advantages
The plug-in relay format gives the Omron MY3 12VDC general purpose relay a strong maintenance advantage. Instead of removing wiring from the relay body, technicians can replace the relay through the socket interface. This reduces service time and helps preserve the original wiring layout.
The transparent case and mechanical indicator support visual inspection. In real panel environments, being able to see relay operation can help confirm whether a control command is reaching the coil. This does not replace proper electrical testing, but it is a useful first check during troubleshooting.
Typical Applications
This relay is suitable for machine automation, DC control panels, signal isolation, alarm circuits, interlock logic, and auxiliary switching. It may be used between a controller output and field devices when isolation or contact multiplication is needed. Because it has three changeover contacts, it can simplify designs that would otherwise require multiple smaller relays.
Correct relay selection starts with the coil voltage. A 12 VDC relay should only be used with a compatible DC control supply. It should not be interchanged with 12 VAC, 110/120 VAC, or 200/220 VAC versions unless the circuit is redesigned accordingly.
Omron MY3 12VDC For additional Omron relay references, visit Omron industrial components.
Omron MY3 12VDC FAQ
What is the Omron MY3 12VDC relay used for?
It is used for DC control switching in automation panels, machine controls, signal isolation circuits, alarm systems, and auxiliary control applications.
Omron MY3 12VDC Does this relay use AC or DC coil voltage?
It uses a 12 VDC coil. It is not intended for AC coil operation.
What socket is associated with the MY3 12VDC?
Omron lists compatibility with the PYF11A socket, which supports DIN rail or surface mounting with 11-pin screw terminal wiring.
What does the 5 A rating mean?
The 5 A value refers to rated carry current and resistive load switching capability. Actual suitability depends on voltage, load type, inrush current, and inductive behavior.
Why choose a 3PDT relay?
A 3PDT relay lets one coil operate three separate changeover contacts. This is useful when several control paths must change state together.
Can it replace an MY3 12VAC relay?
No. Although both may look similar, the coil type is different. A 12 VDC relay must be used with DC control voltage, while a 12 VAC relay requires AC control voltage.
