Omron MY2N-D2 12VDC (S)

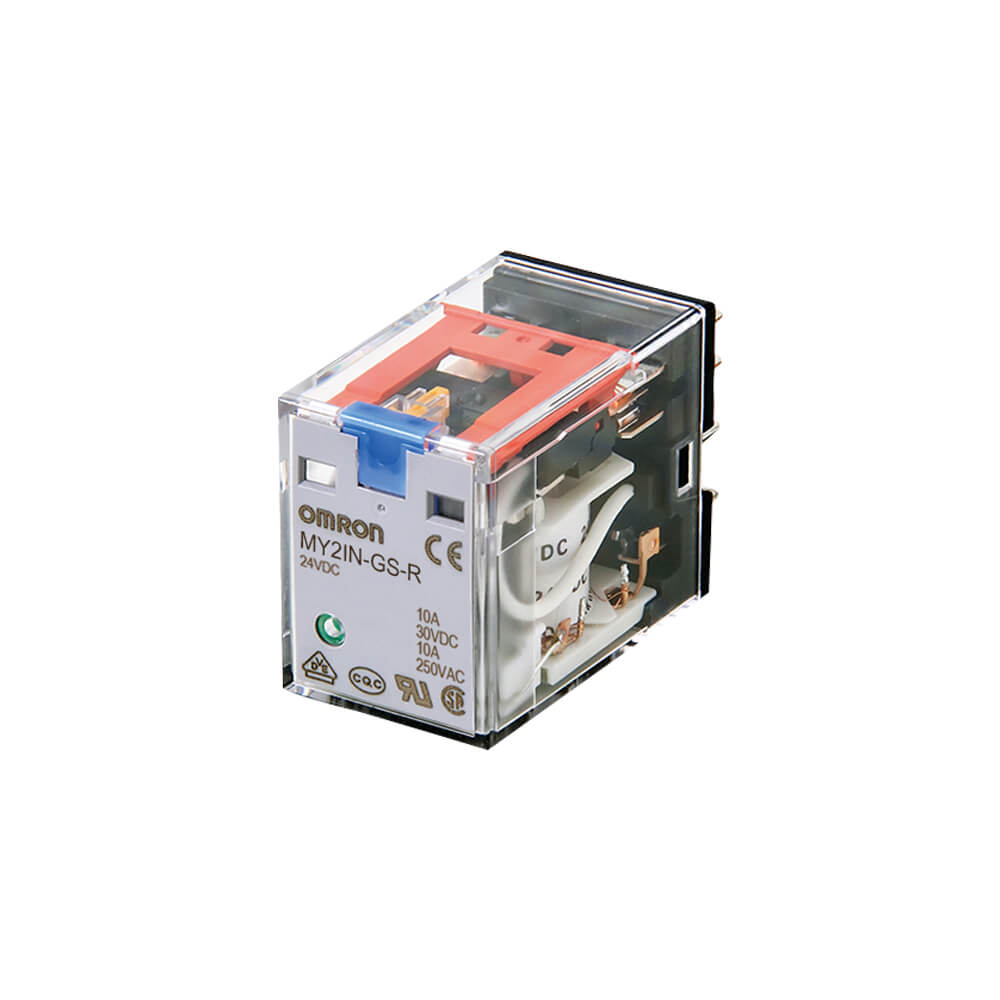

Omron MY2N-D2 12VDC (S) Miniature Power Relay

The Omron MY2N-D2 12VDC (S) miniature power relay is a compact DPDT relay designed for 12 VDC control circuits, automation panels, signal switching, and general-purpose industrial applications. It combines plug-in installation, LED operation indication, and a built-in diode for coil surge absorption.

Omron specifies this relay as a 2-pole miniature power relay with single contacts, plug-in terminals, a closed cover, and silver contact material. Its 12 VDC coil draws 72.7 mA and has a coil resistance of 165 ohms. The rated contact load includes 220 VAC 5 A for resistive loads and 24 VDC 5 A for resistive DC loads. :contentReference[oaicite:2]{index=2}

Why the 12 VDC Version Matters

Many control systems use 12 VDC for auxiliary circuits, battery-backed equipment, access systems, small machine controls, and low-voltage automation. The Omron MY2N-D2 12VDC (S) miniature power relay provides a practical interface between a 12 VDC control signal and separate AC or DC load circuits.

  • Product type: miniature power relay
  • Contact form: DPDT, 2 Form C
  • Coil voltage: 12 VDC
  • Coil current: 72.7 mA
  • Coil resistance: 165 ohms
  • Surge suppression: built-in diode
  • Indicator: LED operation indicator
  • Terminal type: plug-in
  • Mounting method: socket mounting

Common Use Cases

This relay can be used in battery-powered control systems, low-voltage automation, test benches, security panels, lighting control circuits, and interface modules. The DPDT structure gives designers flexibility when switching two circuits, reversing logic states, or separating control and load wiring.

The built-in diode is especially useful when the relay coil is driven by a transistor, microcontroller interface, or PLC output module. By absorbing the coil’s reverse voltage, it helps improve circuit reliability and reduces stress on the driving component.

Omron MY2N-D2 12VDC (S) For broader relay references, see Omron industrial relays.

Omron MY2N-D2 12VDC (S) FAQ

What is the Omron MY2N-D2 12VDC (S) used for?

It is used to switch electrical loads from a 12 VDC control signal in industrial, commercial, and equipment-level control systems.

Does this relay require a socket?

Yes. It is a plug-in relay intended for socket mounting, which makes installation and replacement easier.

Why is the built-in diode useful?

The diode suppresses reverse voltage from the relay coil. This helps protect electronic control outputs and improves long-term reliability.

Can it switch AC loads?

Yes. It can switch AC loads within the published contact ratings, including 220 VAC resistive loads up to the specified current limit.

Is this relay suitable for PLC output circuits?

Yes, provided the PLC output can supply the required coil current and the polarity is wired correctly. The built-in diode makes it suitable for many DC transistor output applications.
