Omron MY2IN-GS-R AC220/240 Power Relay: Technical Guide, Applications and Installation
Control system design involves dozens of component choices, each one a small bet on reliability. The Omron MY2IN-GS-R AC220/240 Power Relay is a safe bet — proven in remote panel applications environmentsoperating at 220/240V AC, backed by one of the most recognised names in industrial automation.
For projects where sensing and switching decisions need to be made together, Omron’s Omron Sensor products are a natural companion to this unit. Both families are built to the same quality standards and documented to the same CE and UL requirements, which simplifies the declaration of conformity process.

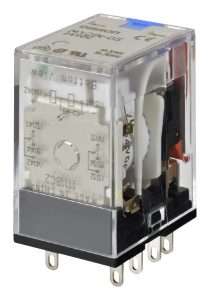

Omron MY2IN-GS-R AC220/240 Overview
The Omron MY2IN-GS-R AC220/240 is a Power Relay rated at 220/240V AC, built to handle remote panel applications reliably over a long service life. Key engineering features include gs rail compatible, retaining clip, led indicator, and the unit mounts via gs din rail socket.
From a technical standpoint, the Omron MY2IN-GS-R AC220/240 offers gs rail compatible, retaining clip, led indicator. Engineers who have worked with the previous generation will notice the same attention to detail that made the earlier models popular— with 220/240V AC compatibility built in.
Key Technical Parameters
The table below summarises the main technical parameters of the Omron MY2IN-GS-R AC220/240. For full specifications, always refer to the official Omron product datasheet, as application-specific derating may apply.
| Parameter | Value |
|---|---|
| Product Type | Power Relay |
| Coil / Operating Voltage | 220/240V AC |
| Contacts / Channels | 2-pole (DPDT) |
| Contact Current | 10 A |
| Key Features | GS rail compatible, retaining clip, LED indicator |
| Mounting | GS DIN rail socket |
| Mechanical Lifetime | 10 million mechanical operations |
| Operating Temperature | -25 °C to +70 °C |
| Compatible Socket | GS series socket |
Typical Application Areas
The Omron MY2IN-GS-R AC220/240 Power Relay is commonly specified for the following applications:
- Remote panel applications
- Industrial machine control
Across these use cases, the consistent thread is a need for dependable switching over a large number of operations, often in environments where an unplanned fault would create significant disruption. The Omron MY2IN-GS-R AC220/240 is designed with exactly those conditions in mind.
The Omron MY2IN-GS-R AC220/240 is designed to be used with GS series socket. Using a non-compatible socket model can compromise contact pressure and reduce overall service life, so always verify socket compatibility before ordering.
Mounting and Commissioning
When mounting the Omron MY2IN-GS-R AC220/240 Power Relay in a panel, pay attention to three things: the socket or rail type must be the correct Omron-specified match; the terminal wiring must use appropriate cable gauge; and there must be enough vertical clearance to allow the unit to be removed for service without disturbing adjacent wiring. Getting these details right at installation saves considerable time later.
For ongoing maintenance, periodically inspect for contact discolouration, check terminal screws for loosening, and look for any signs of heat stress on the housing. Catching these early avoids the much larger cost of an unplanned production stop.
The Case for Choosing Omron
Alternatives exist at lower price points, and some perform adequately in light-duty applications. But in continuous-operation environments, the Omron MY2IN-GS-R AC220/240 Power Relay consistently outlasts them — not because of a single dramatic feature, but because every detail, from contact material to housing design, has been optimised for the conditions that industrial use actually creates.
Frequently Asked Questions
How do I install the Omron MY2IN-GS-R AC220/240?
Mount the Omron MY2IN-GS-R AC220/240 Power Relay on a 35 mm DIN rail using the compatible socket or directly as specified. De-energise the circuit before installation, connect cables at the rated cross-section, and tighten terminal screws to the torque values stated in the datasheet.
What is the electrical lifespan of the Omron MY2IN-GS-R AC220/240?
Electrical lifespan depends on switching frequency and load type. At rated resistive load, Omron relay products typically achieve several hundred thousand to over a million operations. The exact figure for the Omron MY2IN-GS-R AC220/240 is stated in its technical datasheet.
Can the Omron MY2IN-GS-R AC220/240 switch inductive loads?
Yes, but inductive loads reduce contact lifespan due to higher arc energy at switch-off. For frequent inductive switching with the Omron MY2IN-GS-R AC220/240 Power Relay, a suppression device — such as a varistor or RC snubber — is recommended across the load.
Is the Omron MY2IN-GS-R AC220/240 RoHS compliant?
Omron products conform to the RoHS Directive requirements. Specific compliance documentation for the Omron MY2IN-GS-R AC220/240 can be requested from your authorised Omron distributor.
What should I check during periodic maintenance of the Omron MY2IN-GS-R AC220/240?
Inspect contact surfaces for pitting or discolouration, check terminal screws for loosening (particularly in high-vibration environments), and verify that the housing shows no thermal discolouration. Replace the unit if any of these signs are present.
