Omron LY4 24VAC 4-Pole Socketed Relay: Technical Guide, Applications and Installation

Control system design involves dozens of component choices, each one a small bet on reliability. The Omron LY4 24VAC 4-Pole Socketed Relay is a safe bet — proven in multi-channel signal switching environmentsoperating at 24V AC, backed by one of the most recognised names in industrial automation.

Omron Omron Sensor products are commonly found on the same DIN rail or in the same enclosure as this unit. The shared design philosophy — robust construction, clear indicator LEDs, standardised mounting — means a panel built with multiple Omron product families has a consistency that makes both assembly and future maintenance easier.

Omron LY4 24VAC Overview

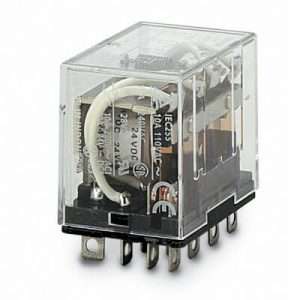

The Omron LY4 24VAC is a 4-Pole Socketed Relay rated at 24V AC, built to handle multi-channel signal switching reliably over a long service life. Key engineering features include arc barrier, transparent cover, multi-pole switching, and the unit mounts via socket + din rail.

From a technical standpoint, the Omron LY4 24VAC offers arc barrier, transparent cover, multi-pole switching. Engineers who have worked with the previous generation will notice the same attention to detail that made the earlier models popular— with 24V AC compatibility built in.

Key Technical Parameters

The table below summarises the main technical parameters of the Omron LY4 24VAC. For full specifications, always refer to the official Omron product datasheet, as application-specific derating may apply.

Typical Application Areas

The Omron LY4 24VAC 4-Pole Socketed Relay is commonly specified for the following applications:

• Multi-channel signal switching
• Plc interface panels
• Automation cabinets

Across these use cases, the consistent thread is a need for dependable switching over a large number of operations, often in environments where an unplanned fault would create significant disruption. The Omron LY4 24VAC is designed with exactly those conditions in mind.

The Omron LY4 24VAC is designed to be used with PF113A / PTF11A. Using a non-compatible socket model can compromise contact pressure and reduce overall service life, so always verify socket compatibility before ordering.

Mounting and Commissioning

Installation follows the same logical steps as any DIN rail component: de-energise the circuit first, secure the unit on the rail or with the appropriate socket, route cables with cross-sections matched to the contact current rating, and torque the terminal screws to specification. The Omron LY4 24VAC 4-Pole Socketed Relay does not require any specialised tooling — just careful preparation.

For ongoing maintenance, periodically inspect for contact discolouration, check terminal screws for loosening, and look for any signs of heat stress on the housing. Catching these early avoids the much larger cost of an unplanned production stop.

The Case for Choosing Omron

Alternatives exist at lower price points, and some perform adequately in light-duty applications. But in continuous-operation environments, the Omron LY4 24VAC 4-Pole Socketed Relay consistently outlasts them — not because of a single dramatic feature, but because every detail, from contact material to housing design, has been optimised for the conditions that industrial use actually creates.
