Omron LY2I4N 110/120VAC General Purpose Relay Technical Guide

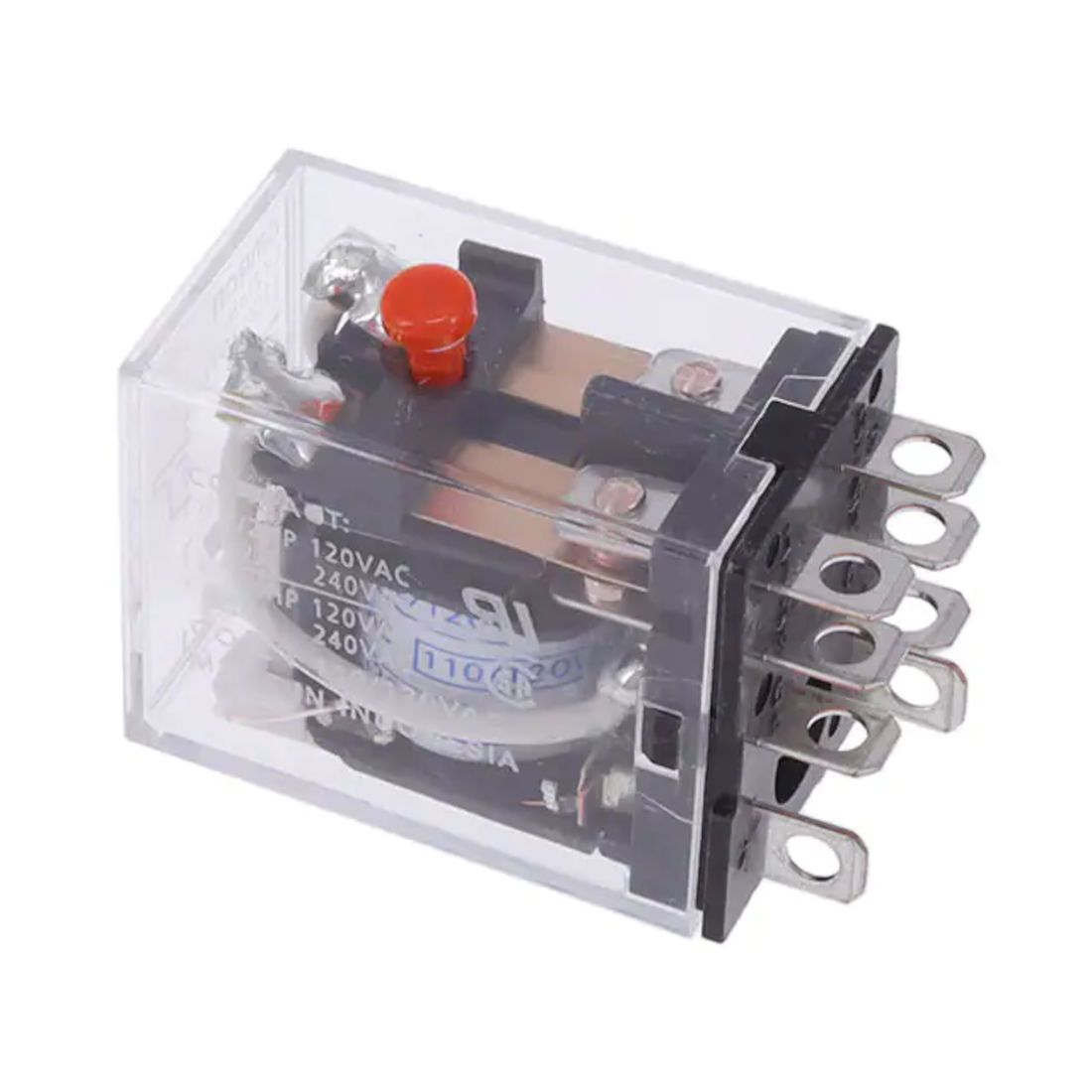

The Omron LY2I4N 110/120VAC general purpose relay is a plug-in industrial relay designed for control systems using 110 to 120 VAC coil voltage. It combines a DPDT contact arrangement, 10 A switching capability, an operation indicator, and a test button. These features make it practical for troubleshooting, commissioning, and everyday panel maintenance.

Technical Overview

This relay uses two poles with single contacts, commonly described as DPDT or 2 Form C. The contact material is silver alloy, and the rated load is generally suitable for 10 A resistive switching under defined voltage conditions. The 110/120 VAC coil version is appropriate for control panels built around North American AC control voltages or legacy industrial systems using similar control standards.

The built-in LED indicator helps technicians confirm coil energization without needing immediate meter access. The test button allows manual actuation during setup or diagnostics, helping verify downstream wiring and contact behavior. This combination is especially valuable in larger panels where fast fault isolation can reduce downtime.

Typical Uses

The Omron LY2I4N 110/120VAC relay is used in machine control, motor starter auxiliary circuits, pump panels, alarm circuits, signal isolation, HVAC systems, and control cabinet logic. Because it is socket-mounted, replacement is usually straightforward when proper isolation procedures are followed. The plug-in format also helps standardize panel layouts where multiple relays are installed in rows.

Design and Maintenance Value

From an engineering perspective, the LED and test button are more than convenience features. They support faster commissioning and clearer maintenance workflows. A technician can visually confirm whether the coil is active, then use the test function in a controlled way to validate circuit response. This can be especially helpful in panels with many similar relays.

The relay should always be applied within its voltage, current, and temperature limits. Inductive loads may require suppression, and socket wiring should be verified against the circuit diagram. Proper panel labeling also improves long-term serviceability.

For more information about Omron, review compatible relay sockets, accessories, and related automation families.

Omron LY2I4N 110/120VAC FAQ

What is the Omron LY2I4N 110/120VAC general purpose relay used for?

It is used for switching control and power circuits in industrial panels where a 110 or 120 VAC relay coil is required.

Does this relay include an indicator?

Yes. The LY2I4N version includes an LED operation indicator, which helps show when the coil is energized.

What is the purpose of the test button?

The test button allows controlled manual operation of the relay during commissioning, inspection, or troubleshooting.

What contact configuration does it use?

It uses DPDT contacts, allowing two separate circuits to be switched at the same time.

Is it easy to replace?

Yes, because it is a plug-in relay intended for socket mounting. Power should always be isolated before replacement.
