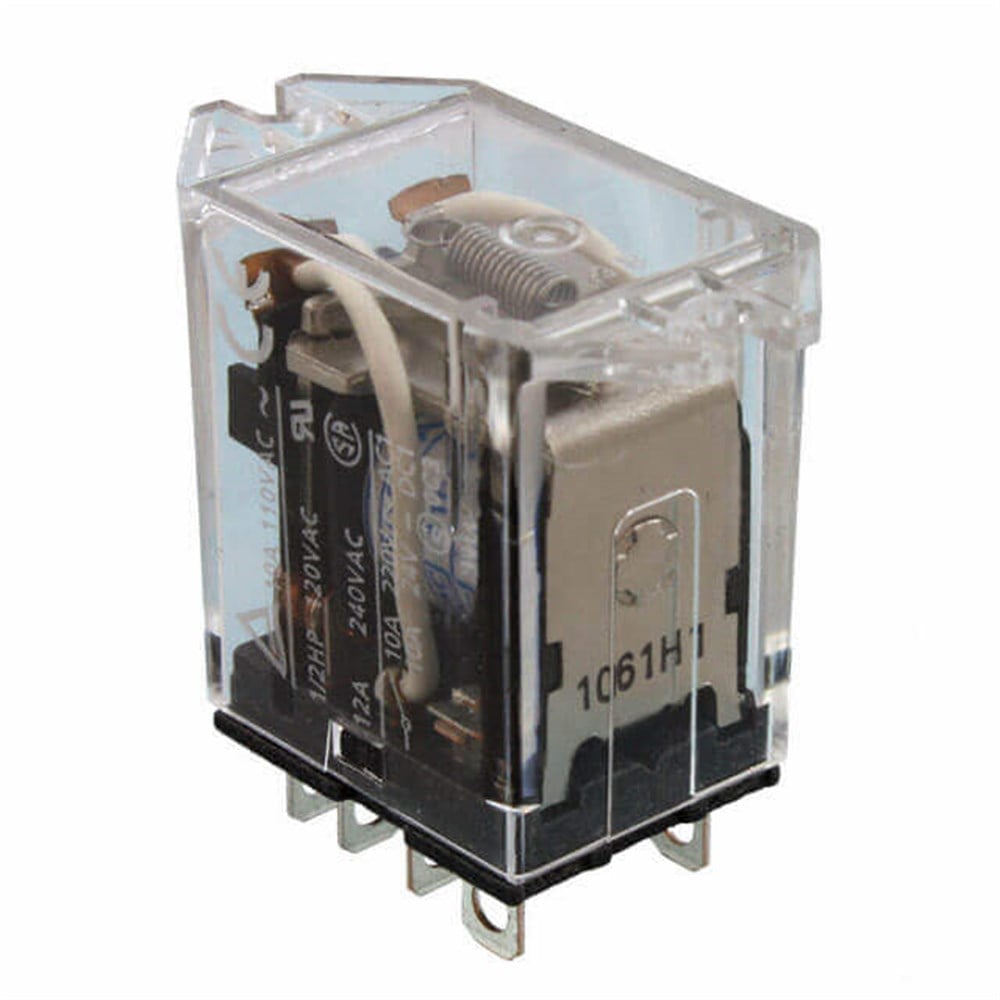

Omron LY2F 24VDC General Purpose Relay Technical Guide

The Omron LY2F 24VDC general purpose relay is a compact electromechanical relay designed for control panels, machine automation, and industrial switching circuits where a 24 VDC coil is required. As part of the Omron LY series, it is known for dependable DPDT switching, practical panel mounting, and a clear technical structure that makes it easy to integrate into maintenance and design workflows.

Technical Overview

This relay uses a 24 VDC coil and a DPDT contact arrangement, also described as 2 Form C. That means the device can switch two independent circuits between normally open and normally closed paths. The contact current rating is typically 10 A, with maximum switching values listed around 250 VAC and 125 VDC depending on the load category. Its silver alloy contact material supports reliable conductivity in general-purpose power switching applications.

The Omron LY2F 24VDC model is commonly associated with chassis or flange mounting and plug-in termination. This makes it suitable for panels where secure mechanical installation is important. The coil current is listed at about 36.9 mA, with coil resistance around 650 ohms. Typical operate and release times are approximately 25 ms, supporting predictable response in control logic.

Where It Fits Best

This relay is frequently used in relay logic panels, motor auxiliary circuits, alarm interfaces, solenoid control, and automation systems that depend on 24 VDC control power. Its DPDT structure is useful when one control signal must switch two separate paths at the same time. In practical terms, it can help separate signal feedback from load switching while keeping the circuit layout simple.

Installation Notes

Before installation, engineers should confirm coil voltage, load type, expected current, socket compatibility, and ambient temperature. The operating temperature range is generally suitable for standard industrial panels, but heat rise inside enclosed cabinets should always be considered. For inductive loads, external suppression may be required to reduce electrical stress and extend relay life.

For more information about Omron, review compatible relay families and related industrial automation components.

FAQ

What is the Omron LY2F 24VDC general purpose relay used for?

It is used for switching electrical loads in industrial control systems, automation panels, machine interfaces, and auxiliary circuits. Its 24 VDC coil makes it suitable for common low-voltage control environments.

What does DPDT mean on the Omron LY2F 24VDC?

DPDT means double pole double throw. The relay can switch two separate circuits, and each pole can change between normally open and normally closed contacts.

Is the Omron LY2F 24VDC suitable for AC and DC loads?

Yes, it can switch both AC and DC loads within its rated limits. The maximum voltage and current must always be checked against the actual load type.

Does this relay require a socket?

The relay uses plug-in style termination and is commonly installed with compatible Omron relay sockets or suitable panel mounting hardware.

Why choose a 24 VDC coil relay?

A 24 VDC coil is widely used in control panels because it supports safer low-voltage control circuits, PLC outputs, and standardized automation wiring.
