Omron LY2F 220/240VAC General Purpose Relay Technical Guide

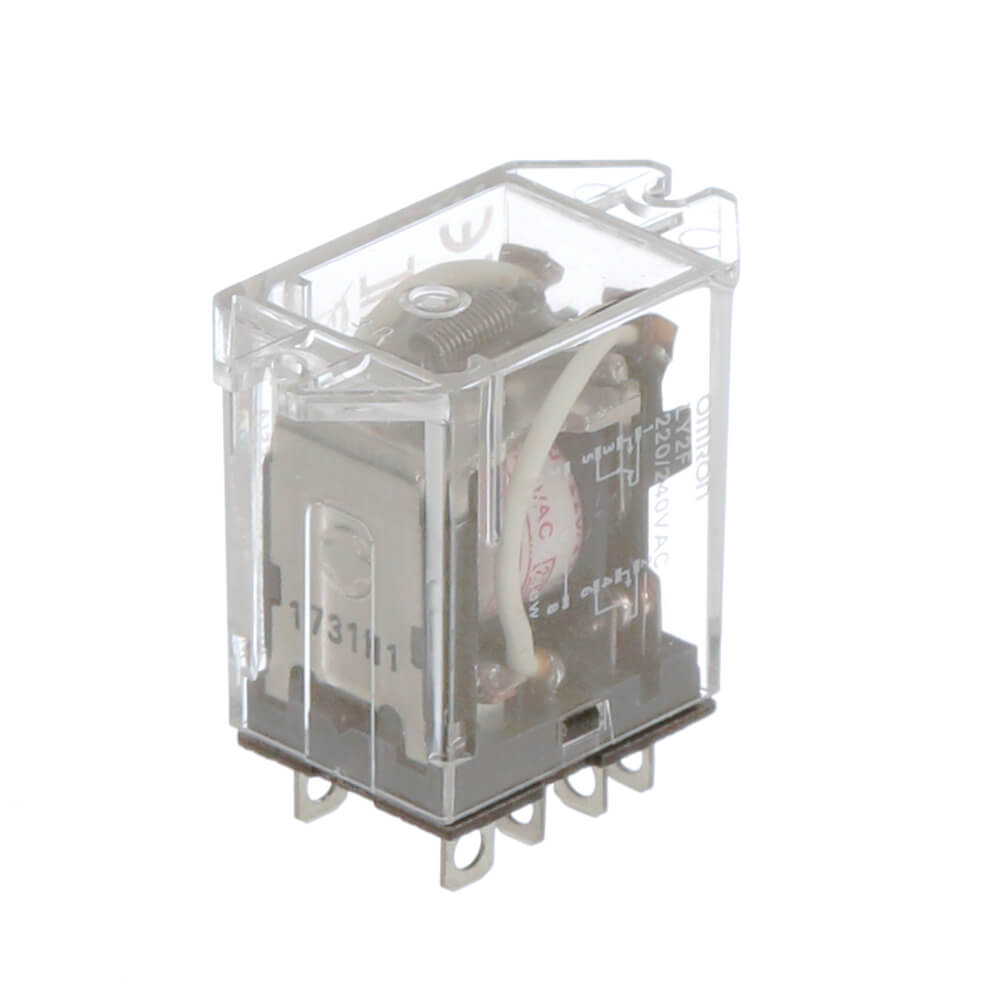

The Omron LY2F 220/240VAC general purpose relay is an industrial electromechanical relay designed for AC control systems that operate around 230 V coil voltage. It is part of the Omron LY series and is commonly used in machine control, panel building, industrial switching, and auxiliary control circuits where a flange-mounted relay format is preferred.

This relay features 2 poles, DPDT contact description, 10 A rated carry current, AC operation, transparent case, and plug-in or solder terminal options. Its flange mounting method allows it to be fixed securely inside control panels, which is useful where stable mechanical positioning is required. The contact material for this version is listed as AgSnIn, a silver tin indium alloy often selected for robust relay contact performance.

Core Technical Characteristics

The Omron LY2F 220/240VAC general purpose relay is designed around a 230 V AC coil. It offers DPDT switching, meaning two independent changeover contacts are available. This gives engineers flexibility when designing circuits that need simultaneous control, interlocking, feedback, or signal transfer. The 10 A rated carry current makes it suitable for many control and moderate load switching duties, provided the load type and electrical limits are respected.

Why This Relay Fits 230 V AC Control Panels

Many industrial panels and older automation systems use 220/240 VAC control circuits. In these environments, choosing the correct coil voltage is essential. A relay with the wrong coil voltage may fail to operate, overheat, chatter, or become unsafe. This model is intended for 220/240 VAC applications, making it a suitable choice for control panels built around this voltage class.

Omron LY2F 220/240VAC Application Examples

Typical uses include machine control relays, pump and fan logic, auxiliary signaling, alarm control, industrial lighting interfaces, heater control logic, and control circuit isolation. Because it is a mechanical relay, it provides galvanic isolation between the coil circuit and the switched circuit. This can be valuable in systems where control electronics and load circuits must remain electrically separated.

Installation and Maintenance Notes

When installing this relay, verify the socket or terminal arrangement, mounting space, coil voltage, contact load, and wiring diagram. If the relay switches inductive devices, protective components may be needed to reduce arcing and improve service life. Technicians should also check for discoloration, contact wear, loose wiring, or abnormal heating during preventive maintenance.

For more information about Omron industrial components, visit Omron.

Omron LY2F 220/240VAC FAQ

What is the Omron LY2F 220/240VAC general purpose relay used for?

It is used in AC control panels to switch loads or signals through DPDT relay contacts.

What coil voltage does this relay use?

It is intended for 220/240 VAC systems, with a nominal coil voltage around 230 V AC.

Is it suitable for DC control circuits?

No. This version is an AC coil relay. DC systems require a DC coil model with the correct voltage.

What is the advantage of flange mounting?

Flange mounting provides a secure mechanical fixing method, which is useful in panels exposed to vibration or frequent servicing.

Can one relay switch two separate circuits?

Yes. Its DPDT contact structure allows two separate changeover circuits to be switched by one coil.
