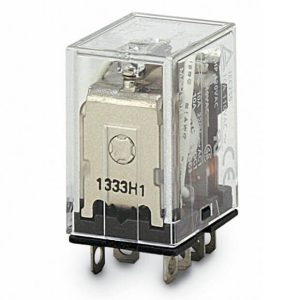

Omron LY1N-D2 24VDC Relay: Technical Guide with Diode and LED Indicator
The Omron LY1N-D2 24VDC relay is a plug-in industrial relay designed for control panels, automation equipment, machine circuits, and interface applications where a 24 VDC control supply is used. It combines a compact single-pole contact structure with practical features such as an LED indicator and built-in diode suppression.
This relay has a 24 VDC coil and a SPDT contact configuration. SPDT means single pole double throw, allowing one circuit to switch between normally closed and normally open contact positions. This makes the relay suitable for control logic, alarm functions, interlocking, output isolation, and simple signal conversion in industrial panels.
Core Technical Details
The Omron LY1N-D2 24VDC relay is a one-pole general-purpose relay with a rated carry current of 15 A. It uses silver alloy contacts, which are commonly selected for general-purpose switching in industrial relay designs. The plug-in terminal structure allows the relay to be installed into compatible sockets, supporting cleaner wiring and easier field replacement.
The model includes an LED indicator for visual operation status. When the coil is energized, the LED helps technicians quickly confirm that the relay has received a control signal. This reduces diagnostic time in electrical cabinets, especially when multiple relays are installed side by side.
Built-In Diode Protection
The “D2” feature indicates built-in diode suppression. In DC relay circuits, the coil can generate reverse voltage when switched off. This reverse voltage may affect PLC outputs, transistor circuits, or electronic control modules. The diode helps suppress that voltage and supports more stable operation in electronically controlled systems.
Because this relay includes a diode, polarity is important. The positive and negative coil connections must be wired correctly. Incorrect polarity may stop the relay from operating and can create faults in the control circuit. For this reason, the wiring diagram, socket marking, and control supply polarity should always be checked before installation.
Industrial Applications
The Omron LY1N-D2 24VDC relay is commonly used in PLC output interfaces, control signal isolation, motor starter auxiliaries, alarm panels, process equipment, packaging machinery, conveyor controls, HVAC systems, and machine status circuits. Its single-pole contact structure is ideal when one circuit needs to be controlled from one DC coil command.
In a PLC-based panel, the relay can act as an interface between a low-power electronic output and an external load circuit. This helps protect the controller and simplifies field wiring. The LED indicator also makes it easier to distinguish between a missing control signal and a downstream load issue.
Selection and Maintenance Considerations
Before using the Omron LY1N-D2 24VDC relay, verify the coil voltage, contact rating, socket compatibility, polarity, load type, ambient temperature, and switching frequency. For inductive loads, additional contact protection may be needed depending on the application. Relays should be mounted in clean, dry enclosures with suitable spacing and ventilation.
Routine inspection should include checking the relay seating in the socket, wire tightness, visible overheating signs, and correct LED behavior. If a relay is replaced, the replacement part should match coil voltage, contact form, terminal style, and suppression type.
For more product context, visit Omron information.
Frequently Asked Questions
What is the Omron LY1N-D2 24VDC relay?
It is a plug-in electromechanical relay with a 24 VDC coil, SPDT contacts, LED indicator, and built-in diode suppression.
What does SPDT mean?
SPDT means single pole double throw. The relay switches one common contact between a normally closed and normally open contact.
What is the purpose of the built-in diode?
The diode suppresses reverse voltage from the DC coil when the relay turns off. This helps protect electronic outputs and control devices.
Does polarity matter for this relay?
Yes. Because the relay includes a diode, the coil must be connected with correct DC polarity.
Can this relay be used in PLC panels?
Yes. It is well suited for PLC interface circuits when the output rating, coil current, and wiring polarity are correctly matched.
What is the rated carry current?
The relay has a rated carry current of 15 A. The actual switching capacity depends on the load voltage, load type, and operating conditions.
How does the LED indicator help?
The LED shows when the coil is energized. This makes troubleshooting faster because technicians can immediately see whether the relay is receiving a control signal.
Can it replace a standard LY1N 24VDC relay?
Only if the circuit supports the same coil voltage, contact form, socket arrangement, and diode polarity requirements. The diode version is not always a direct substitute in every wiring layout.
