Omron G2RV-ST701 24VDC Slimline Relay

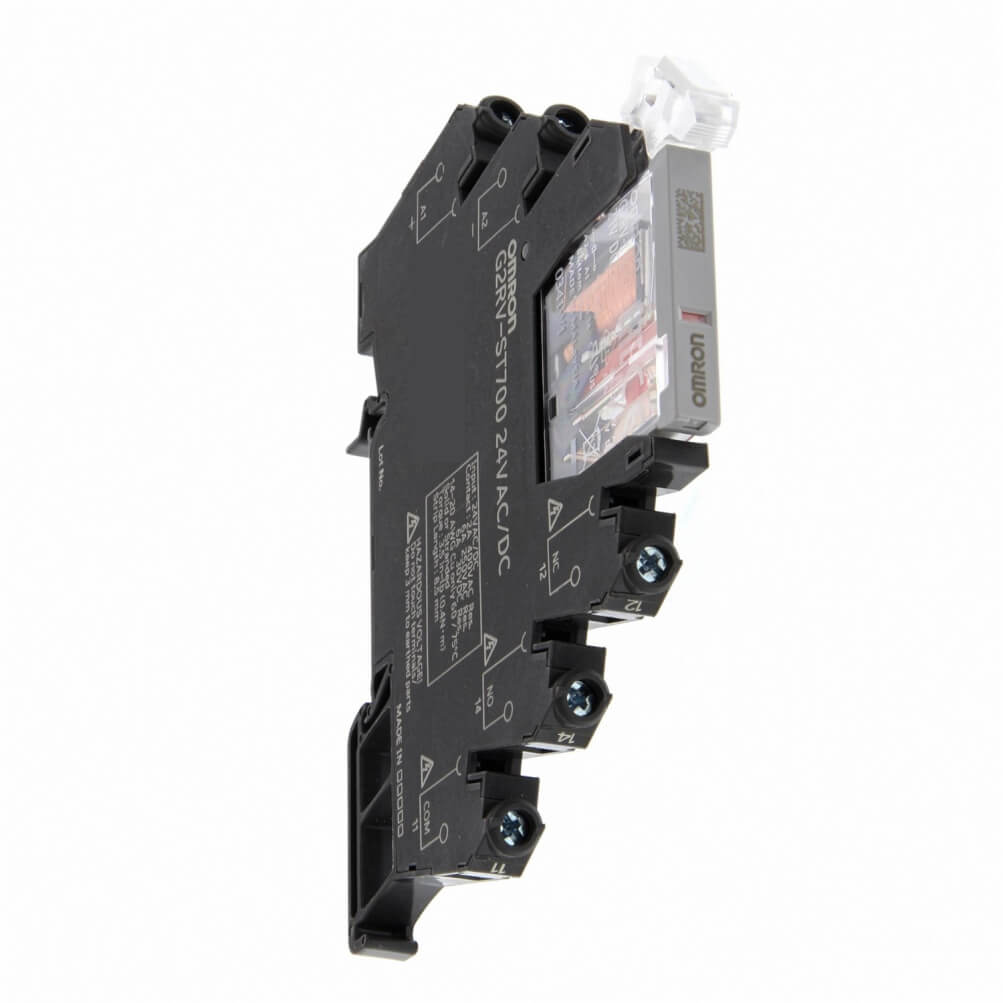

The Omron G2RV-ST701 24VDC slimline relay is a narrow industrial relay made for automation panels where space saving and dependable switching are essential. It combines a slim relay and an integrated low-profile socket in one compact assembly. This makes it a practical solution for machine builders, panel manufacturers, and maintenance teams working with high-density DIN rail layouts.
This relay uses a 24 VDC coil and an SPDT contact arrangement. It is rated for 6 A switching and comes with screw terminals, LED indication, a mechanical indicator, DIN rail mounting, and a built-in test switch. Omron identifies the G2RV-ST701 24VDC as a 6 mm slimline relay with socket, SPDT contact, 6 A rating, screw terminals, 24 VDC coil, and test switch.
Built for 24 VDC Automation Panels
Many industrial control systems use 24 VDC as the standard control voltage. The Omron G2RV-ST701 24VDC fits naturally into these systems, especially where PLC outputs, relay interfaces, and field devices must be connected through a compact and serviceable relay module. The slim form factor helps reduce cabinet width, while the test switch and indicators make the relay easier to verify during startup and maintenance.
For more details about Omron automation components, related relay options and product families can be reviewed.
Technical Overview
- Product type: slimline relay
- Brand and code: Omron G2RV-ST701 24VDC
- Coil voltage: 24 VDC
- Contact form: SPDT
- Contact rating: 6 A
- Terminal type: screw terminal
- Mounting method: DIN rail
- Integrated socket: yes
- Operating indicators: LED and mechanical indicator
- Manual testing feature: test switch
Application Areas
The Omron G2RV-ST701 24VDC slimline relay is commonly used in machine control panels, PLC output isolation, conveyor systems, packaging machinery, HVAC control panels, and general industrial automation circuits. It is particularly valuable when designers want a clean, modular relay layout without sacrificing panel accessibility.
Omron G2RV-ST701 24VDC FAQ
What is the Omron G2RV-ST701 24VDC designed for?
It is designed for industrial interface switching in 24 VDC control panels, especially where a slim DIN rail relay is required.
Does this relay include a socket?
Yes. It includes an integrated low-profile socket, which helps simplify installation and replacement in panel applications.
What is the current rating?
The relay has a 6 A contact rating, suitable for many standard automation and control loads within the specified operating limits.
Why is the test switch useful?
The test switch allows a technician to manually actuate the relay for checking wiring, load response, and circuit operation during commissioning or maintenance.
Can it be used with PLC outputs?
Yes. It is widely suited for PLC interface applications, especially where a 24 VDC control signal needs to switch or isolate another circuit.
Is the relay easy to inspect during operation?
Yes. The LED and mechanical indicator provide quick visual confirmation of relay status, which supports faster diagnostics in busy control cabinets.
