Omron G2RV-ST700-AP 12VDC Slimline Input Relay: Compact Microload Switching Explained

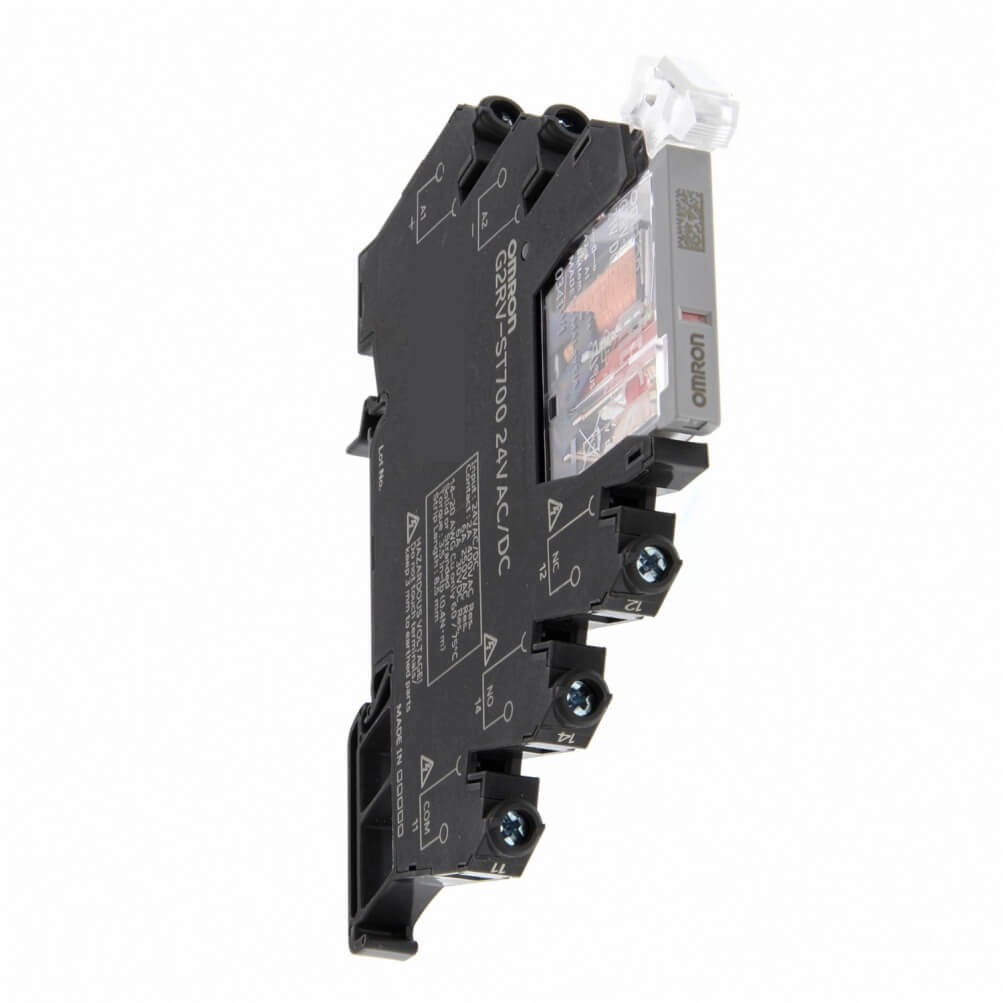

The Omron G2RV-ST700-AP 12VDC slimline input relay is a compact relay for low-current interface circuits in automation panels. Omron identifies this model as a slim relay with integrated low-profile socket, screw terminal connection, microload classification, 12 VDC coil, SPDT contact form, LED and mechanical indicators, Au-plated Ag alloy contacts, and a 30 VAC or 36 VDC 0.05 A resistive contact rated load. :contentReference[oaicite:2]{index=2}

Purpose of the AP Microload Design

Low-current signals require careful contact selection. In microload circuits, the current may be too small to naturally burn through oxide layers on standard relay contacts. The AP contact design addresses this need by using gold plating over silver alloy, making the relay better aligned with signal-level switching than general load switching.

Key Technical Features

  • Product type: Slimline input relay
  • Coil voltage: 12 VDC
  • Coil current: 27.9 mA
  • Contact form: SPDT
  • Contact material: Au plating plus Ag alloy
  • Rated contact load: 30 VAC 0.05 A or 36 VDC 0.05 A resistive load
  • Terminal structure: Screw terminal
  • Indicators: LED and mechanical indicator
  • Mounting style: DIN rail compatible socket assembly

Typical Applications

This relay fits control systems where a 12 VDC signal must be isolated, transferred, or monitored. It can be used in PLC input interfacing, compact machinery, low-voltage control boxes, instrumentation circuits, test benches, small automation modules, and signal conditioning layouts. Its slim construction supports dense channel arrangements while still offering service-friendly screw terminals.

Why Engineers Choose a 12 VDC Input Relay

12 VDC systems are common in compact equipment, mobile machinery, smaller control modules, and devices powered from low-voltage DC supplies. The G2RV-ST700-AP 12VDC gives designers a relay option that matches this voltage level while preserving the advantages of a panel-ready industrial relay format.

Omron G2RV-ST700-AP 12VDC For more technical background, visit Omron resources.

Omron G2RV-ST700-AP 12VDC FAQ

What is the Omron G2RV-ST700-AP 12VDC slimline input relay used for?

It is used for low-current signal switching and interface applications where a 12 VDC coil is required. It is especially relevant in PLC input circuits and compact automation panels.

What is the difference between this AP relay and a standard relay?

The AP version is intended for microload switching. Its gold-plated contact structure is better suited to very low current signals than standard higher-current contact designs.

Can it switch high-power loads?

No. This relay is specified for microload-level switching. For higher current loads, a standard G2RV-ST700 model or another relay with the correct contact rating should be selected.

Does it include a socket?

Yes. The model is described as a slim relay with an integrated low-profile socket, making it suitable for DIN rail panel installation.

Why are LED and mechanical indicators useful?

They help technicians check coil energization and physical relay operation quickly. This is valuable during commissioning, troubleshooting, and preventive maintenance.
