Omron G2RV-ST700 12VDC Slimline Relay: Technical Overview and Application Guide

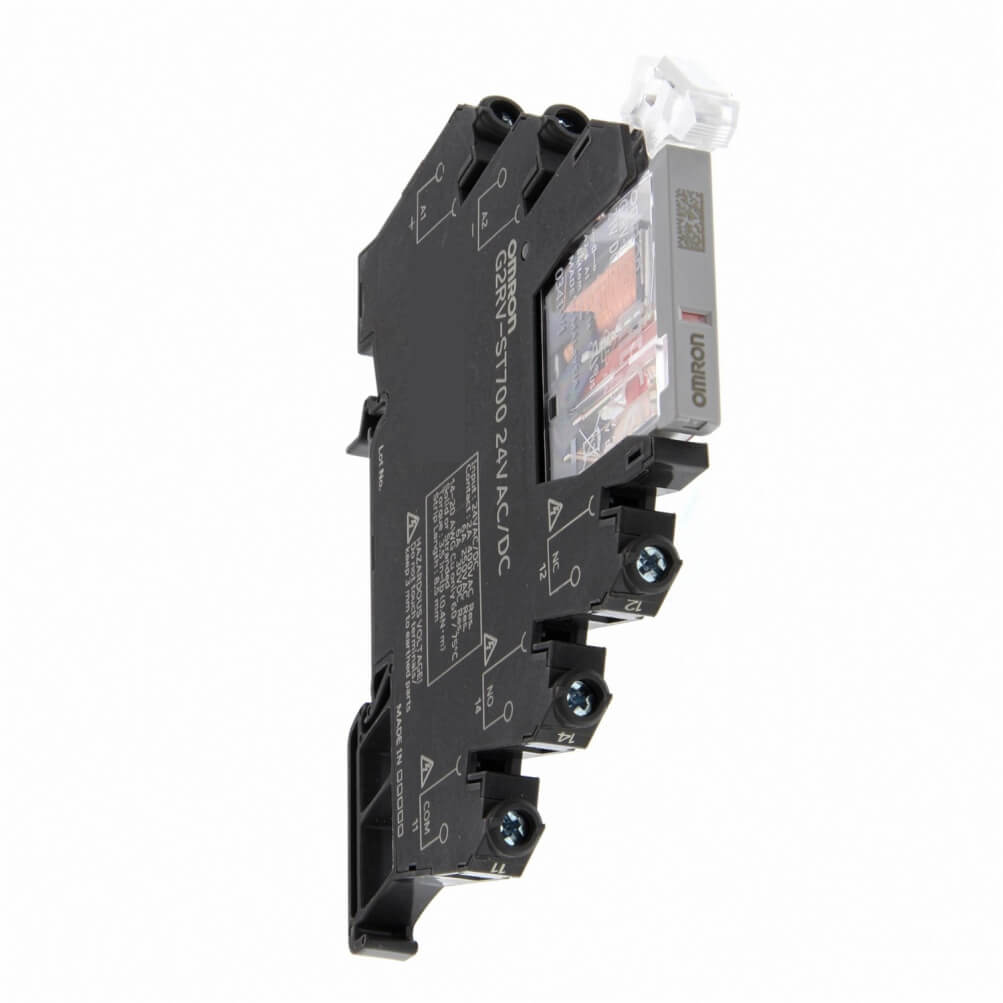

The Omron G2RV-ST700 12VDC slimline relay is a compact interface relay designed for industrial control panels where space, clear status visibility, and dependable signal switching are important. According to Omron, this model is a 6 mm slimline relay with socket, SPDT contact configuration, 6 A rated carry current, screw terminals, 12 VDC coil voltage, DIN rail mounting, LED indication, transparent case, mechanical indicator, and Ag alloy contacts. :contentReference[oaicite:0]{index=0}

What Makes This Relay Useful in Control Panels?

In automation cabinets, relays often sit between PLC outputs, sensors, actuators, and field devices. The G2RV-ST700 12VDC helps engineers build a clean separation point between the control side and the load side. Its slim 6 mm body supports high-density panel layouts, which is valuable in machines, packaging lines, HVAC panels, conveyor systems, and compact OEM equipment.

The 12 VDC coil makes this relay suitable for low-voltage DC control circuits. The SPDT contact structure gives the designer flexibility because it can be used for normally open or normally closed switching logic. With a 6 A carry current rating, it is better aligned with standard interface relay tasks rather than microload-only signal transfer.

Core Technical Features

  • Product type: Slimline relay with integrated socket
  • Coil voltage: 12 VDC
  • Contact form: SPDT
  • Contact material: Ag alloy
  • Rated carry current: 6 A
  • Terminal type: Screw terminal
  • Mounting method: DIN rail
  • Indicators: LED and mechanical indicator
  • Housing: Transparent case
  • Usage category: Interface relay

Where It Is Commonly Used

This relay is commonly selected for PLC interface circuits, machine control panels, auxiliary switching, signal isolation, and compact relay banks. Its transparent case and mechanical indicator help maintenance teams verify relay status without dismantling the panel. LED indication is especially useful during commissioning, because technicians can quickly confirm whether the coil side is energized.

Selection Notes

Before choosing the Omron G2RV-ST700 12VDC slimline relay, confirm coil voltage, load current, switching voltage, contact logic, available panel depth, and terminal preference. Screw terminals are familiar, serviceable, and suitable for many maintenance environments. For applications involving sensitive low-level signals, Omron’s AP microload variants may be more appropriate because they use gold-plated contact structures.

For more technical background, visit Omron resources.

FAQ

What is the Omron G2RV-ST700 12VDC slimline relay used for?

It is mainly used as an interface relay in industrial control panels. It can switch signals between PLC outputs, field devices, auxiliary circuits, and control equipment while keeping the panel compact.

Is this model suitable for DIN rail mounting?

Yes. The relay is designed for DIN rail installation, which makes it practical for modular control cabinet layouts and dense relay rows.

What does SPDT mean on this relay?

SPDT means single pole double throw. It gives one common terminal that can switch between a normally open and a normally closed contact path.

Does the relay include visual indication?

Yes. It includes LED indication and a mechanical indicator, allowing technicians to check both electrical energization and physical relay operation.

Is the G2RV-ST700 12VDC intended for microload signals?

This standard version is rated at 6 A and uses Ag alloy contacts. For very low-current microload signals, the G2RV-ST700-AP series is generally the more suitable direction because it uses gold-plated contact material.
