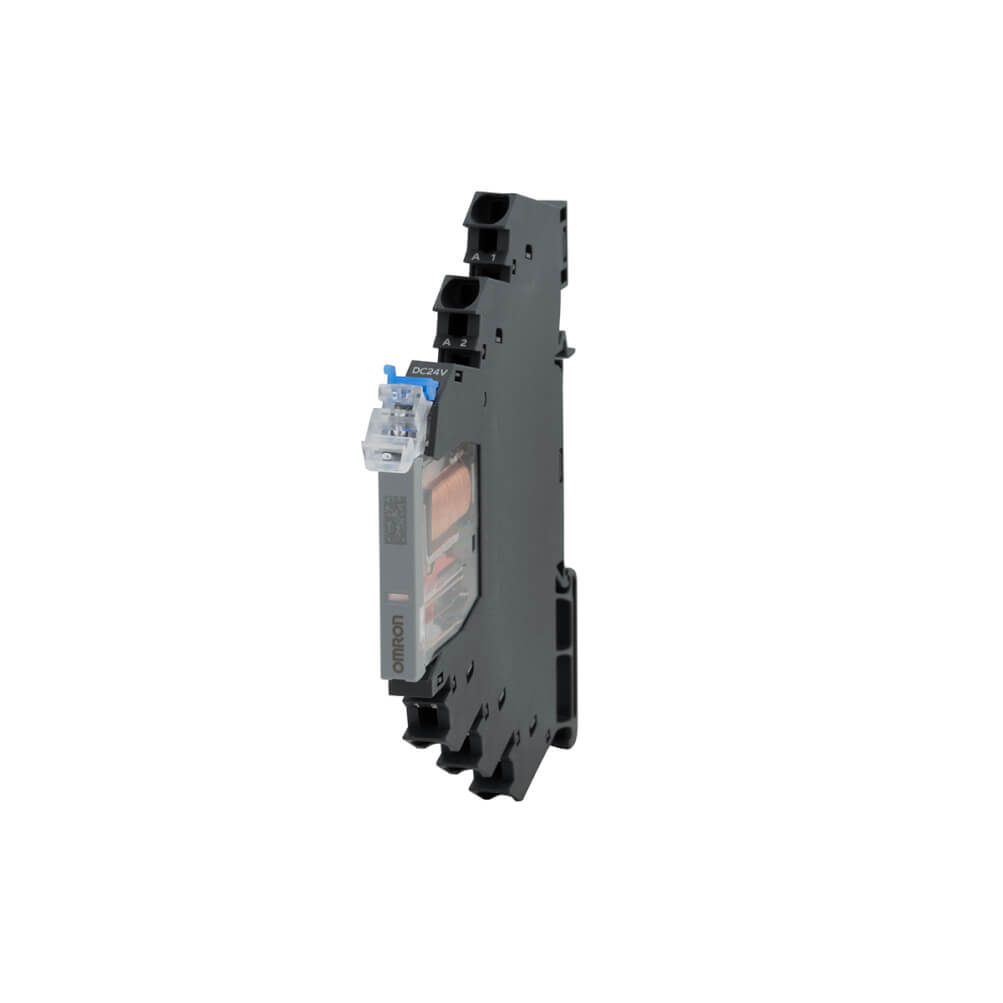

Omron G2RV-ST500 110VAC Slim I/O Relay Technical Overview

The Omron G2RV-ST500 110VAC slim I/O relay is a compact interface relay developed for industrial control systems that use 110VAC control voltage. It combines a slim relay body with an integrated low-profile socket, making it useful in modern control cabinets where space efficiency and wiring speed are essential.

Main Technical Characteristics

This relay features a 110VAC coil, SPDT contact arrangement, Ag alloy contact material, and a rated carry current of 6 A. It is designed for DIN rail mounting and uses Push-In Plus terminal technology, which helps reduce wiring time compared with traditional wiring methods. The transparent case, LED indicator, and mechanical indicator make it easier to check relay status during operation.

Practical Value in Control Panels

The Omron G2RV-ST500 110VAC slim I/O relay is especially useful in panels where AC control signals must be isolated, switched, or transferred to field devices. It can be used with automation systems, machinery controls, HVAC equipment, pump panels, and process control installations.

Because it uses Push-In Plus terminals, wiring can be performed quickly and consistently. This is helpful for panel builders who need repeatable installation quality across many relay points. The slim form factor also helps reduce cabinet width and improve component density.

Why Choose a 110VAC Interface Relay?

Some industrial sites still use 110VAC control circuits due to legacy equipment, regional standards, or machine design requirements. The Omron G2RV-ST500 110VAC slim I/O relay provides a compact and reliable way to manage these signals while maintaining clear visual feedback inside the electrical cabinet.

For more information about Omron relay and automation solutions, you can explore related industrial product options.

FAQ

What type of relay is the Omron G2RV-ST500 110VAC?

It is a slim I/O electromechanical interface relay with an integrated socket, designed for DIN rail installation in industrial control panels.

What does SPDT mean?

SPDT means single pole double throw. It allows one common contact to switch between normally open and normally closed paths.

Does it include visual indication?

Yes. This relay includes an LED indicator and a mechanical indicator, making it easier to confirm relay operation during service or troubleshooting.

Why are Push-In Plus terminals useful?

Push-In Plus terminals support faster wiring, consistent insertion, and cleaner cabinet assembly. They are especially valuable in high-density panel builds.
