Omron G2RV-SR700-AP 12VDC Relay Socket Technical Guide

Overview

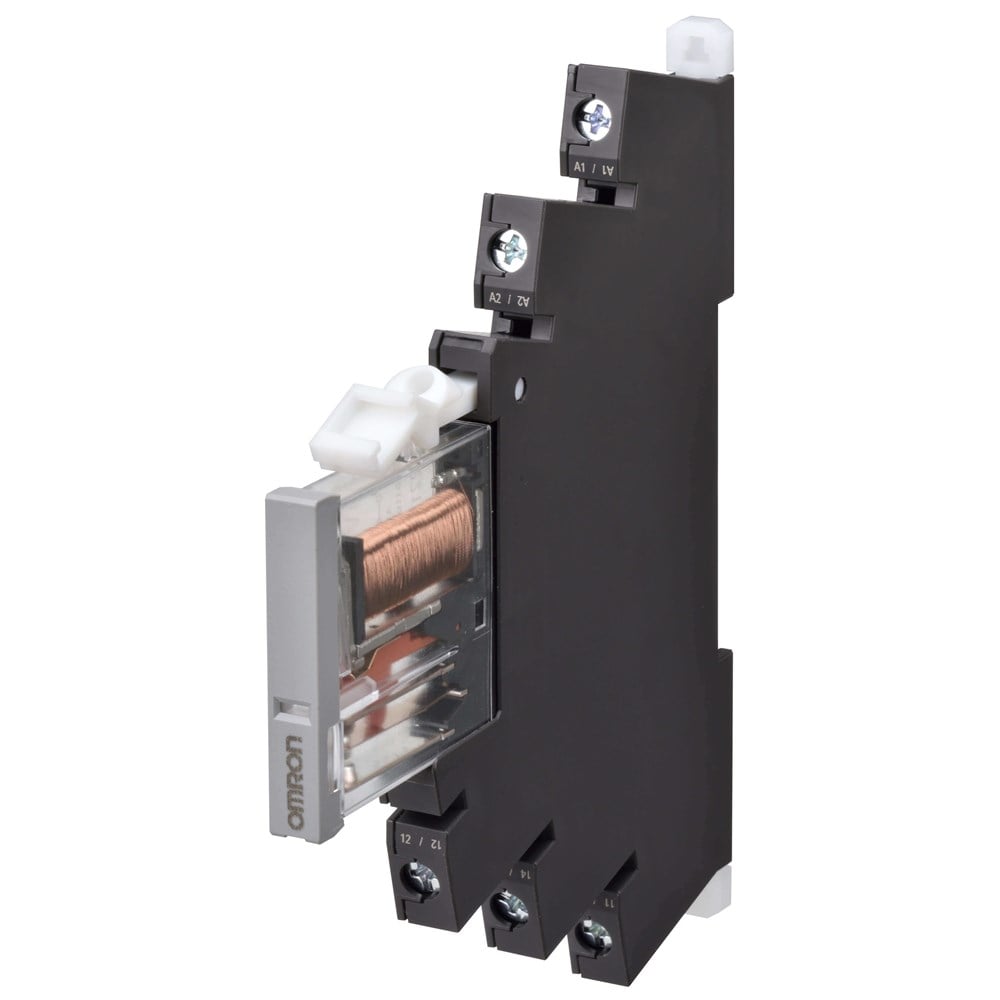

The Omron G2RV-SR700-AP 12VDC relay socket is a slim DIN rail relay interface designed for low-voltage DC control circuits and micro-load switching. It is part of the Omron G2RV-SR series, a relay family widely used in machine control panels, automation cabinets, and signal interface systems.

Technical Details

This model uses a 12 VDC coil and SPDT contact form. The AP variant is intended for micro-load applications, commonly associated with 50 mA signal switching and gold-plated contacts. It has a slim 6.2 mm body, screw terminal connection, socket-based relay construction, and DIN rail mounting. The operating temperature range for the family is suitable for industrial cabinet environments, commonly listed from -40°C to +55°C.

Common Applications

The Omron G2RV-SR700-AP 12VDC relay socket is a practical choice for battery-powered control panels, low-voltage automation circuits, sensor interface systems, small signal routing, and PLC-related relay isolation. Its slim construction supports high-density wiring while keeping each channel accessible for maintenance.

Why It Matters in Panel Design

Low-current circuits can be sensitive to contact quality. The AP design supports more dependable small-signal switching than a standard power relay contact in many micro-load situations. For related Omron product information, visit Omron relay information.

FAQ

What is the coil voltage of the Omron G2RV-SR700-AP 12VDC relay socket?

The coil is designed for 12 VDC control circuits.

What type of contact configuration does it use?

It uses SPDT, also called 1 Form C, which provides one changeover contact for flexible circuit design.

Is this relay socket intended for high-current loads?

No. The AP version is mainly intended for micro-load signal switching, so the load must remain within the correct rating.

Why would an engineer choose the AP version?

The AP version is useful when the application involves small current signals where gold-plated contacts can provide more stable switching performance.

Can it be installed in compact automation panels?

Yes. Its 6.2 mm slim design and DIN rail format make it suitable for compact control cabinets and multi-channel relay banks.
