Omron G2RV-SR700 200VAC Slim I/O Relay

Overview

The Omron G2RV-SR700 200VAC slim I/O relay is designed for industrial control systems that use a 200 VAC relay coil supply. It offers the space-saving benefits of the G2RV-SR series while maintaining a practical screw-terminal wiring structure for conventional panel building and maintenance.

Technical Characteristics

The G2RV-SR range is recognized for its 6.2 mm slim width, integrated low-profile socket, standard relay contact structure, and operation indication. The SR700 version refers to screw-terminal wiring, while the 200VAC rating identifies the coil voltage. This makes the relay suitable for control panels where 200 VAC control circuits are standard.

Industrial Use Cases

The Omron G2RV-SR700 200VAC slim I/O relay may be used in machine control panels, automation cabinets, relay interface modules, actuator control circuits, and process equipment. Its compact size is useful when engineers need multiple relays mounted together without expanding the cabinet footprint.

Panel Design Considerations

When selecting this relay, the control voltage should be checked first. A 200VAC coil should be energized only by a compatible AC supply. Load current, contact voltage, ambient temperature, and maintenance access should also be considered. Proper relay selection helps avoid nuisance faults and supports long-term operational stability.

Maintenance Benefits

The slim housing supports organized relay banks, while visual status indication helps technicians identify energized channels during troubleshooting. For related Omron product families, see Omron control panel components.

FAQ

What is the Omron G2RV-SR700 200VAC?

It is a slim I/O relay with a 200 VAC coil, intended for industrial interface and control cabinet applications.

What does SR700 indicate?

SR700 identifies the screw-terminal version without the latching lever in the G2RV-SR relay family.

Is this relay compact?

Yes. The G2RV-SR family is known for its slim 6.2 mm width, helping save cabinet space.

Can this model be used with 230 VAC?

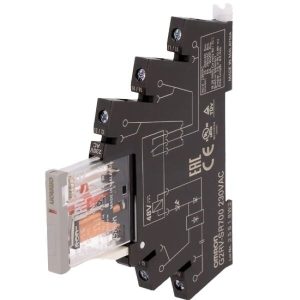

No. The 200VAC version should be used with the appropriate 200 VAC control voltage. For 230 VAC systems, the 230VAC version is the correct selection.

Why is visual indication useful?

It helps maintenance teams quickly confirm whether the relay is energized, reducing troubleshooting time in active panels.
