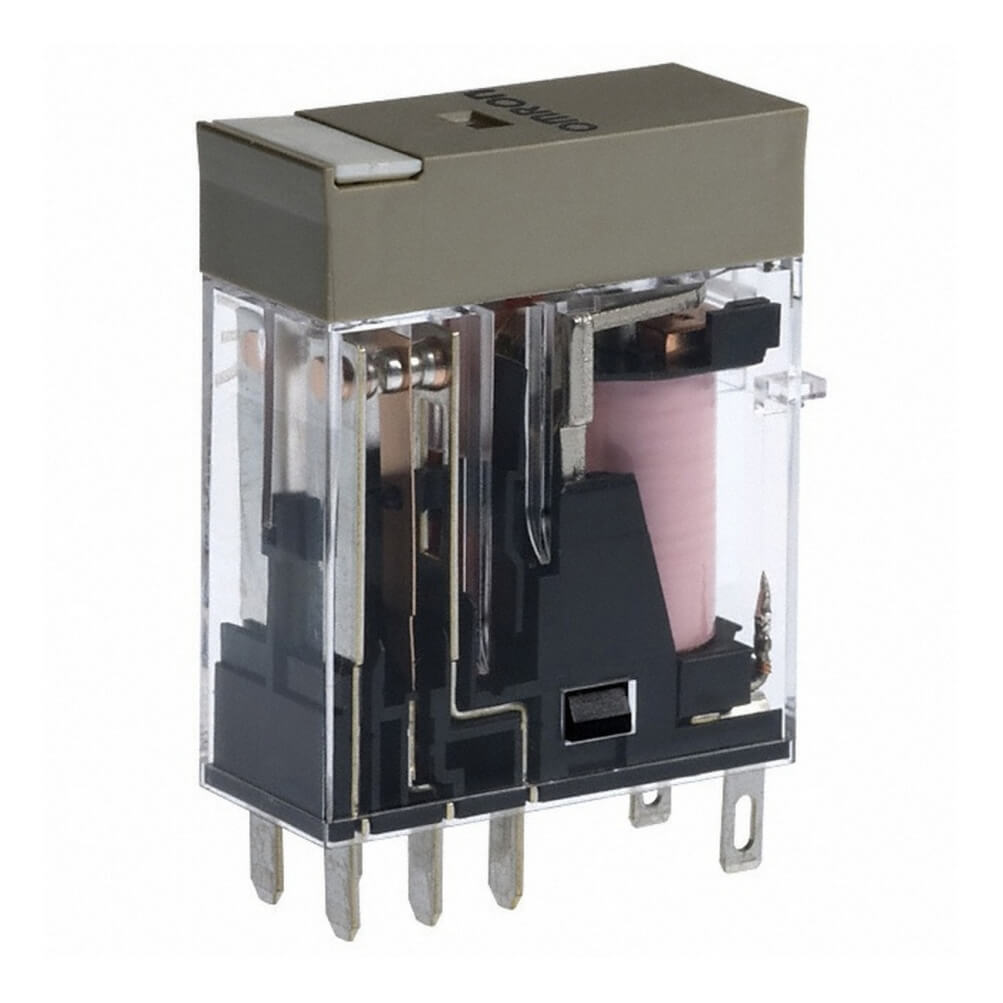

Omron G2R-2-S 24VAC (S) Relay Socket Technical Guide
The Omron G2R-2-S 24VAC (S) Relay Socket is a compact plug-in general-purpose relay designed for control panels, machine automation, interface circuits, and switching applications where reliable AC coil operation is required. As part of the Omron G2RS family, it is widely used in industrial environments because it combines a space-saving body with dependable double-pole switching.
Key Technical Features
This model uses a 24 VAC coil and a DPDT contact configuration, also known as 2 Form C. It is an 8-pin plug-in relay suitable for compatible Omron relay sockets. The relay offers a rated carry current of 5 A for two-pole configurations, making it useful for control signals, auxiliary circuits, and moderate switching loads.
The G2R-2-S 24VAC version is particularly relevant when the control circuit is based on low-voltage AC. Its plug-in design helps simplify maintenance because the relay can be replaced without rewiring the entire panel. This is an important practical advantage in production lines, HVAC control panels, packaging machines, and electrical cabinets where downtime must be minimized.
Where It Is Commonly Used
The relay is often selected for automation panels, signal isolation, motor control auxiliaries, PLC interface circuits, and general electrical switching. Its transparent case and label-friendly design support easier identification during inspection. For more Omron relay options, visit Omron industrial components.
Omron G2R-2-S 24VAC (S) FAQ
What type of relay is Omron G2R-2-S 24VAC (S)?
It is a general-purpose plug-in relay with an 8-pin base and DPDT contact structure.
Is this relay suitable for DC control circuits?
No. This specific version has a 24 VAC coil, so it should be used with a compatible AC control voltage.
Why choose a plug-in relay?
A plug-in relay is easier to replace during maintenance, especially in control panels where fast servicing is important.
What does DPDT mean?
DPDT means double pole double throw. It allows two separate circuits to be switched at the same time.
