Omron G2R-1-S 24VDC (S) Relay Socket: Technical Details for Control Panels

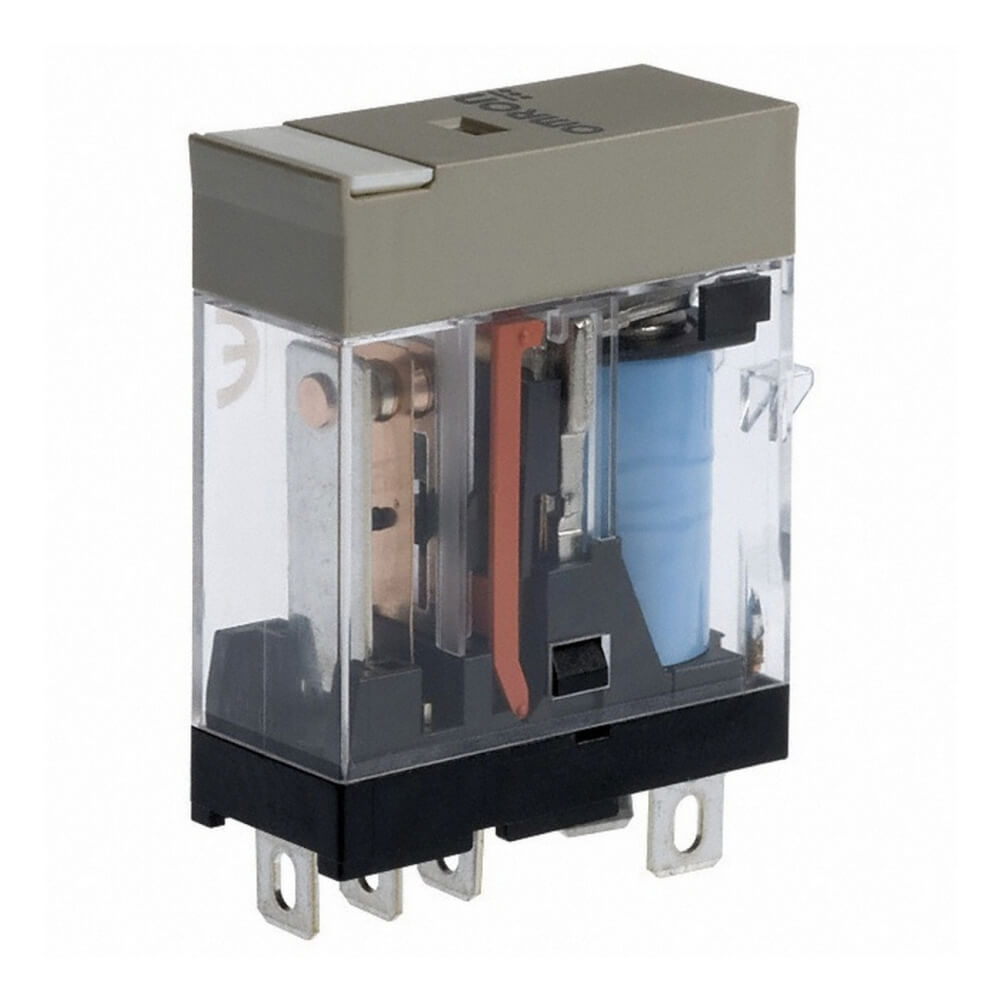

The Omron G2R-1-S 24VDC (S) relay socket is a compact plug-in relay developed for general-purpose industrial switching. It is especially useful in automation panels where 24 VDC control voltage is already standard. With a 5-pin plug-in structure and SPDT contact arrangement, it provides a practical solution for signal switching, load control, and interface applications.

Main Technical Features

This relay has a 24 VDC coil, SPDT contact structure, and 10 A rated carry current. It is designed as a non-latching electromechanical relay and includes a mechanical indicator for easier service checks. The plug-in design supports fast replacement, which is important in industrial environments where downtime should be kept low.

Typical Application Areas

The Omron G2R-1-S 24VDC (S) is commonly used in PLC output circuits, machine control panels, safety-related interface circuits, low-voltage automation systems, and control cabinet wiring. Its 24 VDC coil makes it a natural fit for modern industrial automation systems.

Installation and Socket Use

This relay is used with compatible Omron relay sockets, including P2RF series socket bases. Socket installation improves serviceability because the relay can be removed and replaced without disturbing the field wiring. For related Omron components, see Omron relay solutions.

Why Engineers Choose 24 VDC Relays

24 VDC control circuits are popular because they are safer, stable, and compatible with PLCs and sensors. A relay like this can isolate a control signal from a higher load circuit while keeping wiring simple and easy to maintain.

FAQ

What is Omron G2R-1-S 24VDC (S)?

It is a plug-in general-purpose relay with a 24 VDC coil, 5-pin connection, and SPDT contact form.

What is the contact rating?

The relay has a rated carry current of 10 A, suitable for many control and switching applications.

Can it be used with PLC outputs?

Yes. It is often used as an interface relay between PLC outputs and field devices.

Does it have LED indication?

This specific model is listed with a mechanical indicator. For LED indication, users should check other G2RS variants.

Is the relay replaceable without rewiring?

Yes. When installed on a compatible socket, it can be replaced quickly without removing the wiring from the socket base.
