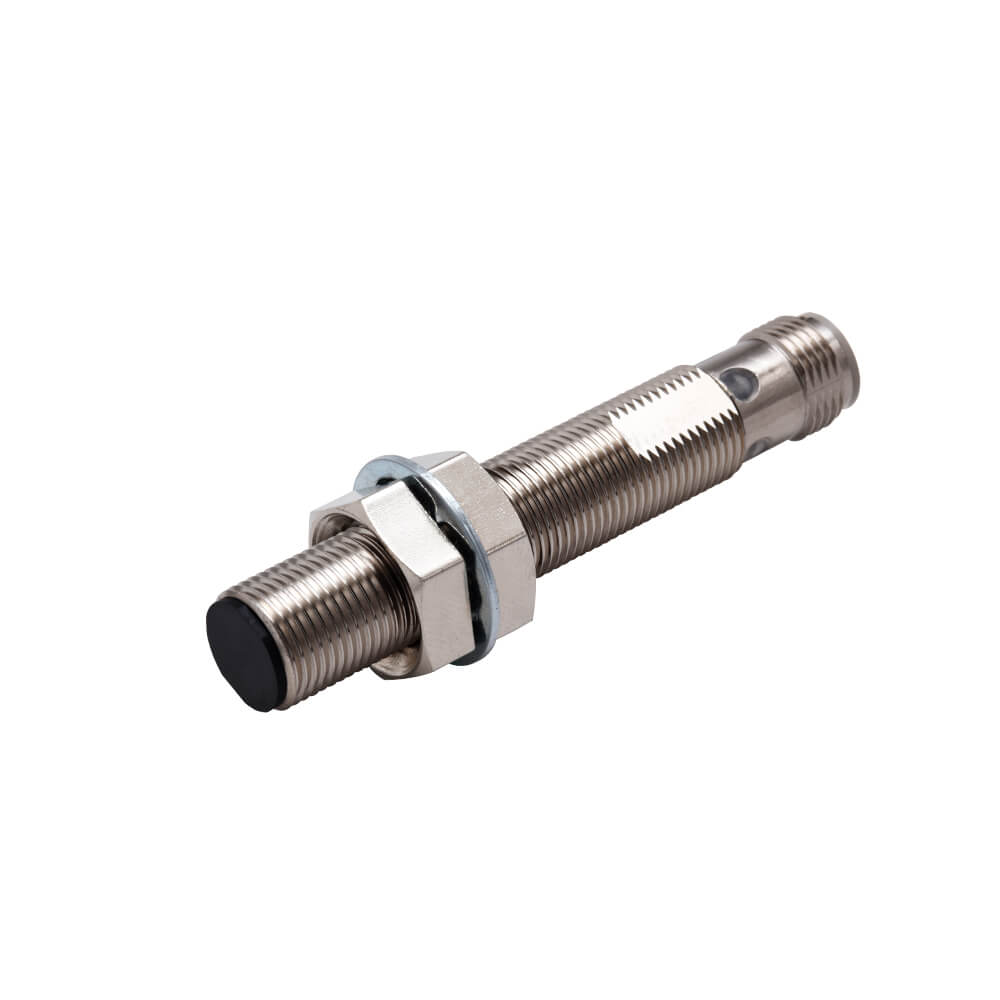

Omron E2E-X9C2L12-M1 Inductive Proximity Sensor

Technical Description

The Omron E2E-X9C2L12-M1 Inductive Proximity Sensor is engineered for precise metallic object detection in industrial automation systems. As part of the E2E NEXT family, this sensor combines enhanced sensing performance with a compact M12 threaded housing, making it suitable for installations where space efficiency and reliable detection are important.

The Omron E2E-X9C2L12-M1 Inductive Proximity Sensor utilizes inductive sensing technology to detect conductive metal targets without physical contact. Its PNP normally closed output configuration supports a variety of industrial control architectures, while the connector-based design simplifies installation and maintenance activities.

Operating Principle

The sensor generates a high-frequency electromagnetic field through an internal oscillator. When a metallic object enters the sensing zone, eddy currents are generated within the target material. These currents alter the electromagnetic characteristics of the oscillator circuit.

The internal electronics continuously monitor these changes. Once the detection threshold is reached, the sensor changes its output state according to its normally closed switching logic. This process occurs without direct contact between the target and the sensing face.

The Omron E2E-X9C2L12-M1 Inductive Proximity Sensor is therefore well suited for applications involving repetitive motion, high operating cycles, and environments where mechanical contact sensors may experience wear.

Construction and Performance Features

The sensor incorporates several characteristics intended to support industrial reliability and operational stability.

• 9 mm sensing distance
• M12 threaded cylindrical housing
• Shielded sensing construction
• PNP normally closed output
• M12 connector interface
• Nickel-plated brass housing
• 700 Hz switching frequency
• IP67, IP67G, and IP69K protection levels
• Resistance to oil and moisture exposure

These specifications allow the sensor to operate in a wide range of manufacturing and processing environments.

Applications in Industrial Automation

The Omron E2E-X9C2L12-M1 Inductive Proximity Sensor is used across numerous automation systems requiring dependable metal detection.

Assembly Stations

Automated assembly equipment uses proximity sensors to verify part presence before robotic handling or fastening operations begin.

Transfer Mechanisms

Industrial transfer systems rely on position verification to ensure synchronized movement of carriers and production materials.

Packaging Machinery

Packaging equipment often requires monitoring of moving mechanical elements such as pushers, guides, and indexing systems.

Industrial Robotics

Robotic systems use inductive sensors to confirm tooling positions, fixture status, and workpiece presence.

Industrial Benefits

The Omron E2E-X9C2L12-M1 Inductive Proximity Sensor offers several operational advantages in demanding manufacturing environments.

• Contactless operation reduces mechanical wear
• Reliable metal object detection
• Stable performance in contaminated environments
• Easy replacement through connectorized installation
• High environmental protection ratings
• Suitable for continuous-duty operation
• Compact dimensions for space-constrained applications

These advantages support long-term operational consistency while reducing maintenance requirements.

Industry-Specific Use Cases

The Omron E2E-X9C2L12-M1 Inductive Proximity Sensor is implemented in a variety of sectors.

• Automotive body assembly systems
• Metal fabrication machinery
• Warehouse conveyor networks
• Food processing equipment
• Pharmaceutical manufacturing lines
• Electronics production systems
• Automated material handling equipment

Engineers seeking additional sensing technologies may explore Omron sensor series for complementary automation solutions.

Factors to Evaluate Before Selection

Several technical parameters should be reviewed before integrating the Omron E2E-X9C2L12-M1 Inductive Proximity Sensor into a machine design.

• Target material composition
• Required sensing distance
• Available mounting space
• Electrical output compatibility
• Environmental operating conditions
• Connector and cabling requirements
• Machine control architecture

Reviewing these factors during the design phase helps optimize sensor performance and system reliability.

Frequently Asked Questions

What type of sensor is the Omron E2E-X9C2L12-M1 Inductive Proximity Sensor?

It is an inductive proximity sensor designed for non-contact detection of metallic objects.

What sensing distance does this model provide?

The sensor offers a nominal sensing distance of 9 mm.

What output configuration is available?

The device uses a PNP normally closed output.

How is the sensor connected?

The sensor uses an M12 4-pin industrial connector.

Can it operate in washdown environments?

Yes. The sensor supports IP67, IP67G, and IP69K protection ratings.

What voltage range is required?

The operating voltage range is 10 to 30 VDC.

Can it detect non-metallic materials?

No. The sensing technology is specifically intended for metallic targets.

Where is the Omron E2E-X9C2L12-M1 Inductive Proximity Sensor commonly used?

It is frequently used in assembly equipment, conveyor systems, robotics, packaging machinery, and material handling applications.

What is the benefit of using a connector version?

Connector-based installation simplifies maintenance, replacement, and system integration procedures.
