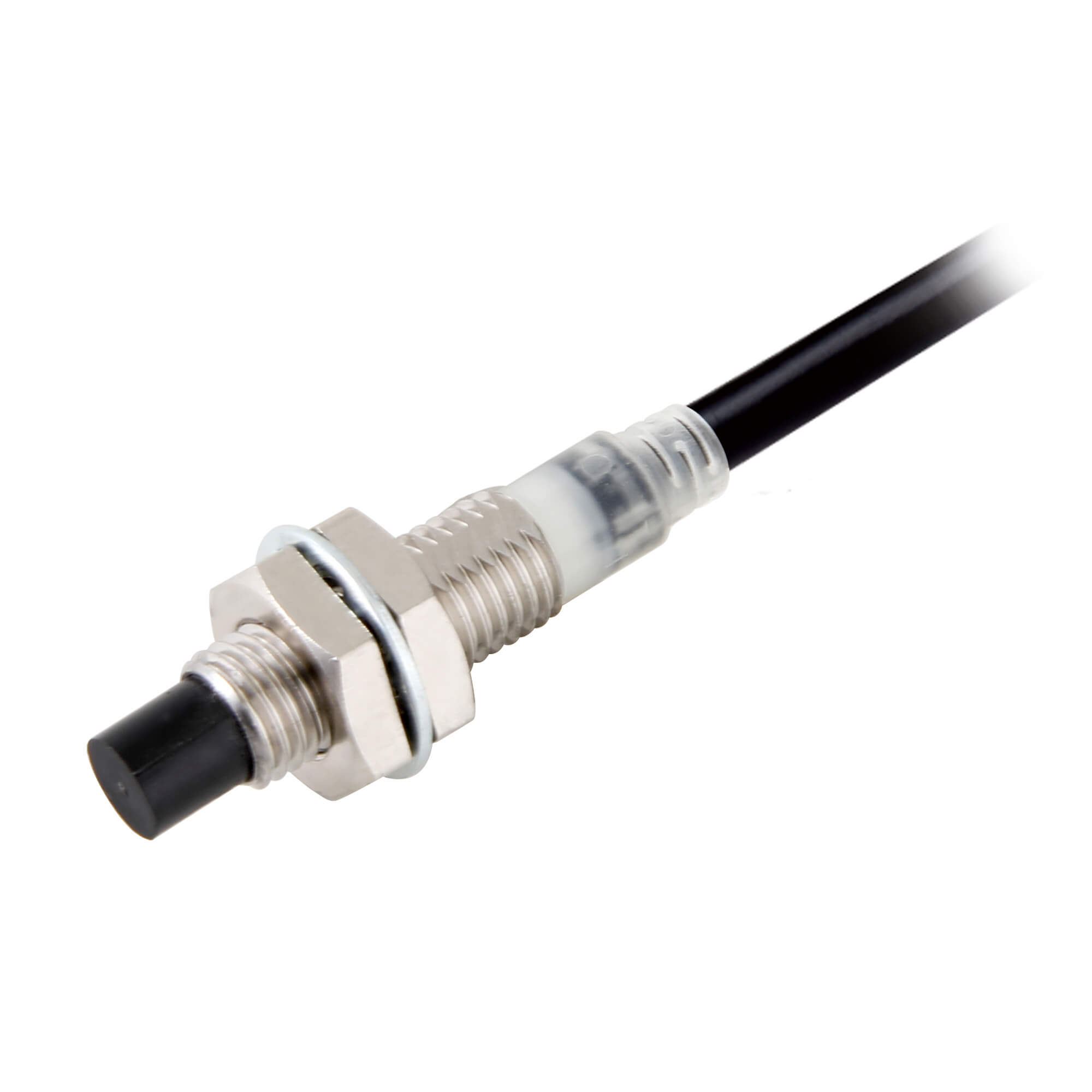

Omron E2E-X6MD18 5M Inductive Proximity Sensor

Technical Description

The Omron E2E-X6MD18 5M Inductive Proximity Sensor is engineered for reliable non-contact detection of metallic objects in industrial automation systems. As a member of the E2E NEXT sensor family, this model combines a compact M8 cylindrical housing with a long sensing distance of 6 mm, making it suitable for installations where both space efficiency and sensing performance are important design considerations.

The Omron E2E-X6MD18 5M Inductive Proximity Sensor features a two-wire normally open output configuration and is supplied with a 5-meter oil-resistant PVC cable. This extended cable length can simplify installation in large machinery, conveyor lines, and distributed automation systems where remote wiring points are required. The stainless-steel housing enhances durability in demanding industrial environments.

Working Principle

The sensor operates through inductive sensing technology. An internal oscillator creates an electromagnetic field at the sensing face. When a conductive metallic object enters this field, eddy currents are generated within the target. These currents alter the oscillator characteristics, allowing the sensor electronics to recognize the presence of the object and activate the switching output.

Since detection occurs without physical contact, the sensor avoids mechanical wear and provides stable performance over long operating periods. This makes it particularly suitable for high-cycle machinery and continuously operating automation systems.

Usage Areas

• Metal object presence detection
• Position monitoring of machine components
• Transfer system verification
• Conveyor carrier detection
• Pneumatic actuator monitoring
• Industrial handling equipment
• Machine sequencing applications
• Automated production systems

The Omron E2E-X6MD18 5M Inductive Proximity Sensor is frequently used where long cable runs are required between the sensing location and the control panel.

Industrial Applications

Conveyor Automation

In conveyor systems, the sensor can detect metallic pallets, carriers, and positioning elements throughout material transport processes.

Automated Warehousing

Storage and retrieval systems use inductive sensors to monitor transfer mechanisms, lift platforms, and carrier positioning equipment.

Packaging Production Lines

The sensor can verify machine positions and detect metallic indexing components used in packaging and labeling machinery.

Industrial Manufacturing Equipment

Production machinery often requires reliable detection of metal fixtures, moving mechanisms, and workpiece carriers. The extended cable length simplifies installation in larger machines.

Advantages

• 6 mm sensing distance
• Compact M8 cylindrical housing
• Two-wire installation architecture
• 5-meter integrated cable
• Normally open switching operation
• Stainless-steel construction
• IP67, IP67G, and IP69K environmental protection
• Suitable for distributed automation systems

Sector-Based Usage Examples

Logistics and Distribution

Automated sorting and transport systems can use the sensor to monitor metallic carriers and transfer mechanisms over long conveyor routes.

Automotive Production

The sensor can verify fixture positions, detect metal workpiece carriers, and monitor machine movements during manufacturing operations.

Packaging Facilities

Packaging equipment often requires sensors installed at significant distances from control cabinets. The 5-meter cable can reduce additional wiring requirements.

Machine Building

Machine manufacturers can integrate the Omron E2E-X6MD18 5M Inductive Proximity Sensor into larger equipment layouts where direct cable routing to control systems is beneficial.

Selection Considerations

• Required sensing distance
• Target material properties
• Installation space availability
• Cable routing requirements
• Control system compatibility
• Environmental exposure conditions
• Maintenance accessibility
• Two-wire circuit requirements

When installing the Omron E2E-X6MD18 5M Inductive Proximity Sensor, sufficient clearance should be maintained around the sensing face because the sensor uses a non-flush mounting design. Nearby metallic structures can influence sensing characteristics if installation recommendations are not followed.

Omron E2E-X6MD18 5M For additional industrial sensing technologies and related automation products, visit Omron sensor product ranges.

Omron E2E-X6MD18 5M Frequently Asked Questions

What type of sensor is the Omron E2E-X6MD18 5M Inductive Proximity Sensor?

It is an inductive proximity sensor designed for non-contact detection of metallic objects.

What is the sensing distance?

The rated sensing distance is 6 mm.

What output configuration does this model use?

It uses a two-wire normally open output configuration.

What cable length is supplied?

The sensor is supplied with a 5-meter oil-resistant PVC cable.

Can it operate in wet environments?

Yes. The sensor is rated IP67, IP67G, and IP69K for protection against water and dust ingress.

Can the sensor detect non-metallic materials?

No. Inductive sensing technology is designed specifically for metallic target detection.

Where is this sensor commonly used?

It is commonly used in logistics automation, packaging machinery, conveyor systems, manufacturing equipment, and automated warehouses.

What should be considered before selecting this model?

Users should evaluate sensing distance requirements, cable length needs, installation space, wiring architecture, target material characteristics, and environmental conditions.
