Omron E2E-X6C112-M1 Inductive Proximity Sensor

Technical Overview of the Sensor

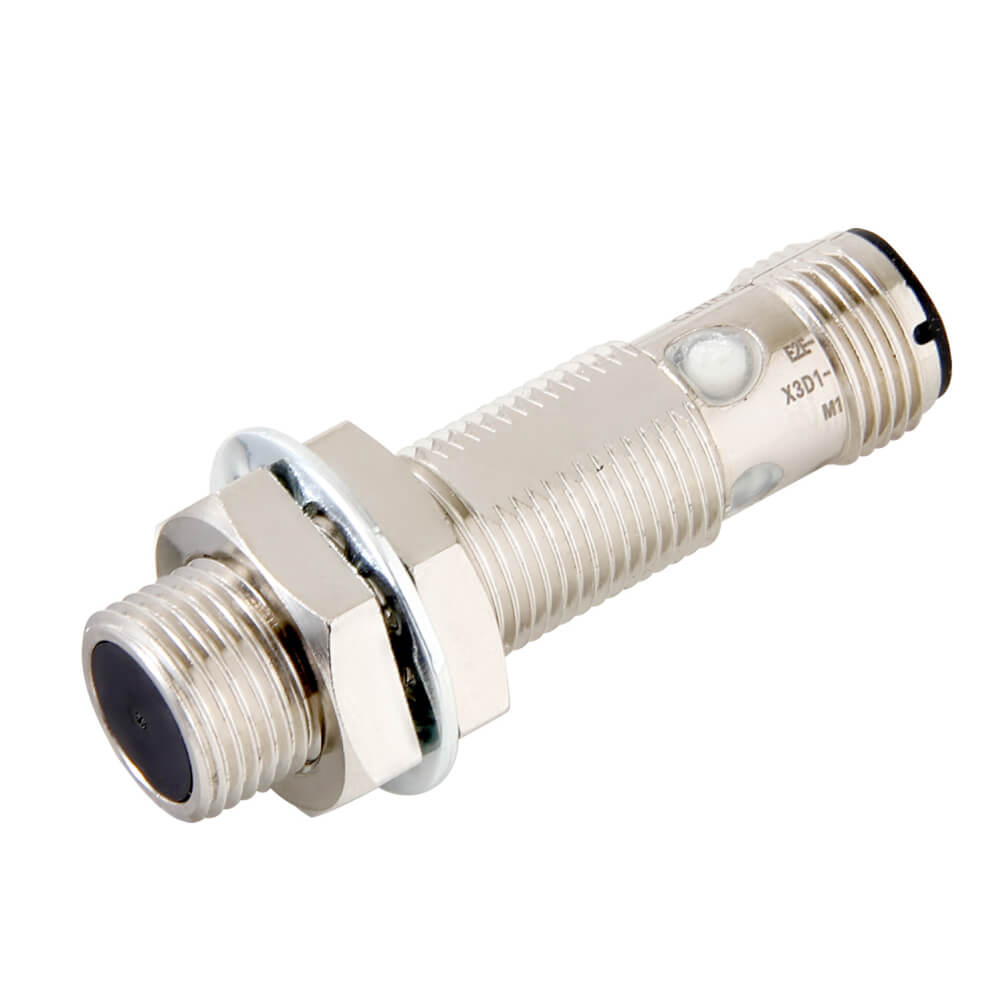

The Omron E2E-X6C112-M1 Inductive Proximity Sensor is a compact cylindrical sensing device designed for non-contact detection of metallic objects in industrial automation systems. It belongs to the E2E NEXT series, which incorporates enhanced sensing performance while maintaining compatibility with conventional proximity sensor applications.

This sensor features a shielded M12 threaded housing and a 6 mm sensing distance, allowing reliable installation in machinery where mounting space is limited. The nickel-plated brass body provides mechanical durability and resistance to industrial environments. The sensor uses a three-wire DC configuration with an NPN normally open output and an M12 connector interface for straightforward integration into automation systems.

The Omron E2E-X6C112-M1 Inductive Proximity Sensor is commonly implemented in production equipment, material handling systems, assembly machinery, and automated positioning applications where repeatable metal detection is required.

Working Principle

The operating principle of the Omron E2E-X6C112-M1 Inductive Proximity Sensor is based on electromagnetic field generation. An internal oscillator creates a high-frequency magnetic field at the sensing face of the sensor.

When a metallic target enters the sensing zone, eddy currents are induced within the target material. These currents absorb energy from the oscillating field and alter the amplitude of the oscillator circuit. The sensor electronics monitor this change and switch the NPN output when the detection threshold is reached.

Because the detection process relies on electromagnetic interaction rather than physical contact, the sensor operates without mechanical wear. This characteristic supports stable long-term operation in repetitive industrial processes.

Key Features and Performance Characteristics

• 6 mm sensing distance for reliable metal object detection.
• Shielded sensing structure for controlled detection zones.
• NPN normally open output configuration.
• Compact M12 threaded housing.
• IP67 and IP69K protection ratings for demanding environments.
• M12 connector connection method.
• Operating voltage range from 10 to 30 VDC.
• High response frequency up to 800 Hz.
• Nickel-plated brass housing for mechanical robustness.
• Integrated protection circuits for industrial reliability.

Application Areas

The Omron E2E-X6C112-M1 Inductive Proximity Sensor can be used in numerous automation processes requiring accurate metallic target detection.

• Position detection on automated assembly stations.
• Machine tool monitoring systems.
• Conveyor indexing and part tracking.
• Packaging equipment.
• Transfer and sorting machinery.
• Robotic end-of-travel verification.
• Automated storage and retrieval systems.
• Production line presence detection.

Its compact dimensions make installation practical in machinery where available mounting space is restricted.

Industrial Applications

In automotive manufacturing, the sensor can verify the presence of metallic components before assembly operations proceed. Accurate position confirmation helps maintain process consistency and supports automated quality control procedures.

Within packaging systems, the sensor may be installed to detect carrier mechanisms, indexing plates, or metallic guide elements moving through high-speed production lines.

Material handling systems frequently employ the Omron E2E-X6C112-M1 Inductive Proximity Sensor to monitor actuator positions, transfer units, and conveyor equipment. The sensor’s response speed supports dynamic industrial processes where rapid switching is necessary.

Additional information about compatible sensing technologies and product families can be found through Omron sensor products.

Advantages of the Sensor

• Non-contact sensing minimizes mechanical wear.
• Stable performance in dusty and wet environments.
• High ingress protection suitable for industrial cleaning procedures.
• Compact housing simplifies installation.
• Reliable operation across a wide temperature range.
• Fast switching response for automated machinery.
• Standard M12 connector facilitates maintenance and replacement.

Industry-Specific Usage Examples

Automotive Production Lines

The Omron E2E-X6C112-M1 Inductive Proximity Sensor can detect metallic fixtures and workpiece carriers moving between robotic assembly cells.

Packaging Equipment

The sensor can verify machine positions during carton forming, sealing, and transport processes.

Machine Building

Equipment manufacturers frequently use inductive sensors to monitor moving machine components and verify actuator positions.

Logistics Automation

Automated conveyor systems may use the sensor to identify metal carriers, stops, and transfer mechanisms.

Factors to Consider When Selecting the Product

• Required sensing distance and target size.
• Available installation space.
• Output type compatibility with the control system.
• Environmental protection requirements.
• Connection method preferences.
• Required switching frequency.
• Target material characteristics.
• Mechanical mounting constraints.

When specifying the Omron E2E-X6C112-M1 Inductive Proximity Sensor, engineers should evaluate the dimensions of the detected object and verify that the sensing distance aligns with the application’s operational requirements.

Frequently Asked Questions

What type of sensor is the Omron E2E-X6C112-M1?

It is an inductive proximity sensor designed for non-contact detection of metallic objects.

What is the sensing distance?

The nominal sensing distance is 6 mm.

Which output configuration does it use?

The sensor provides an NPN normally open output.

What supply voltage is required?

It operates with a DC supply voltage between 10 VDC and 30 VDC.

Is the sensor suitable for washdown environments?

Yes. Its IP67 and IP69K protection ratings support operation in demanding industrial environments.

What connection type is provided?

The sensor uses a standard M12 connector interface.

Can the sensor detect non-metallic materials?

No. The sensing principle is intended for metallic targets.

What industries commonly use this sensor?

Automotive manufacturing, packaging, logistics automation, machinery production, and material handling systems frequently use this device.

Why is the Omron E2E-X6C112-M1 Inductive Proximity Sensor suitable for automation systems?

Its non-contact operation, compact size, high switching frequency, and industrial protection ratings support reliable integration into automated equipment.
