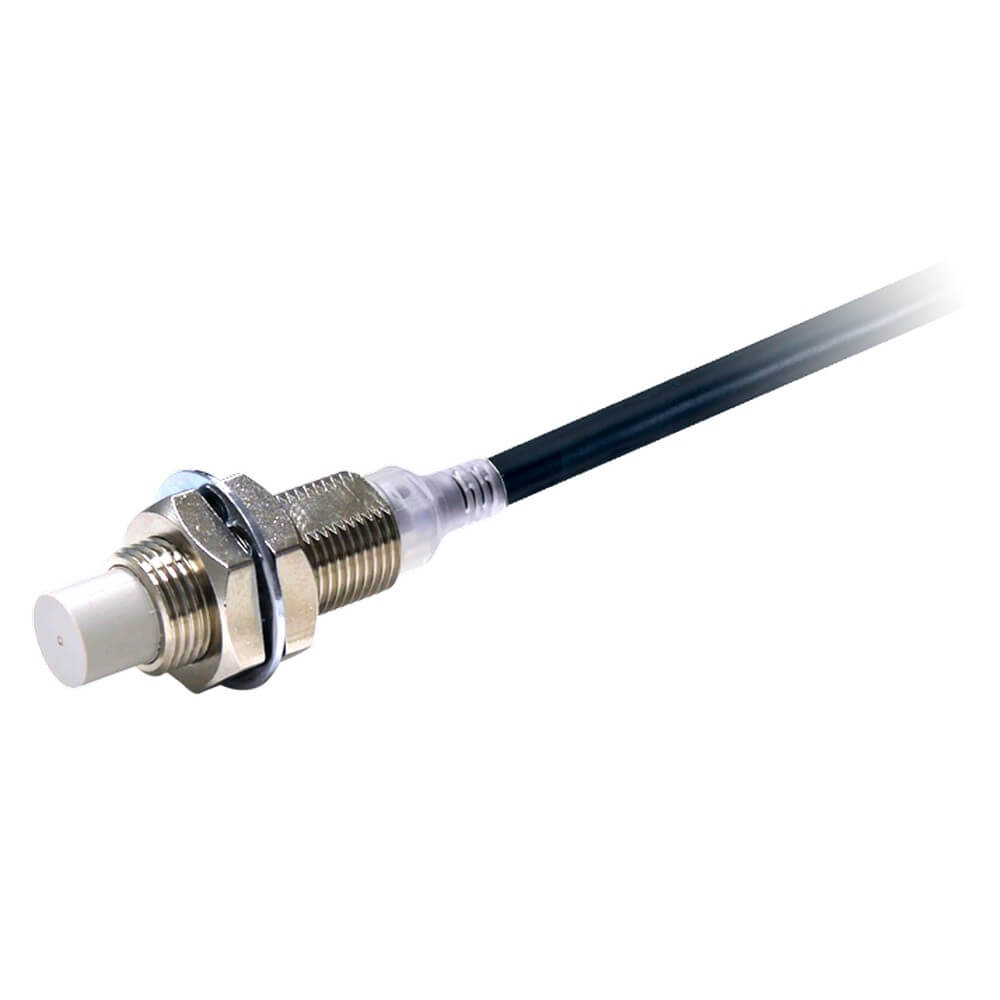

Omron E2E-X5MC212 5M Inductive Proximity Sensor
| Feature | Value |
|---|---|
| Sensor Type | Inductive Proximity Sensor |
| Series | E2E NEXT |
| Sensing Distance | 5 mm |
| Housing Size | M12 |
| Mounting Type | Non-flush (Unshielded) |
| Output Type | NPN |
| Operation Mode | Normally Closed (NC) |
| Connection Method | 5 m Cable |
| Housing Material | Nickel-plated Brass |
| Protection Rating | IP67 / IP69K |
| Operating Voltage | 10 to 30 VDC |
| Response Frequency | 800 Hz |
| Operating Temperature | -40°C to 85°C |
The Omron E2E-X5MC212 5M Inductive Proximity Sensor is designed for non-contact metal detection in industrial automation systems. As part of the E2E NEXT family, this sensor combines extended sensing distance, durable construction, and resistance to harsh industrial environments. The M12 cylindrical housing enables straightforward installation in machinery, production equipment, and material handling systems where reliable position detection is required.
Technical Description
The Omron E2E-X5MC212 5M Inductive Proximity Sensor uses an electromagnetic field to detect metallic targets within a nominal sensing distance of 5 mm. Its unshielded design provides increased sensing performance compared to flush-mounted alternatives. The sensor features a nickel-plated brass housing that offers mechanical durability and resistance to industrial contaminants.
The integrated 5-meter cable simplifies installation in applications where the control cabinet or PLC input module is located at a considerable distance from the sensing point.
Working Principle
The sensor generates a high-frequency electromagnetic field from its sensing face. When a metallic object enters the sensing zone, eddy currents are induced within the target material. These currents absorb energy from the oscillation circuit and alter its amplitude.
The internal detection circuitry continuously monitors these changes and switches the NPN output accordingly. The normally closed configuration means the output state changes when a metal object is detected within the specified sensing range.
The Omron E2E-X5MC212 5M Inductive Proximity Sensor is particularly suitable for applications requiring reliable detection without mechanical contact, reducing wear and maintenance requirements.
Typical Areas of Use
- Automated assembly lines
- Packaging machinery
- Conveyor positioning systems
- Machine tool monitoring
- Automated storage equipment
- Industrial robotics
- Transfer and indexing systems
- Material handling stations
Industrial Applications
Manufacturing Automation
Production facilities use inductive sensors to verify component positions, detect machine movements, and monitor process sequences. The extended sensing distance helps improve installation flexibility.
Packaging Equipment
Packaging systems rely on proximity sensors for carton positioning, actuator monitoring, and indexing control. The IP67 and IP69K protection ratings support operation in washdown environments.
Metal Processing
The Omron E2E-X5MC212 5M Inductive Proximity Sensor can be integrated into metal fabrication equipment for workpiece detection, machine positioning, and safety monitoring functions.
Advantages
- 5 mm sensing distance for improved mounting flexibility
- Unshielded construction for extended detection capability
- Oil-resistant cable construction
- High environmental protection ratings
- Robust nickel-plated brass housing
- Wide operating temperature range
- Fast 800 Hz response frequency
- Suitable for demanding industrial conditions
Sector-Specific Examples
- Automotive assembly lines detecting fixture positions
- Food processing machinery monitoring mechanical actuators
- Warehouse automation systems tracking shuttle positions
- Packaging plants verifying machine cycle completion
- Metalworking equipment detecting workpiece presence
- Conveyor systems monitoring pallet movement
Selection Considerations
When selecting an inductive proximity sensor, engineers should evaluate the required sensing distance, mounting configuration, output type, environmental conditions, cable length requirements, and available installation space.
The Omron E2E-X5MC212 5M Inductive Proximity Sensor is suitable for applications requiring an M12 sensor with NPN normally closed output and extended cable routing.
Additional information about Omron sensor products can be useful when comparing sensing technologies for automation projects.
Frequently Asked Questions
What type of sensor is the Omron E2E-X5MC212 5M Inductive Proximity Sensor?
It is an inductive proximity sensor designed to detect metallic objects without physical contact.
What is the sensing distance?
The nominal sensing distance is 5 mm.
What output configuration does it use?
The sensor provides an NPN normally closed output.
Is the sensor shielded?
No. It is a non-flush, unshielded model.
What protection ratings are available?
The sensor is rated IP67, IP67G, and IP69K.
What cable length is supplied?
The sensor is equipped with a 5-meter integrated cable.
Can it be used in oil-exposed environments?
Yes. The cable construction is oil-resistant and suitable for many industrial environments.
Which industries commonly use this sensor?
It is widely used in manufacturing, packaging, logistics, robotics, and metal processing applications.
