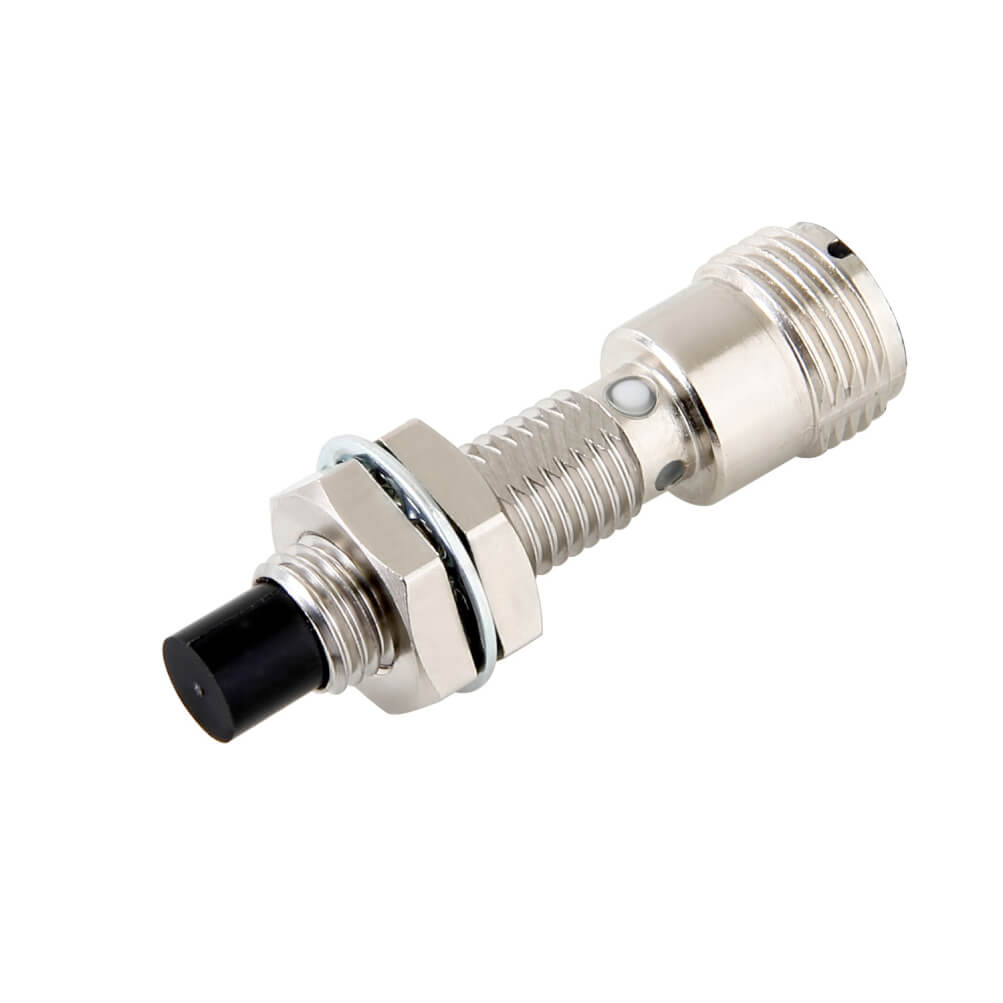

Omron E2E-X4MC28-M1 Inductive Proximity Sensor

The Omron E2E-X4MC28-M1 Inductive Proximity Sensor is designed for reliable non-contact detection of metallic objects in industrial automation systems. Featuring a compact M8 stainless-steel housing and a 4 mm sensing distance, this sensor is suitable for installations where space is limited but stable detection performance is required. The non-flush sensing design provides an extended sensing range compared to shielded alternatives while maintaining dependable operation in demanding industrial environments.

Technical Description

The Omron E2E-X4MC28-M1 Inductive Proximity Sensor belongs to the E2E NEXT series, which is developed for industrial position sensing and object detection tasks. The sensor uses an inductive sensing principle to detect ferrous metal targets without physical contact. It incorporates a three-wire DC configuration with an NPN normally closed output and operates within a 10 to 30 VDC supply range.

The stainless-steel housing enhances resistance against mechanical wear and environmental exposure. The sensor is rated IP67 and IP69K, making it suitable for applications exposed to water spray, dust, cleaning processes, and harsh production conditions.

Working Principle

The Omron E2E-X4MC28-M1 Inductive Proximity Sensor generates a high-frequency electromagnetic field at its sensing face. When a conductive metal object enters this field, eddy currents are induced within the target material. These currents reduce the oscillation amplitude inside the sensing circuit.

The internal electronics continuously monitor these changes and switch the output when the detection threshold is reached. Because the sensing process relies on electromagnetic interaction rather than mechanical contact, the sensor experiences minimal wear and provides consistent operation over long service intervals.

Typical Areas of Use

The Omron E2E-X4MC28-M1 Inductive Proximity Sensor is commonly integrated into automated machinery where accurate metal detection is required.

• Assembly equipment
• Packaging machinery
• Conveyor positioning systems
• Robotic handling stations
• Material transfer systems
• CNC machining centers
• Automated inspection equipment
• Machine tool position monitoring

Its compact dimensions allow installation in confined mounting locations where larger sensors cannot be accommodated.

Industrial Applications

In automotive production facilities, the sensor can verify the presence of metal brackets and chassis components before the next manufacturing step begins. In machining operations, it can monitor fixture positioning and confirm tool carriage locations.

Within packaging systems, the sensor may be used to detect metallic machine elements and actuator positions that coordinate product movement. In logistics automation, it can support position feedback mechanisms on transfer equipment and sorting machinery.

Advantages of the Sensor

• Non-contact detection minimizes mechanical wear.
• Compact M8 housing supports installation in restricted spaces.
• 4 mm sensing distance provides reliable metal detection.
• IP67 and IP69K protection supports harsh industrial environments.
• Wide operating temperature range allows outdoor and indoor use.
• High response frequency supports dynamic automation processes.
• Stainless-steel construction improves durability.
• M12 connector simplifies maintenance and replacement procedures.

Industry-Specific Examples

Automotive Manufacturing

The sensor can verify the position of metal workpieces before robotic welding operations.

Food Processing Equipment

Its high protection rating allows installation on machinery that undergoes regular washdown procedures.

Machine Building

Equipment manufacturers can use the sensor to monitor moving mechanical assemblies and end-position conditions.

Metal Fabrication

Production lines can employ the sensor for material presence verification before processing operations begin.

Factors to Consider During Product Selection

When selecting an inductive proximity sensor, engineers should evaluate the target material, required sensing distance, available installation space, environmental conditions, and electrical interface requirements.

The Omron E2E-X4MC28-M1 Inductive Proximity Sensor is particularly suitable when a compact M8 format, NPN NC output, and extended environmental protection are required. Attention should also be given to connector compatibility and control system input specifications.

For additional industrial sensing options, engineers can review Omron sensor products and related sensing technologies.

The Omron E2E-X4MC28-M1 Inductive Proximity Sensor is frequently selected for automated equipment where reliable metal detection and long-term operational stability are important design considerations. The combination of compact dimensions, environmental resistance, and fast response characteristics makes the Omron E2E-X4MC28-M1 Inductive Proximity Sensor suitable for a broad range of industrial automation tasks.

Frequently Asked Questions

What type of sensor is the E2E-X4MC28-M1?

It is an inductive proximity sensor designed for non-contact detection of metallic objects.

What is the sensing distance?

The rated sensing distance is 4 mm.

What output configuration does it use?

The sensor provides an NPN normally closed (NC) output.

What supply voltage is required?

It operates from 10 to 30 VDC.

Can it be used in washdown environments?

Yes. The IP67 and IP69K ratings support use in demanding cleaning and washdown applications.

What connector type is provided?

The sensor uses an M12 connector interface.

Which materials can it detect?

It is designed primarily for detecting metallic targets, especially ferrous metals.

What is the maximum response frequency?

The sensor supports a response frequency of up to 1 kHz.

Is it suitable for outdoor installations?

The wide operating temperature range and high protection rating make it suitable for many outdoor industrial applications.

What housing material is used?

The housing is manufactured from stainless steel (SUS303).
